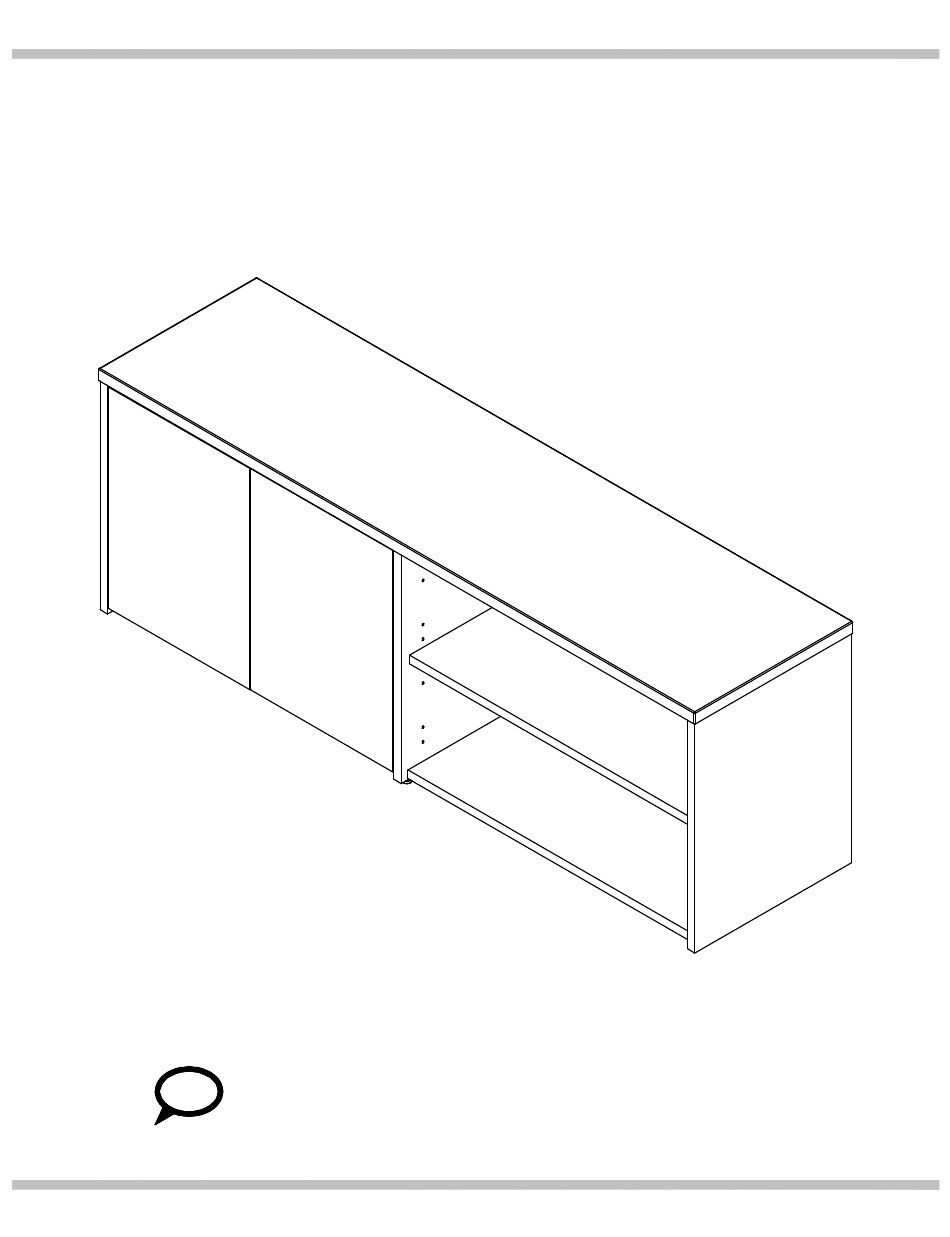

- Page 1 ASSEMBLY INSTRUCTIONS Low Storage Return Lot Code # NEED HELP? Call 1−800−950−4782 www.bushbusinessfurniture.com Part Number A191423 Keep manual for future reference.
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION A191423 WARNING WARNING WARNING This product is designed and Units must be assembled with the Do not move unit when loaded. intended for use with computer, fax, Doing so could cause instability, instructions, parts and hardware and printer equipment only. Improper product collapse, tip over, and/or provided. -
Page 3: Exploded View
EXPLODED VIEW A191423... -
Page 4: Parts List
PARTS LIST A191423 JTS160FWWH LABEL CODE PART NUMBER DESCRIPTION W191424 TOP SHELF W191425 BOTTOM SHELF W191426 LEFT SIDE PANEL W191427 RIGHT SIDE PANEL W191428 PARTITION W191429 BACK PANEL W191397 DOOR W191430 ADJUSTABLE SHELF JTS160SGWH LABEL CODE PART NUMBER DESCRIPTION W191424... -
Page 5: Fasteners / Hardware
FASTENERS / HARDWARE A191423 Fasteners are shown in actual size. los fijadores son demonstrados en su tamaño actual. les attaches sont montrées dans l'échelle grandeur. [ 23 ] H171556 [ 27 ] H181468US Quickfit TL4 KD Cam3000 [ 12 ] H28917 [ 2 ] H191411... - Page 6 MODEL SPECIFIC A191423 JTS160FWWH BODY [ 8 ] H73619 Cover Cap [ 7 ] H73620 ACCENT Cover Cap JTS160SGWH [ 8 ] H73619 BODY Cover Cap [ 7 ] H92521 ACCENT Cover Cap JTS160SG [ 15 ] H92521 Cover Cap...
- Page 7 ATTENTION A191423 Common assembly techniques. Técnica común de ensamblaje. Techniques communes d’assemblage. MAY HAVE TO SQUEEZE PLASTIC TO INSERT INTO HOLE. PUEDE TENER QUE APRETAR PLÁSTICO PARA INSERTAR EN EL AGUJERO. PEUT AVOIR À PRESSER EN PLASTIQUE À INSÉRER DANS LE TROU. 190°...
- Page 8 A191423 STEP [ 8 ] H171556 [ 6 ] H184043 Quickfit TL4 Leveler Safety glasses Gafas de seguridad Lunettes de protection Orientation Orientación L’orientation...
- Page 9 A191423 STEP [ 2 ] [ 2 ] H191411 H191411 [ 4 ] H181468US Double Ended KD 66 Double Ended KD 66 KD Cam3000 190° Minimum...
- Page 10 A191423 STEP [ 6 ] H171556 Quickfit TL4...
- Page 11 A191423 STEP [ 2 ] BODY [ 6 ] H181468US Cover Cap KD Cam3000 190° Minimum An assistant may be required. Un asistente puede ser necesario. L’aide d’une autre personne peut s’averer necessaire.
- Page 12 A191423 STEP [ 2 ] [ 4 ] H181468US ACCENT Cover Cap KD Cam3000 190° Minimum 190° Minimum...
- Page 13 A191423 STEP [ 2 ] [ 4 ] H181468US ACCENT Cover Cap KD Cam3000 190° Minimum 190° Minimum...
- Page 14 A191423 STEP [ 9 ] H171556 Quickfit TL4...
- Page 15 A191423 STEP [ 6 ] [ 9 ] H181468US BODY Cover Cap KD Cam3000 [ 3 ] ACCENT Cover Cap 190° Minimum ACCENT ACCENT An assistant may be required. Un asistente puede ser necesario. L’aide d’une autre personne peut s’averer necessaire.
- Page 16 A191423 STEP [ 8 ] [ 8 ] H126396 H23604 Shelf Pin Shelf Pin Sleeve...
- Page 17 A191423 STEP [ 2 ] H191520 [ 4 ] H126757 H28917 [ 12 ] Handle #8 x .5" Hinge [ 2 ] H77351 Bumper...
- Page 18 A191423 STEP Go to step 12 Ir al paso 12 Aller à l'étape 12 Go to step 13 Ir al paso 13 Aller à l'étape 13...
- Page 19 A191423 STEP [ 4 ] H126758 Mounting Plate Go to step 14 Ir al paso 14 Aller à l'étape 14...
- Page 20 A191423 STEP [ 4 ] H126758 Mounting Plate...
- Page 21 A191423 STEP...
- Page 22 HINGE MOUNTING 1, 2, 3 Align set screw with slot (A) and slot (B) with screw Alinee el tornillo de fijación con la ranura (A) y la ranura (B) con el tornillo Aligner la vis sans tête avec la fente (A) et la fente (B) avec la vis Set screw Screw Slide hinge into position and tighten...
- Page 23 IMPORTANT SAFETY INFORMATION A191423 Maximum Weight: 200 Lbs. Peso Máximo: 200 Libras Poids Maximum: 90.7 kilogramme Maximum Weight: 50 Lbs. Peso Máximo: 50 Libras Poids Maximum: 22.7 kilogramme Maximum Weight: 50 Lbs. Peso Máximo: 50 Libras Poids Maximum: 22.7 kilogramme...
