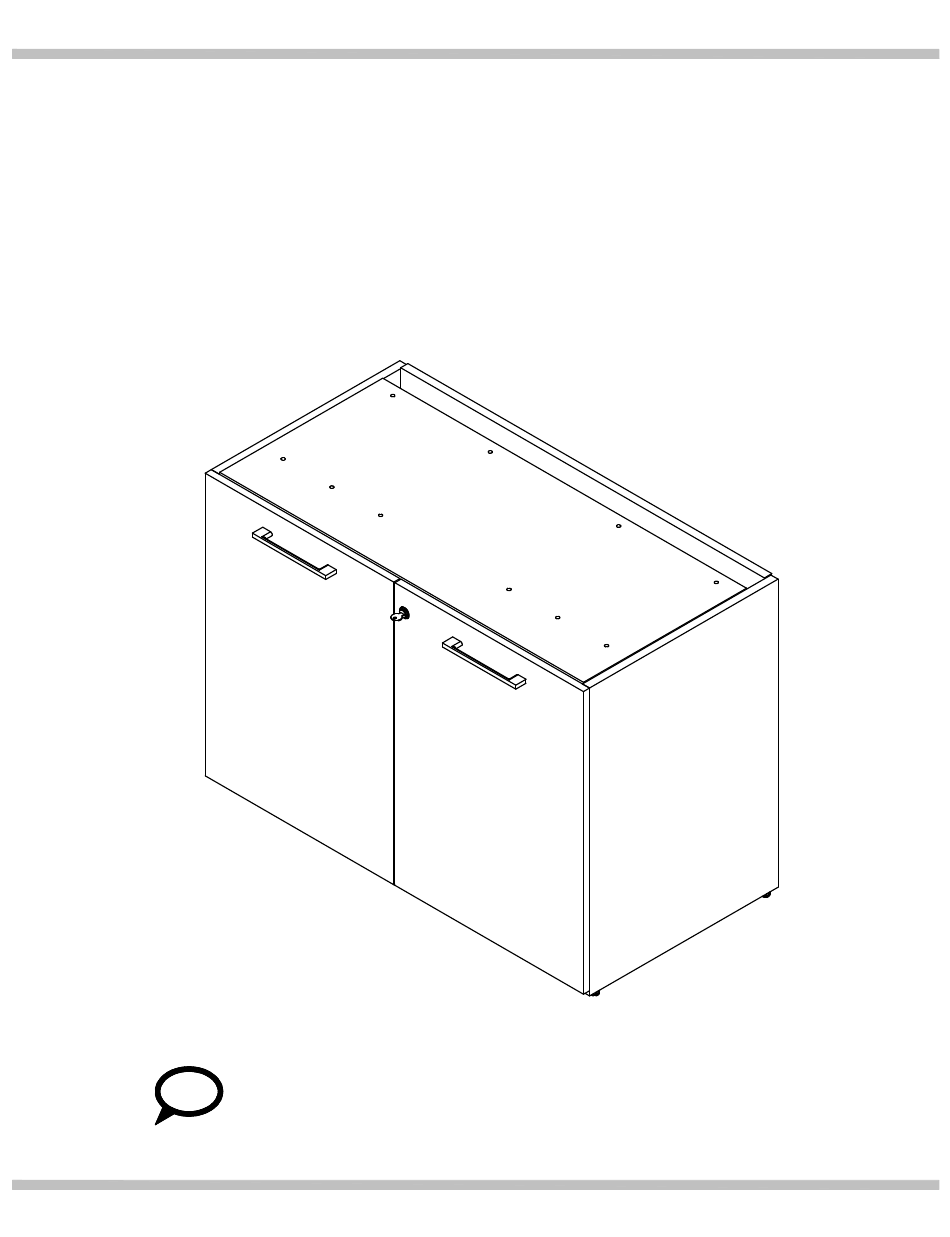

- Page 1 ASSEMBLY INSTRUCTIONS 40" WIDE STORAGE CABINETTE W / DOORS Lot Code # NEED HELP? Call 1−800−950−4782 www.bushbusinessfurniture.com Part Number A175419A Keep manual for future reference.
- Page 2 IMPORTANT SAFETY INFORMATION A175419A WARNING Do not move unit when loaded. Doing so could cause instability, product collapse, tip over, and/or serious injury. No mueva la unidad cuando esté cargada. Hacerlo puede causar inestabilidad, que el producto se derrumbe, que se la caiga encima y/o heridas (golpes) serias.
- Page 3 EXPLODED VIEW A175419A 22SD40AC 22SD40MC Case Assembly [ 1 ] Case Assembly [ 1 ] [ 1 ] S172300 [ 1 ] S172290 [ 1 ] [ 1 ] S172292 S172302 22SD40MR 22SD40CS [ 1 ] Case Assembly Case Assembly [ 1 ] [ 1 ] S172310...
- Page 4 FASTENERS /HARDWARE A175419A Fasteners are shown in actual size. los fijadores son demonstrados en su tamaño actual. les attaches sont montrées dans l'échelle grandeur. [ 4 ] H23370 #10 x 1-1/4" [ 3 ] H135637 Wood Dowel [ 4 ] H83027 M4 x 22mm [ 2 ]...
- Page 5 A175419A STEP Remove [ 4 ] Remueva Retirer Shelf Hold-Down...
- Page 6 A175419A STEP [ 3 ] H135637 Wood Dowel CPR, COR, CNR, CMR, CLR, CKR Left mounting option Right mounting option Opción para montura izquierda Opción para montura derecha Option gauche de montage Option droite de montage...
- Page 7 A175419A STEP [ 4 ] H23370 #10 x 1-1/4" Assemble in final location. Favor de instalar en su lugar destinado. Assemblez el l'emplacement final. Left mounting option Opción para montura izquierda Option gauche de montage Right mounting option Opción para montura derecha Option droite de montage...
- Page 8 A175419A STEP Maximum Weight: 83 Lbs. Peso Máximo: 83 Libras Poids Maximum: 37.6 kilogramme Maximum Weight: 129 Lbs. Peso Máximo: 129 Libras Poids Maximum: 58.5 kilogramme...
