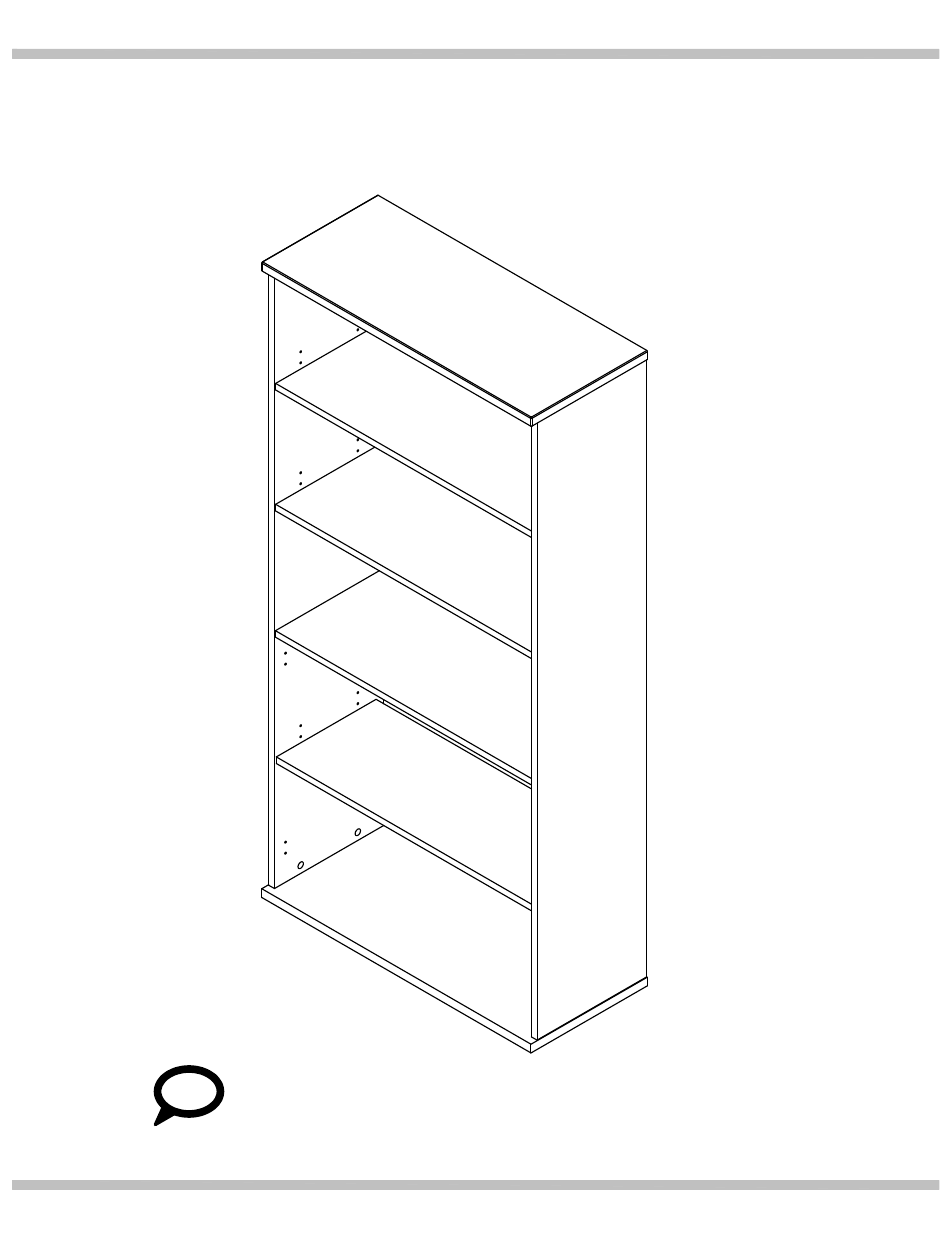

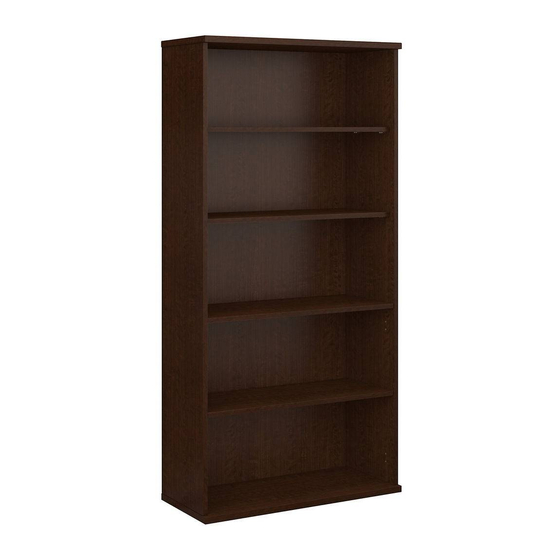

- Page 1 ASSEMBLY INSTRUCTIONS 36" BOOKCASE Lot Code # NEED HELP? Call 1−800−950−4782 www.bushfurniture.com Part Number A173226A Keep manual for future reference.
-
Page 2: Important Safety Information
A173226A IMPORTANT SAFETY INFORMATION WARNING WARNING Do not move unit when loaded. Do not load unit without properly Doing so could cause instability, attaching back panel. Doing so could product collapse, tip over, and/or cause instability, product collapse, serious injury. and/or serious injury. -
Page 3: Exploded View
A173226A EXPLODED VIEW... -
Page 4: Parts List
A173226A PARTS LIST WC12914 WC24414 A [1] W128019 E [1] W145774 A [1] W96095 E [1] W145779 B [1] W173211 F [3] W166112 B [1] W173213 F [3] W166114 C [1] W173212 H [1] W145775 C [1] W173214 H [1] W145780... -
Page 5: Fasteners / Hardware
FASTENERS / HARDWARE A173226A Fasteners are shown in actual size. los fijadores son demonstrados en su tamaño actual. les attaches sont montrées dans l'échelle grandeur. [ 12 ] H71659 [ 12 ] H72988 KD Bolt KD Cam [ 49 ] H34174 [ 12 ] H23604... - Page 6 A173226A MODEL SPECIFIC WC12914 [ 8 ] H63904 [ 12 ] H73621 Cover Cap WC24414 [ 8 ] H96110 [ 12 ] H95137 Cover Cap WC36714 [ 8 ] H107309 [ 12 ] H107306 Cover Cap WC48514 [ 8 ]...
- Page 7 A173226A ATTENTION Common assembly techniques. Técnica común de ensamblaje. Techniques communes d’assemblage. −Use a screwdriver with H72988. −Favor de usar un desarmador con el tornillo H72988. −Utilisez un tournevis avec H72988. −Wood dowel installation. −Instalación del tornillo de madera. −Installation de chevilles de bois. −Panel to panel attachment.
- Page 8 A173226A STEP [ 4 ] H72988 KD Bolt H63904 H96110 H107309 [ 8 ] H92522 H100012 H154023 H96670 KD BOLT COVER CAP...
- Page 9 A173226A STEP [ 2 ] H71659 KD Cam H73621 H95137 [ 2 ] H107306 H92520 H87676 Cover Cap H147487 H73620...
- Page 10 A173226A STEP [ 2 ] H71659 KD Cam H73621 H95137 H107306 [ 2 ] H92520 H87676 Cover Cap H147487 H73620...
- Page 11 A173226A STEP [ 8 ] H72988 KD Bolt...
- Page 12 A173226A STEP [ 4 ] H71659 KD Cam H73621 H95137 H107306 [ 4 ] H92520 H87676 Cover Cap H147487 H73620...
- Page 13 A173226A STEP [ 4 ] H71659 KD Cam H73621 H95137 H107306 [ 4 ] H92520 H87676 Cover Cap H147487 H73620...
- Page 14 A173226A STEP [ 49 ] H34174 Nail 19mm Safety glasses gafas de seguridad Lunettes de protection 1/16" 1/16" WARNING Ne pas charger le produit No cargue esta unidad sin el Do not load unit without sans attacher correctement le panneau arrière. Faire panel de atrás.
- Page 15 A173226A STEP [ 12 ] H23604 Shelf Pin H126396 [ 12 ] H126396 Shelf Pin Sleeve H23604 Maximum Weight: 0 Lbs. Peso Máximo: 0 Libras Poids Maximum: 0 kilogramme Maximum Weight: 50 Lbs. Peso Máximo: 50 Libras Poids Maximum: 22.7 kilogramme...
- Page 16 THIS PAGE INTENTIONALLY LEFT BLANK...
