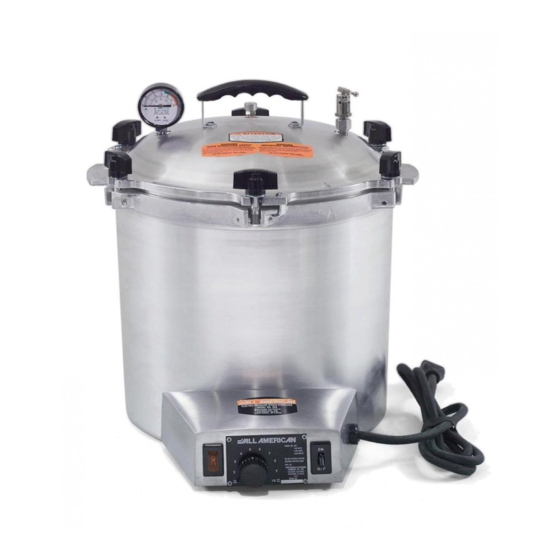

All American 25X-120 Operating Instructions Manual

All American 25X-120 Operating Instructions Manual

Electric pressure steam sterilizer
Hide thumbs Also See for 25X-120:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Model 25X Electric Pressure Steam Sterilizer
CAUTION! READ THESE IMPORTANT SAFEGUARDS!
FAILURE TO FOLLOW INSTRUCTIONS AND/OR
IMPROPER USE MAY RESULT IN SCALDING,
BODILY INJURIES OR EXPLOSION.
When using the pressure steam sterilizer, basic
safety precautions should always be followed:
1. Read and understand instruction manual before
operating unit.
2. Do not touch hot surfaces. Use handles and pot
holders.
3. Close supervision is necessary when the
sterilizer is used near children.
4. Extreme caution must be used when moving a
sterilizer containing hot liquids.
5. Do not use the sterilizer for other than intended
use.
REV 4/09
OPERATING INSTRUCTIONS
25X shown with optional support base, Part No. 2180
6. Always check the pressure release devices for
clogging before use.
7. This sterilizer operates under pressure.
Improper use may result in scalding injury.
Make certain unit is properly closed before
operating. Read Operating Instructions.
8. Never loosen wing nuts until the steam pressure
gauge registers zero and you have allowed any
remaining pressure to escape by opening the
control valve (lever in the vertical position).
9. Do not open the sterilizer until the unit has
cooled and internal pressure has been reduced.
Gauge should read zero at this time. Read
Operating Instructions.
10.Never use the sterilizer for cooking or
processing food.
11.Never place oil in or on this sterilizer.
12. Do not subject your sterilizer to sudden extreme
temperature changes, as this will cause
expansion or contraction which can crack a cast
aluminum utensil. Do not move a sterilizer from a
cold storage area directly onto a hot flame or
element. Do not add cold water to a sterilizer
which has boiled dry and is still hot. Do not cool
the sterilizer suddenly by pouring cold water on it
or wrapping cold wet towels around it.
13. Always operate sterilizers on surfaces that will
not be damaged by heat. We recommend the use
of our support base. See page 5, item 6.
14. As in all clinical laboratory settings, wear safety
glasses when attending to your sterilizer.
SAVE THESE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 25X-120 and is the answer not in the manual?

Questions and answers

Summary of Contents for All American 25X-120

  • Page 1 OPERATING INSTRUCTIONS Model 25X Electric Pressure Steam Sterilizer 25X shown with optional support base, Part No. 2180 CAUTION! READ THESE IMPORTANT SAFEGUARDS! FAILURE TO FOLLOW INSTRUCTIONS AND/OR 6. Always check the pressure release devices for 12. Do not subject your sterilizer to sudden extreme IMPROPER USE MAY RESULT IN SCALDING, clogging before use.
  • Page 2 Operating Instructions for Model 25X Electric Pressure Steam Sterilizer IMPORTANT: DO NOT OPERATE THIS PRESSURE STEAM STERILIZER UNTIL YOU HAVE THOROUGHLY READ THESE OPERATING INSTRUCTIONS. Cleaning Overpressure Plug #1010 Excess Pressure Relief Valve Geared Steam Gauge When you are done using your sterilizer, you #2050CS # 72S need to empty the water from the unit, rinse...
  • Page 3 Bakelite Top Handle Control Valve Geared Steam Gauge # 72S Excess Overpressure Pressure Plug Relief Valve #1010 #2050CS Air Exhaust Tube #2155-25 Aluminum Inner Container #2156 Rack #111 Support Stand #2151 NOTE: Opening fits over heating elements. Optional Support Base #2180 On/Off switch #2153...
  • Page 4: Operation

    OPERATION If the water you have placed in the unit is cold, it Lever vertical will require approximately 35 minutes before or open Lever horizontal 1. LUBRICATE METAL-TO-METAL SEAL. steam begins escaping from the control valve. or closed Apply lubrication to the point or edge where Since it requires more time to bring cold water up side wall and bevel meet on the inside of to operating temperature than it takes warm or hot...
  • Page 5 wing nuts evenly by turning two opposite Calibration Instructions wing nuts counter-clockwise at one time. The wing nuts, side handles and top handle will for No. 2159 Thermostat be hot. Always use hot pads when handling. Model 25X All-American Having removed all wing nuts from the slots Pressure Sterilizer in the cover, use the top handle to lift the cover slightly, turning the cover counter-...
  • Page 6: Maintenance

    MAINTENANCE: 3. CONTROL VALVE, PART NO. 65. (See Fig. 2 & 5. EXCESS PRESSURE RELIEF VALVE, PART NO. 3) To ensure long life and proper operation of 2050CS. (See Fig. 6) This sterilizer is 1. METAL-TO-METAL SEAL. (See Fig. 1) the control valve, periodic cleaning is recom- equipped with a new type of excess pressure mended.
  • Page 7 7. OVERPRESSURE PLUG, PART NO. 1010. How Part No. 2050CS This ALL-AMERICAN Sterilizer is equipped with an additional safety device which is the Works Overpressure Plug, Part No. 1010. The Closed purpose of the overpressure plug is to offer an extra margin of safety whenever the sterilizer is used.
  • Page 8 IMPORTANT STERILIZATION FACTS Steam is an ideal sterilizing agent since Item 5, page 3, regarding "exhausting" to PRESSURE GAUGE ACCURACY: The it kills microbes quickly, and steam has remove trapped air.) gauges are rated as having an accuracy the additional important property of self- of 3%-2%-3%.
  • Page 9: Specifications

    Model 25X (25 qt/24 liter) Model 50X (25 qt/24 liter) Model 75X (41 qt/39 liter) Model 25X-120: 120 Volt, 50/60 Hz 1050 watts/8.75 amps Model 50X-120: 120 Volt, 50/60 Hz 1650 watts/13.75 amps Model 75X-120: 120 Volt, 50/60 Hz 1650 watts/13.75 amps Model 25X-240: 240 Volt, 50/60 Hz 1050 watts/4.38 amps...
  • Page 11 ALL-AMERICAN 25X PRESSURE STEAM STERILIZER PARTS LIST Part No. Description Clamp bolt Pin for clamp bolt Bakelite wing nut Control valve Geared steam gauge Lens for steam gauge (replacement) Bakelite top handle Bakelite top handle screw Retaining bayonet clamp Retaining bayonet clamp screw Rack fits inside aluminum container 1010 Overpressure plug for sterilizer, red color...
  • Page 12: Important - Please Read

    ALL-AMERICAN PRESSURE STEAM STERILIZER LIMITED WARRANTY This quality sterilizer is designed and manufactured to provide many years of satisfactory performance under normal use. Wisconsin Aluminum Foundry pledges to the original owner that should there be any defects in material or workmanship during the first year after purchase, we will repair or replace it at our option.
  • Page 13: Instrucciones De Operación

    INSTRUCCIONES DE OPERACIÓN Modelos 25X Esterilizadores eléctricos de vapor a presión 25X Ver lo con una base de soporte opcional, Parte No. 2180 ¡CUIDADO! ¡LEA ESTAS IMPORTANTES NORMAS DE SEGURIDAD! CUANDO ESTE USANDO EL ESTERILIZADOR quemaduras. Antes de operar este seguro de cual puede causar rajaduras en el utensillo de ELÉCTRICO DE VAPOR A PRESIÓN, LAS que la unidad esta perfectamente cerrada.
  • Page 14 Instrucciones de operación para el esterilizador eléctrico de vapor a presión Modelo 25X. IMPORTANTE: NO OPERE ESTE ESTERILIZADOR ELECTRICO DE PRESION AL VAPOR HASTA QUE HAYA LEIDO TOTALMENTE ESTAS INTRUSIONES DE OPERACIÓN. Limpiando Tapón de Sobrepresión #1010 Válvula de escape por exceso de Manómetro de vapor presión #2050CS Cuando ha terminado de usar el esterilizador,...
  • Page 15 Mango superior de bakelita Válvula de control Manómetro de vapor #72S Tapon de Válvula de escape Sobrepresión por exceso de #1010 presión #2050CS Tubo de escape del aire #2155-25 Recipiente interno de aluminio #2156 Parrilla #111 Estante de soporte #2151 Nota: En la abertura encajan los elementos de calentar.
  • Page 16: Operación

    OPERACIÓN iente preparado dentro del esterilizador. Palanca vertical o abierta Asegúrese de que el canal para el tubo de Palanca horizontal 1. LUBRIQUE EL SELLO DE METAL-A- o cerrada salida de aire (ubicado en el interior del recip- METAL.Lubrique el punto o borde donde el iente) esté...
  • Page 17 de la tapa estarán calientes. Siempre use Instrucciones de almohadillas para objetos calientes cuando calibración para el este operando el esterilizador. Habiendo removido todas las mariposas de las ranuras termostato Nº 2159 - de la tapa levante un poco la tapa y gire la Esterilizador a presión tapa en sentido contrario a las manecillas del reloj para zafarla fácilmente.
  • Page 18: Mantenimiento

    MANTENIMIENTO: 3. VALVULA DE CONTROL, PARTE No. 65. (Ver 5. VALVE DE SEGURIDAD PARA EXCESO DE Fig. 2 & 3) Para asegurar larga vida y PRESION, PARTE NO. 2050CS. 1. SELLO DE METAL-A-METAL. (Ver Fig. 1) operación apropiada de la válvula de control, (Ver Fig.
  • Page 19 7. TAPON PARA SOBRE-PRESION, PARTE NO. El tapón de sobre presión se puede remover Como trabaja la Parte No. 1010. Este esterilizador ALL AMERICAN esta para limpiarlo usando los dedos para halarlo 2050CS? equipado con un aparato adicional de hacia fuera de la abertura por debajo de la seguridad el cual es un tapón de sobre-...
  • Page 20 DATOS IMPORTANTES DE ESTERILIZACIÓN El vapor es un agente ideal en la esteril- sobre "escape" para remover el aire PRESICION DEL MANÓMETRO DE ización porque mata rápidamente los atrapado.) PRESION: Los manómetros están clasifi- microbios, y, además, el vapor tiene una cados por tener una precisión de 3%- Es esencial que el esterilizador sea propiedad importante que es la fuerza de...
  • Page 21 Modelo 25X (25 cuartos/24 litros) Modelo 50X (25 cuartos/24 litros) Modelo 75X (41 cuartos/39 litros) Modelo 25X-120: 120 Volt, 50/60 Hz1050 watts/8.75 amps Modelo 50X-120: 120 Volt, 50/60 Hz1650 watts/13.75 amps Modelo 75X-120: 120 Volt, 50/60 Hz1650 watts/13.75 amps Modelo 25X-240: 240 Volt, 50/60 Hz1050 watts/4.38 amps Modelo 50X-240: 240 Volt, 50/60 Hz1650 watts/6.88 amps...
  • Page 23 LISTA DE PARTES PARA TODOS ESTERILIZADORES AMERICANOS DE VAPOR A PRESION Parte No. Descripción Perno de la abrazadera Pasador para el perno de la abrazadera Mariposa de baquelita Válvula de control Manómetro del vapor del equipo Lentes para el manómetro del vapor (repuesto) Mango de baquelita superior Tornillo del mango de baquelita superior Abrazadera del retenedor bayoneta...
  • Page 24 GARANTIA LIMITADA DEL ESTERILIZADOR DE VAPOR A PRESION ALL-AMERICAN La calidad de este esterilizador fue diseñada y fabricada para proveer muchos años de satisfacción de rendimiento bajo el uso normal. Si durante el primer año después de la compra hay defectos de mano de obra o materiales Wisconsin Aluminum Foundry, al dueño original le reparará o reemplazará...
