PG-F IGHT HANNEL ENTRAL FFICE ERMINAL TART ROUND TART Model List Number Part Number CLEI Code FLC-703 150-1303-42 VACHLHGC-- ECHNOLOGIES NGINEERING LANT ERIES ECHNICAL RACTICE 363-703-142-01 ECTION...
Provisioning is done through the PG-Flex Line Unit Maintenance port. The FLC-703 unit provides metallic test access to the subscriber line connection through an optional metallic bypass pair. Perform metallic bypass testing either manually or through the Pair Gain Test Controller (PGTC).

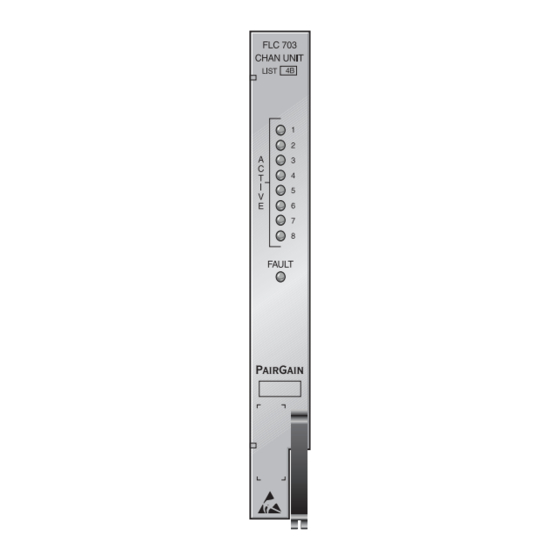

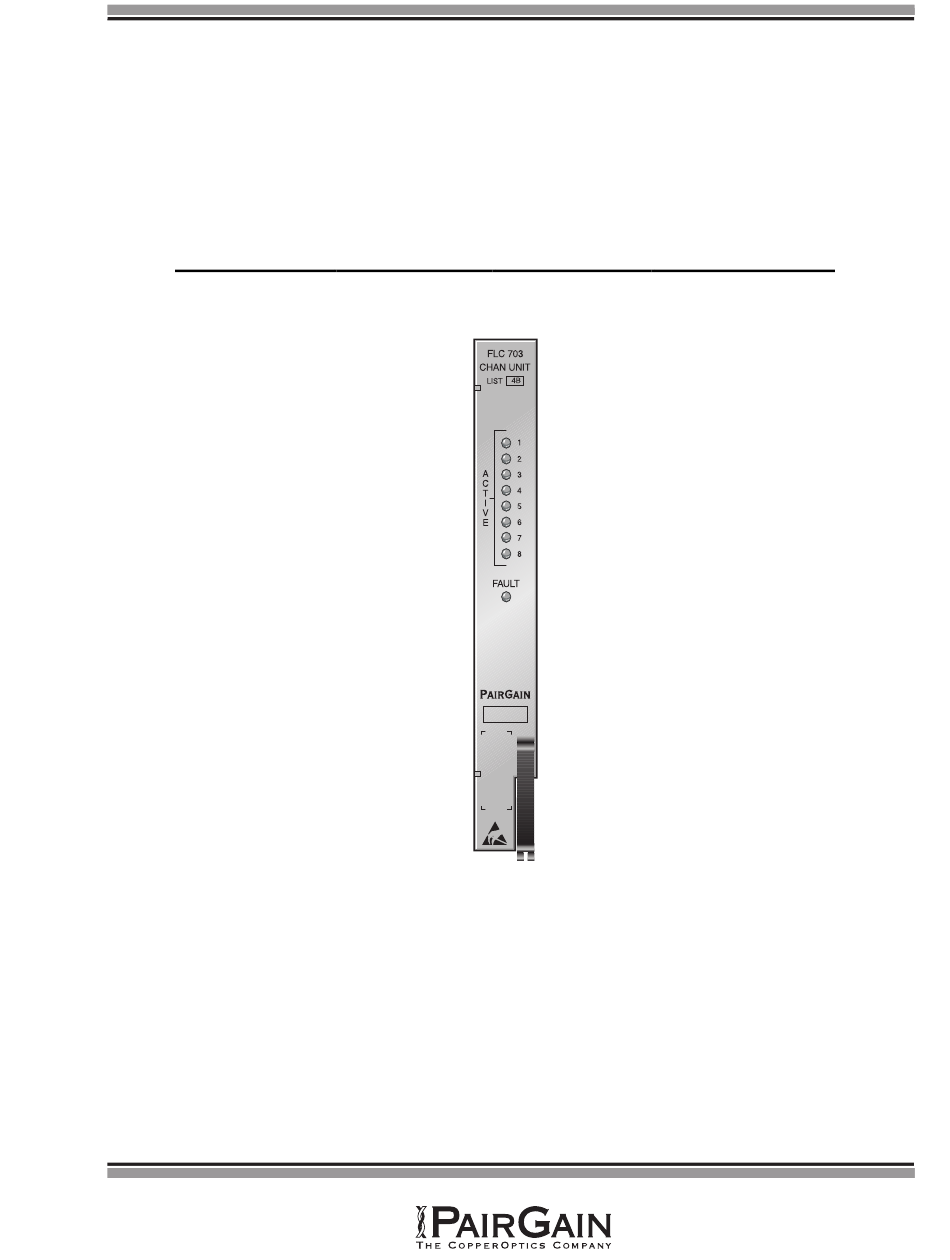

July 30, 1999 Revision 01 2. Front Panel Figure 1 shows the FLC-703 front panel. Table 1 lists the different states and indications for the FLC-703 Channel Unit front panel LEDs. Figure 1. FLC-703 Front Panel Table 1. FLC-703 Front Panel LEDs...
Temperature and Humidity......-40° F to +150° F (-40° C to +65° C) 5% to 95% (non condensing) Physical Weight ............0.8 lb. (0.4 kg) Dimensions Height..........6.75 in. (17.2 cm) Width ..........1.00 in. (2.5 cm) Depth........... 10.50 in. (26.7 cm) FLC-703, List 4B PairGain Engineering - Plant Series Page 3...
Circuit Operation. The following paragraphs define the FLC-703 circuit operation when using loop start for subscriber lines or ground start for PBX lines. Each FLC-703 circuit has an associated LED that indicates when the line is off-hook, idle, ringing, or under test. See Table 1.
Page 7
FRC-753 signals the FLC-703 • FLC-703 operates a Ring ground relay that requests dial tone from the CO (this makes the circuit busy, or seizes it, for outgoing calls to prevent others from using it, i.e., prevents glare where different users can seize a line at the same time) •...
Check the contents versus the packing list to ensure complete and accurate shipment. If the shipment is short or irregular, contact PairGain as described in Section 11. If you must store the equipment for a prolonged period, store the equipment in its original container.
Activate test access through the RS-232 maintenance port located on the front of the COT Line Unit using an ASCII terminal. Table 2 provides PG-Flex system troubleshooting procedures based on indications displayed by the FLC-703 Channel Unit front panel LEDs or customer reported problems. FLC-703, List 4B PairGain Engineering - Plant Series...
Page 10
CO switch. If ringing is present, replace the COT Channel Unit. Test again for ringing at the network interface. If ringing is still not present, contact PairGain technical assistance per section 9. Verify the resistance of the copper loop between the RT Enclosure and Ω.
Engineer through a callback process. This process normally results in a callback within 30 minutes of initiating the request. In addition, PairGain maintains a computer bulletin board system for obtaining current information on PairGain products, product troubleshooting tips and aids, accessing helpful utilities, and for posting requests or questions.
11. Warranty 11.1 PairGain Technologies warrants this product to be free of defects and to be fully functional for a period of 5 years from the date of original shipment, given proper customer installation and regular maintenance. PairGain will repair or replace any unit without cost during this period if the unit is found to be defective for any reason other than abuse or improper use or installation.
Central Office Terminal DTMF Dual Tone Multi Frequency Mechanized Loop Testing Private Branch Exchange Pulse Code Modulation PGTC Pair Gain Test Controller POTS Plain Old Telephone Service Return Material Authorization Remote Terminal FLC-703, List 4B PairGain Engineering - Plant Series Page 11...
