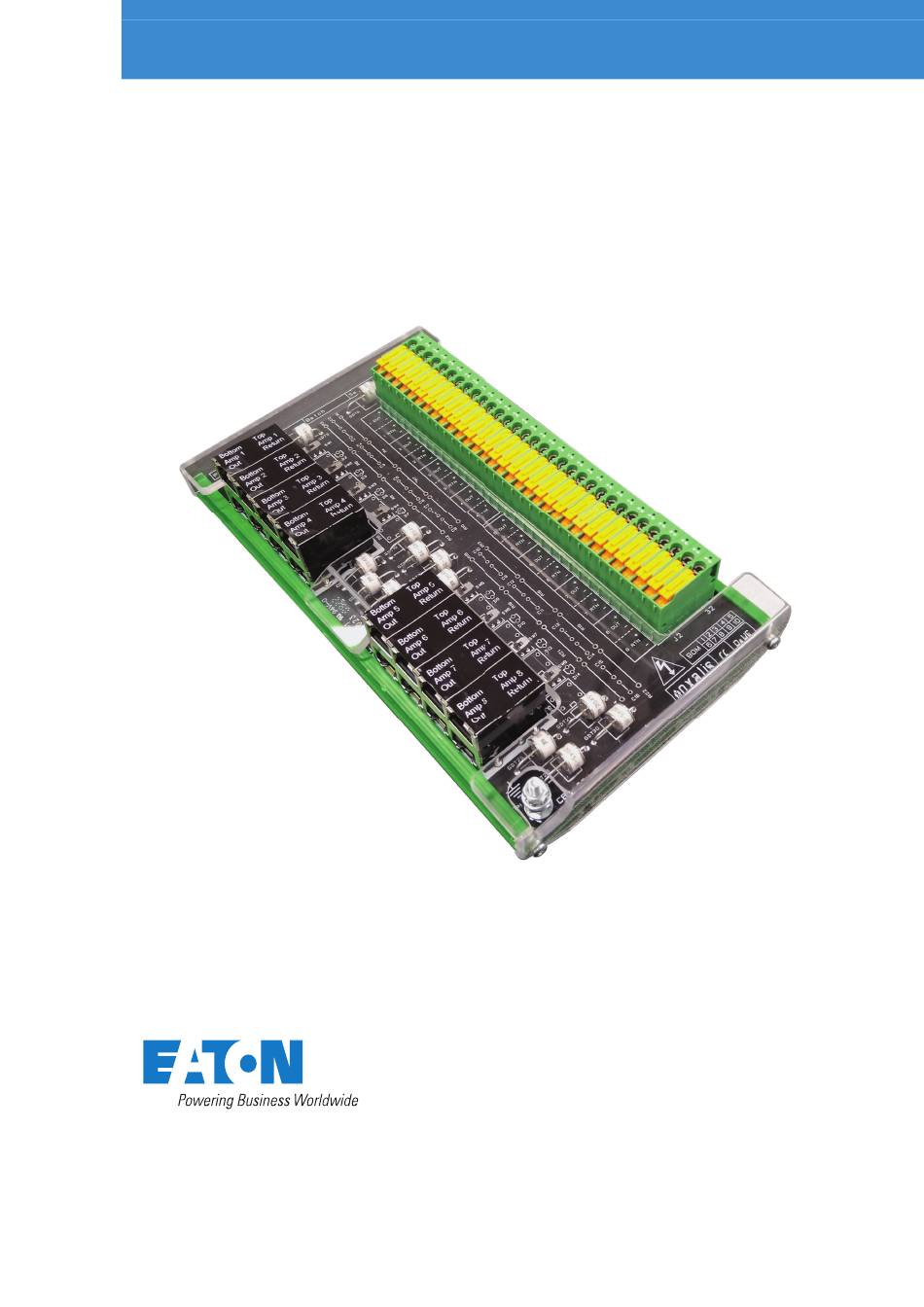

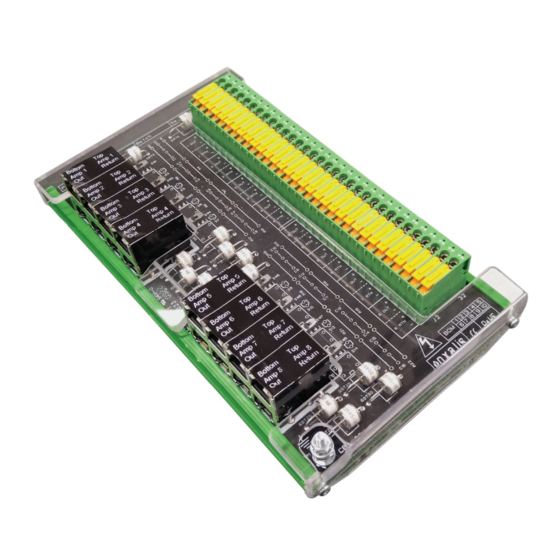

- Page 1 Sonix Eol8 Technical Manual SONIX Eol8 Termination Unit...
- Page 2 CONTRACT BETWEEN THE PARTIES. In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or other-wise for any special, indirect, incidental or consequential damage or loss whatsoever, including but not limited to...
- Page 3 A 2Mx bus, used to communicate with SAS application Sync A 2Mx bus used to communicate with the second 2Mx unit when PA/GA system is confi gured as A&B, AB+ or N+1 system SONIX EOL8 TECHNICAL MANUAL TM363 / A June 2022 www.eaton.com...
-
Page 4: Table Of Contents
FIGURE 2 - SINGLE LOOP WIRING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 SONIX EOL8 TECHNICAL MANUAL TM363 / A June 2022 www.eaton.com... -
Page 5: Eaton Quality Assurance
This self-healing loop design feature ensures please report this to Eaton to enable us to rectify and that in the event of an open circuit condition critical investigate the fault in a speedy manner. -
Page 6: Before Starting
5.3 Mounting the unit to use recycled packaging wherever practical. Due to the The Sonix Eol8 is a DIN rail mount unit, suitable to be physical nature of our products, we provide adequate installed on most standard EN 60715 rails: packaging to protect the goods during transit. -
Page 7: Earth Connection
5.4.2 Loudspeaker loop connections (Phoenix Contact 5.4.3 Earth connection blade terminals) The Sonix Eol8 unit has an M4 stud for connection to The Sonix Eol8 unit has a set of 32 Phoenix blade Earth. The Earth connection is used as a low impedance connectors split into 8 loops of 4 terminals each. -
Page 8: Loudspeaker Wiring
6 Loudspeaker wiring 6.3 Spur wiring The Sonix system can support monitored spur but it is The Sonix Eol8 can be used to support different modes LOOP 2 not as fault tolerant as loop-based wiring topologies. of operation of loudspeaker connections, as detailed here. - Page 9 Check connections and cable integrity - replace • damaged cables Remove dust and dirt from unit - Clean the protective • cover with a dry cloth, clean the electronics with compressed air. SONIX EOL8 TECHNICAL MANUAL TM363 / A June 2022 www.eaton.com...
- Page 10 All specifications, dimensions, weights and tolerances are nominal (typical) T: +44 (0) 1623 444 400 Publication www.crouse-hinds.com/hac No.TM363 / A and Eaton reserve the right to vary all data without prior notice. No liability is accepted for any consequence of use. MEDCSales@Eaton.com June 2022...
