  • Page 1 Digitaler Reglerverstärker ER9.4-10 zur elektrohydraulischen Pumpenreglung der EATON Axialkolbenpumpen X und W Design Digital Amplifier And Controller ER9.4-10 For Displacement Control of EATON Variable Piston Pumps in X and W Design...

  • Page 2: Table Of Contents

    Table of Contents Features........................28 Function ........................29 Technical Data......................30 Pin Assignment on Back Connector X1 ..............32 Display and Keypad ....................33 Setting of Parameters ....................34 Setting of Parameters Using the Keypad .............. 34 Recall Default Values of a Single Parameter............. 35 Recall Default Values of all Parameters ............
  • Page 3 Verification of Control Behavior ................47 Modifying Sensor Gain ..................47 Closed Loop Function ................... 47 Saving Parameters....................47 Hint........................47 Änderung / Revision....................48...

  • Page 4: Features

    Features The digital amplifier and controller card ER9.4-10 is used for displacement control SP of EATON variable piston pumps in X and W design. The swash plate is positioned by a Vickers Proportional Valve KDG4V-3. The digital amplifier and controller card meet the industrial standard for EMC EMV 89/336/EEC, which ensures a high interference security and low interference emission.

  • Page 5: Function

    Fig. 1 shows an EATON swash plate pump in W design with proportional valve adjustment displacement control SP. The ER9.4-10 card measures the actual position of the swash plate using a swash plate sensor, compares the swash plate angle with the set value, and drives the servo valve D631.

  • Page 6: Technical Data

    Technical Data Parameters Range, characteristics Supply voltage DC 18 ... 30 V, residual ripple < 10% Solenoid systems selection 0.1 A / 0.137A / 0.162 A / 0.2 / 0.3 A / 0.337 A / 0.437 A Power input Max. 50 VA Applicable fuse (quick) 3.15 A ±...
  • Page 7 Frequencies and cycle times PWM Frequency 18 kHz Cycle times Current controller ca. 0,22 msec Inner closed loop controller ca. 0,22 msec (for valve feedback) External closed loop controller 2 ca. 0,44 msec Table 1: Parameters of digital controller card ER9.4-10...

  • Page 8: Pin Assignment On Back Connector X1

    Pin Assignment on Back Connector X1 Table 2 shows the pin assignment on the 48 pin connector of card holder HC000000315303. Values in brackets {} have no function in proportional valve adjustment displacement control mode (SP). The wiring scheme, necessary for SP-Control is shown in Fig. 7. Additional wiring, e.g. to use monitoring function, can be done optional by customer.

  • Page 9: Display And Keypad

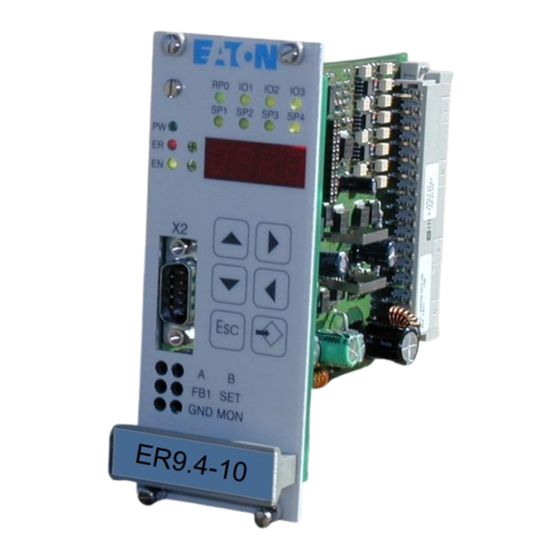

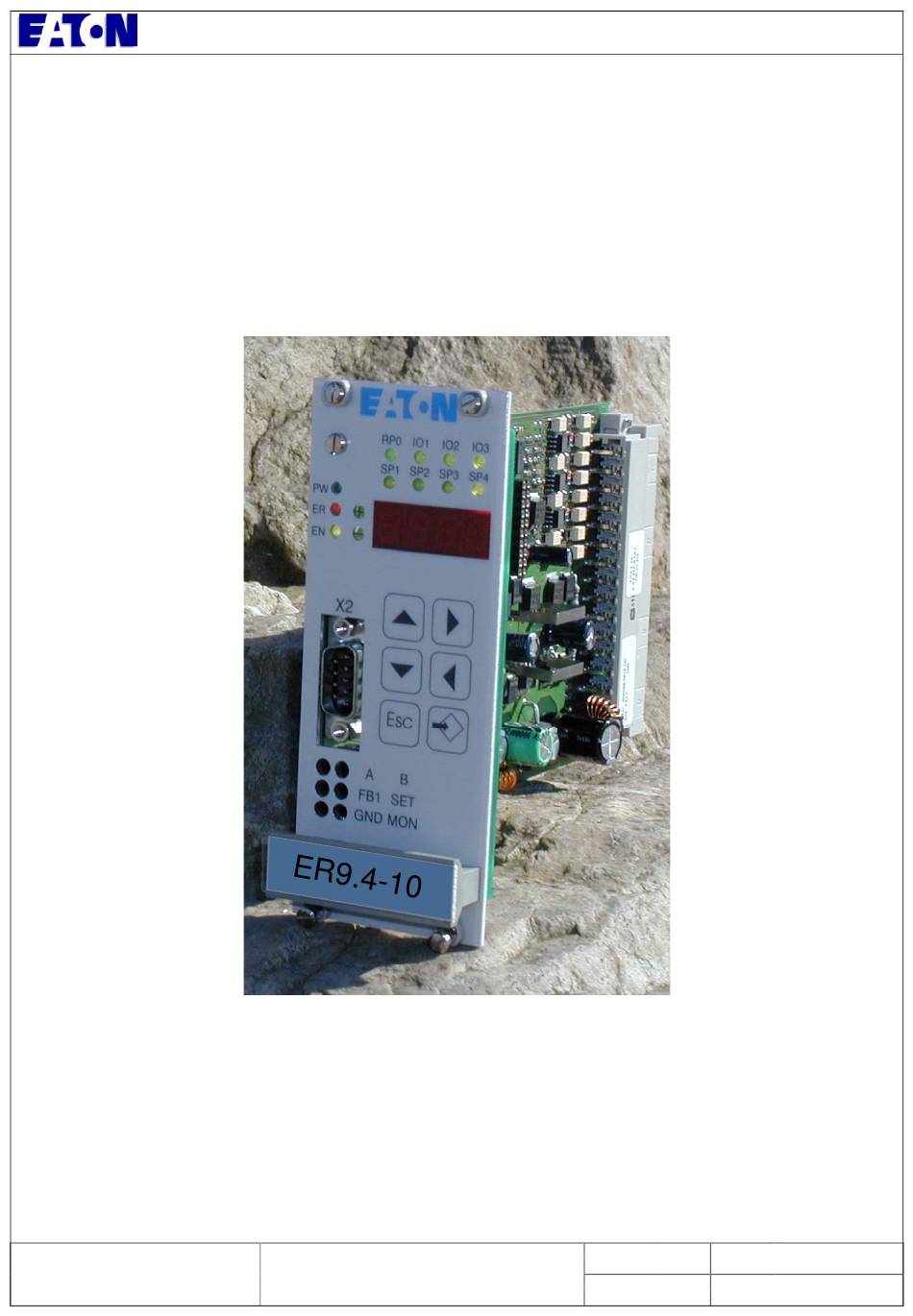

    ER9.3-10 Fig. 2: Display and keypad Fig. 2 shows the front face of the ER9.4-10 card. The function of these elements is described in Table 3. The sockets “A/B” and “C/D” can be used to measure the solenoid currents independently.

  • Page 10: Setting Of Parameters

    Setting of Parameters The digital controller and amplifier ER9.4-10 has a display and keypad to change the card parameters. Additionally, it is possible to change the card parameters using the enclosed ER9.4-Tool with a PC via the RS232 serial interface on the front.

  • Page 11: Recall Default Values Of A Single Parameter

    Recall Default Values of a Single Parameter Recall Default Values of all Parameters...

  • Page 12: Setting Parameters Using Rs232 Serial Interface And Pc

    9 (short circuit at GND). The proper cable to connect the ER9.4 card and a PC is also available from Eaton Fluid Power GmbH, Germany (Order number: HC000000316911). The length of the cable is about 2.50 m.

  • Page 13: Digital Set Values

    Fig. 3: Block diagram of Input Signals Digital Set Values Digital set points are programmable, and are activated by digital inputs. Four (optionally five) of these programmable set points can be selected with the respective input and an associated direction “+“ or “-“.

  • Page 14: Ramp Function

    Ramp Function Digital set points are integrated according to the ramp function generator. For each change in direction the ramp time can be independently set from 0 to 39.5 sec (0.01 sec resolution). The ramp characteristics are as follows: r1.01 0 to negative values r1.02 negative values to 0...
  • Page 15 Fig. 6: Controller structure and definition of parameters...

  • Page 16: Test Jacks

    Comparator Comparator function of digital controller and amplifier card ER9.4-10 is used in connection with the fail safe function. If the lag error value (set value – actual value) is greater or less than the values set in parameters C1.21 and C1.22 for longer than the time set in parameters C1.23 and C1.24, then the...

  • Page 17: List Of Parameters - As Delivered Condition

    S-parameter S1.01 – S1.04 and S1.08: digital set values (Table 7) • R-parameter r1.01 –r1.04: ramp parameters (Table 8). Column “Value” in Table 5 and Table 6 contains the recommended values for SP control by Eaton Fluid Power GmbH. These values are chosen to establish stable working conditions. Controller-Parameters...
  • Page 18 Controller-Parameters Value Function Unit Step Max. Code C1.19 00.01 00.00 10.00 00.00 T-Portion for DT1 C1.20 Gain ( C1.13 and C1.16) C1.21 Comparator upper level 0.001 -9.999 +9.999 0.500 C1.22 Comparator lower level 0.001 -9.999 +9.999 -0.500 C1.23 Comparator delay into window 00.01 00.00 +99.99 00.10...
  • Page 19 Extended-Parameters Value Function Unit Step Max. Code Ramp selection 0 = digital set v. (time constant) 1 = all set v. (rise constant.) 2 = no function Time delay enable signal 0.001 0.000 +9.999 0.000 Solenoid current adaptation Variable adjustment 00.01 00.50 01.10 01.00...

  • Page 20: Commissioning

    Commissioning Non Warranty This operating manual represents the knowledge of Eaton and during the drafting of this manual, the greatest possible care was taken. Nevertheless, Eaton disclaims any responsibility and liability claims for individual applications of the user. This is particularly true in cases of non-compliance, omissions, faults, misinterpretations and misunderstandings.

  • Page 21: Installation Of Electronic Card

    The solenoids are connected at terminal 22bdz (port A), terminal 28bdz (port B), terminal 24bdz (port D) and 30bdz (port C). The terminals bdz are bridged on the amplifier. We recommend using all three terminals. Terminal 18d is the digital output of GND. This terminal is used as a point of reference for the serial interface.
  • Page 22 Fig. 7: Wiring scheme (no galvanic isolation)
  • Page 23 (SP) with the recommended components from EATON. The digital controller and amplifier card ER9.4-10 is capable of many more functions than described in this manual. Therefore, it is possible to use a second controller loop. If you are interested in using additional functions of the digital controller and amplifier card ER9.4-10 please...
  • Page 24 Änderung / BESCHREIBUNG Revision DESCRIPTION...
