Names Of Parts; Fitting Of Dial Pointer - Sharp QT-CD180(BL) Service Manual

1 2 3 4 5 6 7
14 15

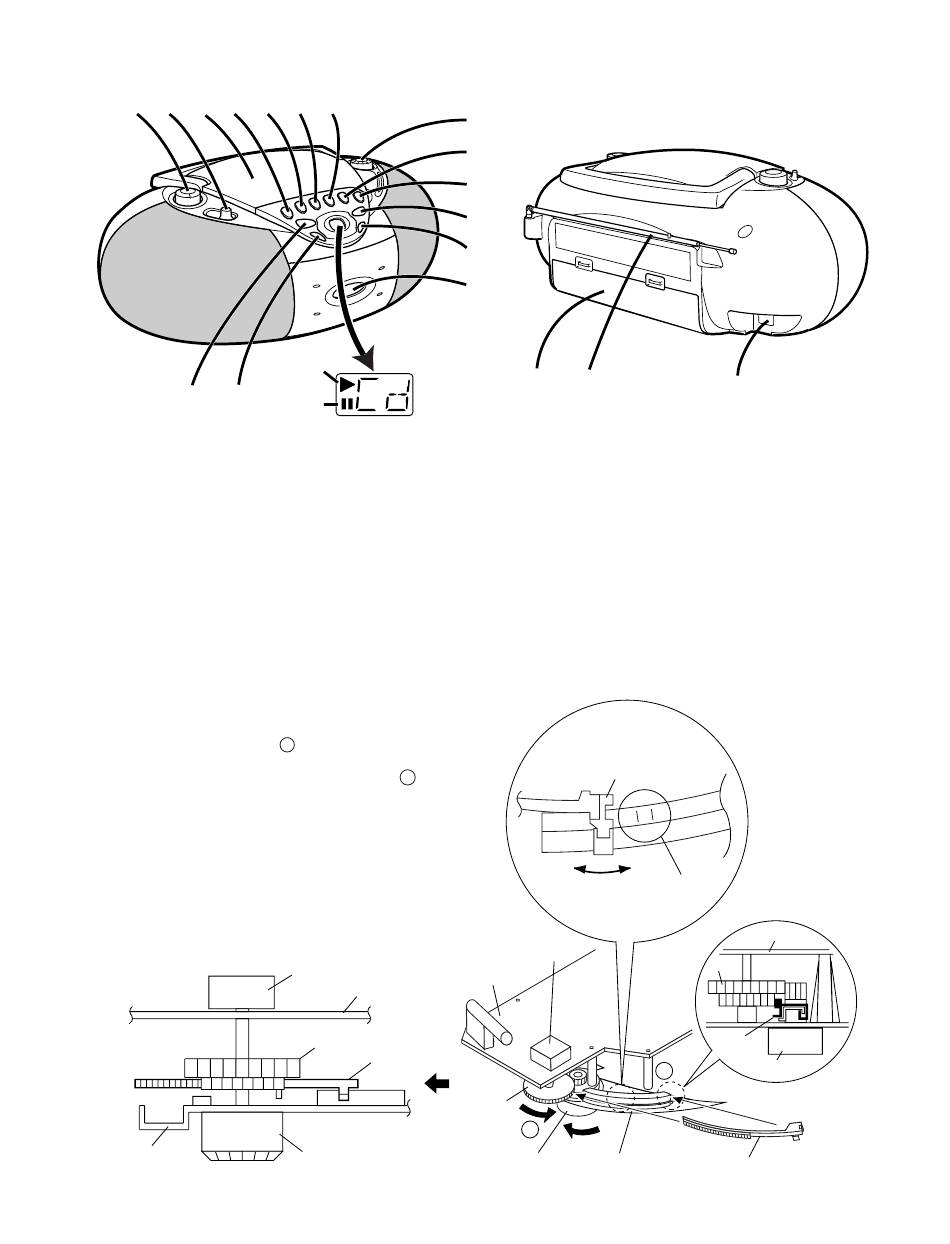

01. Volume Control
02. Function Switch
03. CD Compartment
04. (TAPE) Pause Button
05. (TAPE) Stop/Eject Button
06. (TAPE) Fast Forward Button
07. (TAPE) Rewind Button
08. Tuning Control
09. (TAPE) Play Button
Setting method of the dial pointer
1. Remove the front cabinet. (Refer to Fig.5-2 on page 5,
"Disassembly method".)
2. Remove the dial pointer.
3. Insert the dial pointer from A of the top cabinet so that it
engages with the drum gear.
4. Fully turn the drum in the opposite direction of B and set
it to the FL marks.
5. Reassemble the front cabinet.
Top Cabinet
All manuals and user guides at all-guides.com

NAMES OF PARTS

8
9
10
11
12
13
16
17
10. (TAPE) Record Button
11. (CD) Play/Pause Button
12. (CD) Track Up/Cue Button
13. Cassette Compartment
14. (CD) Stop Button
15. (CD) Track Down/Review
Button
16. (CD) Play Indicator
17. (CD) Pause Indicator

FITTING OF DIAL POINTER

Variable
Capacitor
Main PWB
Main PWB
Drum
Dial
Pointer
Drum
Tuning Knob
Figure 3-1
– 3 –
18 19
18. Battery Compartment
19. FM Telescopic Rod Antenna
20. AC Power input Socket
Dial Pointer
FL Mark
FH FL
Variable
Capacitor
A
B
Tuning Knob
Top Cabinet
QT-CD180
20
Main PWB
Drum
Dial
Pointer
Tuning Knob
Dial
Pointer
