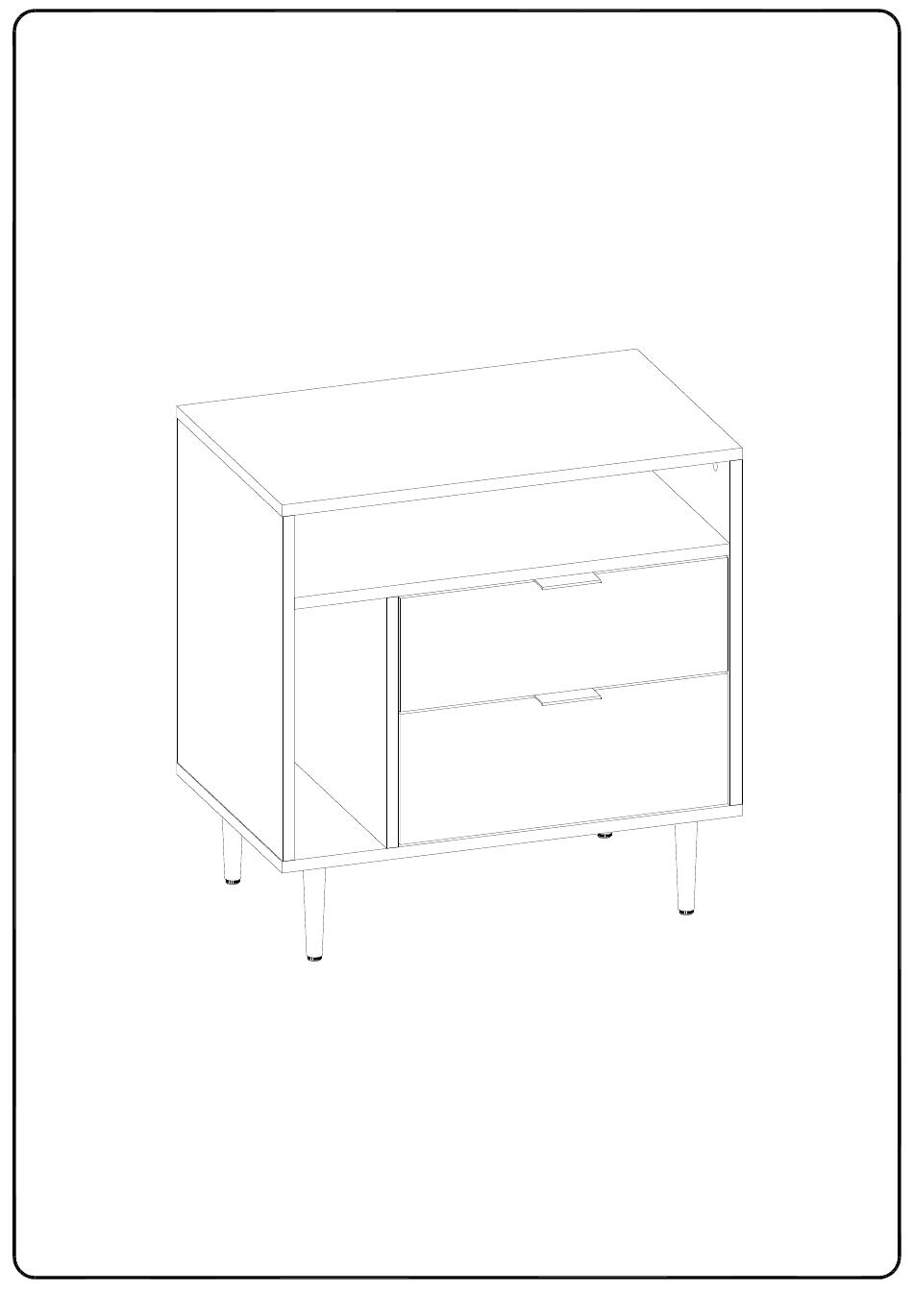

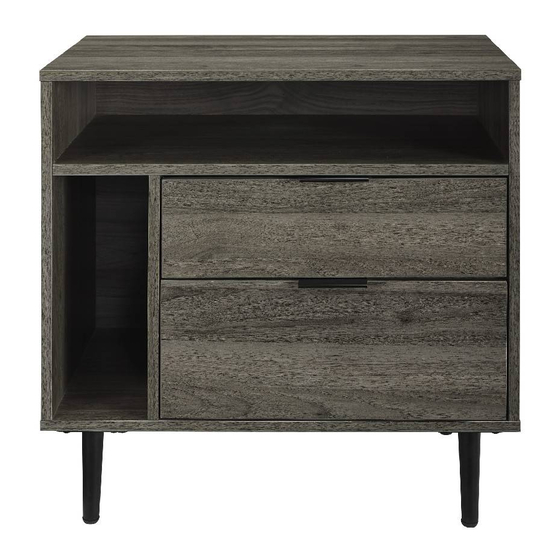

- Page 1 Assembly Instructions Please visit our website for the most current instructions, assembly tips, report damage, or request parts. All rights reserved.
-
Page 2: General Assembly Guidelines
General Assembly Guidelines Ensure that all parts and hardware are available before beginning assembly. Follow each step carefully to ensure the proper assembly of this product. Two people are recommended for ease in the assembly of this product. The three main types of hardware used to assemble this product are : wood dowels , screws and bolts. -
Page 3: Parts List
Parts List All rights reserved. -
Page 4: Hardware List
Hardware List Ø8x30mm Wooden dowel Ø15x11mm Cam lock Ø6x35mm Cam bolt Ø30mm Sticker Ø15x 9 mm Cam lock Ø6x50mm Bolt Hex Key Ø6x12mm Bolt Ø4x32mm Screw Ø3x12mm Screw Knob Ø3x17mm Screw Plastic wedge Glue tube Drawer slider sets * Note: This piece comes preassembled for shipping purposes and must be disassembled to complete the desk assembly. - Page 5 Step 1 Using cam bolt (C) secure part (1) with Philips head screwdriver as per diagram. All rights reserved.
- Page 6 Step 2 Insert wooden dowel (A) into parts (3,4,20),using cam bolt (C) secure parts (3,4) with Philips head screwdriver as per diagram. All rights reserved.
- Page 7 Step 3 Insert wooden dowel (A) into parts (5,6),using cam bolt (C) secure parts (5,6) with Philips head screwdriver as per diagram. All rights reserved.
- Page 8 Step 4 Slider arm Slider arm Slider bracket Slider bracket Put slider bracket into slider arm as per diagram. All rights reserved.
- Page 9 Step 5 Using screw (K) secure drawer slider (Q) to parts (5,6) with Philips head screwdriver as per diagram. All rights reserved.
- Page 10 Step 6 Using screw (K) secure drawer slider (Q) to parts (8,9,12,13) with Philips head screwdriver as per diagram. All rights reserved. P.10...
- Page 11 Step 7 Using cam lock (B) secure part (3) into part (4) with Philips head screwdriver as per diagram. All rights reserved. P.11...
- Page 12 Step 8 Using cam lock (B) secure part (3) into part (6) with Philips head screwdriver as per diagram. All rights reserved. P.12...
- Page 13 Step 9 Using cam lock (B) secure part (20) into part (6) with Philips head screwdriver as per diagram. All rights reserved. P.13...
- Page 14 Step 10 Using cam lock (B) secure part (3,20) into part (5) with Philips head screwdriver as per diagram. All rights reserved. P.14...
- Page 15 Step 11 Put part (17) into part (3,4,5) as per diagram. All rights reserved. P.15...
- Page 17 Step 13 Using bolt (H) secure part (19) into part (2) with hex key (G) as per diagram. All rights reserved. P.17...
- Page 18 Step 14 Put part (18) into part (3,4,5) as per diagram. All rights reserved. P.18...
- Page 19 Step 15 Using cam lock (B) secure part (1) into parts (4,5) with Philips head screwdriver as per diagram. All rights reserved. P.19...
- Page 20 Step 16 Using screw (M) secure plastic wedge (N) with Philips head screwdriver as per diagram. All rights reserved. P.20...
- Page 21 Step 17 Using cam bolt (C) , screw (K) secure knob (L) to parts (7,11) with Philips head screwdriver as per diagram. All rights reserved. P.21...
- Page 22 Step 18 Using screw (J) secure parts (8,9) to part (10) with Philips head screwdriver as per diagram. All rights reserved. P.22...
- Page 23 Step 19 Put part (16) to parts (8,9,10) as per diagram. All rights reserved. P.23...
- Page 24 Step 20 Using cam lock (E) secure part (7) to parts (8,9) with Philips head screwdriver as per diagram. All rights reserved. P.24...
- Page 25 Step 21 Using screw (J) secure parts (12,13) to part (15) with Philips head screwdriver as per diagram. All rights reserved. P.25...
- Page 26 Step 22 Put part (16) into parts (12,13,15) as per diagram. All rights reserved. P.26...
- Page 27 Step 23 Using cam lock (E) secure part (11) into parts (12,13) with Philips head screwdriver as per diagram. All rights reserved. P.27...
- Page 28 Step 24 Place sticker (D) cover the holes as per diagram. All rights reserved. P.28...
- Page 29 Step 25 Tray arm Tray bracket Put tray bracket (Q) into tray arm as per diagram . All rights reserved. P.29...
- Page 30 Step 26 Tray arm Tray bracket Put tray bracket (Q) into tray arm as per diagram . All rights reserved. P.30...
-
Page 31: Final Assembly
Step 27 Final Assembly All rights reserved. P.31...
