AUO PUS43A Quick Start Manual

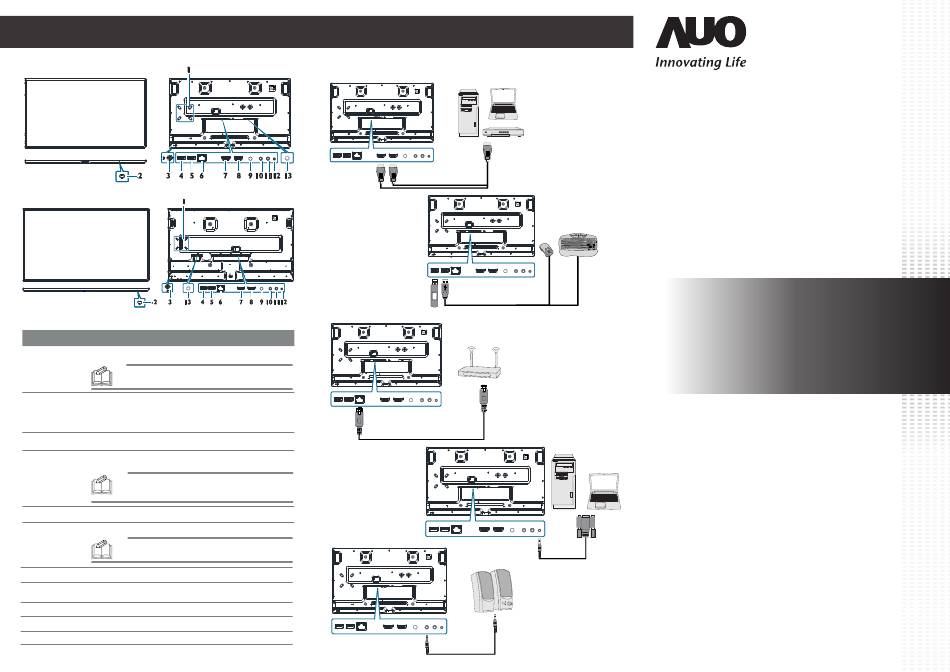

Inputs/Outputs
43"
55"
Item Description
1 Screw Slots for Allows installation of a mount bracket compatible with Intel NUC specifications.
Intel NUC Mount
Bracket
NOTE: For details regarding the specifications of the NOTE: For details regarding the specifications of the
mount bracket, you may refer to Intel's official website. mount bracket, you may refer to Intel's official website.
2 Power Button Turns the display on/off. When the display is turned on:
• Press the power button to turn off the display backlight.
• Press and hold the power button for three seconds, the display will
be put into standby mode.
3 Kensington
Connects to Kensington-compatible security locks.
Lock Slot
Connects with USB 2.0 devices such as keyboards, pointing devices, or
flash drives.
4 USB
5 USB NOTE: If you need to connect a USB flash drive to each of
the USB ports on the display at the same time, use the
supplied USB-A male-to-female cable for one of the USB ports.
6 RJ45 Connects with a local network using a standard Ethernet cable.
Connects with devices transmitting audio/video using the HDMI interface.
7 HDMI 1
NOTE: The HDMI port complies with the HDMI 2.0
8 HDMI 2
specifications and supports the CEC function.
9 SERVICE PORT For debugging purposes by the manufacturer only.
Connects with external speakers to output the audio that is supplied by
10 LINE OUT
the video source.
11 IR IN Connects with the supplied IR extender.
12 RS232 Connects with the serial I/O connector of a host device.
13 DC IN Connects with the supplied power adapter.
Connecting To The Display
Digital Connection
USB 2.0
RS232
HDMI
Quick Start Guide
PUS43A (SN43UNA01.0)
PUS55A (SN55UNA01.0)
LAN RJ45
External Speakers
AUO PID Display
http://pid.auo.com/
49.S4301.008
