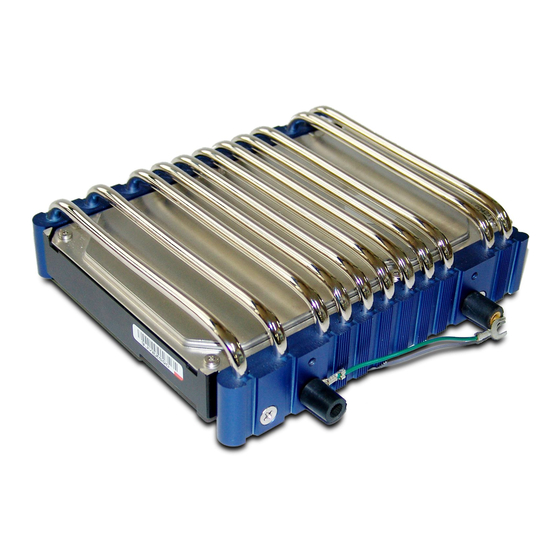

- Page 1 All manuals and user guides at all-guides.com User ’ ’ s Manual User ’ ’ s Manual (English Edition) Model : ZM-2HC2 NP Heatpipe HDD Cooler * Please read before installation http:// www.zalman.co.kr http:// www.zalmanusa.com...
- Page 2 All manuals and user guides at all-guides.com 1. Product Features Cools HDD for more stable operation ● Reduces HDD noise and vibration ● Fanless design ensures noiseless, maintenance-free operation ● NP is an Acronym for “Noise Prevention”. 2. Specifications Name NP Heatpipe HDD Cooler Weight 270g...
- Page 3 All manuals and user guides at all-guides.com 5. Exploded View Damper Heatpipe Al Bar Damper A-Type Bolt B-Type Bolt Ground Wire Mounting Manual Hole Sticker <Fig. 1. Exploded View> * The specifications of any product may change without prior notice to improve the performance thereof.
- Page 4 1) Use a small amount of force : if excessive force is used when installing, the product may warp or be deformed. 2) Zalman Tech. Co., Ltd. is not responsible for any problems arising from using the product outside its intended purpose.
- Page 5 All manuals and user guides at all-guides.com 8. Installing the HDD 1) Seat the NP Heatpipe HDD Cooler Seat the NP Heatpipe HDD Cooler on the HDD as shown in the diagram. (Note the locations of the holes) Holes A-Type 2) Fasten the HDD Bolt Screw the 4 A-Type Bolts into the holes...
- Page 6 All manuals and user guides at all-guides.com 2) Install into 5.25-inch Drive Bay B-Type Bolt Slide the completed assembly into the PC’s 5.25-inch drive bay and firmly fasten with 4 B-Type Bolts. Use one of the B-Type Bolts to link the ground wire’s Y-terminal to the chassis.
- Page 7 All manuals and user guides at all-guides.com 2 2 ) ) D D r r i i l l l l 4 4 H H o o l l e e s s i i n n t t h h e e C C a a s s e e Attach the Mounting Hole Sticker to the case in Power Supply which you wish to install the HDD Cooler and drill...
- Page 8 ZM80X-HP : Heatpipe VGA Cooler ● ZM300A-APF ZM-NB47J ZM-F1 CNPS7000 Series ZM80X-HP CNPS6000 Series For more information on our products, visit our website at www.zalman.co.kr. * The specifications of any product may change without prior notice to improve the performance thereof.
