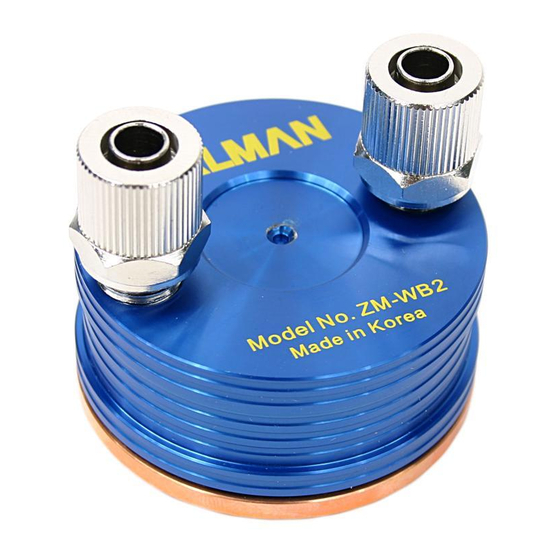

- Page 1 User ’ ’ s Manual User ’ ’ s Manual (English Edition) Intel Pentium 4 Socket 478 CPU AMD Athlon/ Duron/Athlon XP Socket 462 CPU AMD Athlon 64 Socket 754 CPU ZM-WB2 Gold * Please read before installation http://www.zalman.co.kr http://www.zalmanusa.com...
-
Page 2: Specifications
2) Intel Pentium 4 (Socket 478), AMD Athlon/Duron/Athlon XP (Socket 462),Athlon 64 (Socket 754) compatible design for broad compatibility. 3) Three types of compression fitting are offered for use with water tubes (8X10mm,8X11mm,10X13mm) * Zalman Tech. Co., Ltd. is not responsible for any damage resulting from CPU OVERCLOCKING. 2. Specifications Part No Part name Q’... -
Page 3: Exploded View
All manuals and user guides at all-guides.com 3. Exploded View 1) Exploded view of CPU block ⑬ a Block base ① ① ① ① b b B B l l o o c c k k c c o o v v e e r r ⑬... - Page 4 All manuals and user guides at all-guides.com 4. Components 1) Common Components ① CPU block - 1 pc. ② Hand screw - 2 pcs. ③ Thermal grease - 1 pc. ④ Clip - 1 pc. ① ② ⑬ ⑤ ⑤ User’s manual ⑬...
- Page 5 All manuals and user guides at all-guides.com 5. Compatible CPU Types 1) Intel Pentium 4 - Socket 478 All speeds of Pentium 4 Socket 478 CPUs Caution As shown in Figure 2, a mainboard that is not compliant with the “10.2 mm mainboard component height restriction”...
-
Page 6: Cautions During Installation
6. Cautions During Installation 1) Keep this product away from children. 2) Zalman Tech. Co., Ltd. is not responsible for any problems arising from using the product outside its intended purpose.. 3) The exposed core of a Socket 462 CPU can be damaged if proper care is not taken. Read the “Installation”... - Page 7 All manuals and user guides at all-guides.com 3) Insert Hand screws Insert hand screws into the inner holes on the clip. Hand screw Outer hole Clip 4) Fasten Hand screws Inner hole Place the CPU block on the center of the CPU. Screw in both Hand screws in an alternating Clip fashion until they are completely tightened.
- Page 8 All manuals and user guides at all-guides.com 2) Apply Thermal Grease Spread thermal grease thinly and evenly over the CPU. Thermal Grease 3) Insert Hand screws Insert hand screws into the outer holes on the clip. 4) Fasten Hand screws Clip Outer hole Place the CPU block on the center of the CPU.
- Page 9 10. Build a noiseless system Creating a Complete Noiseless System Use the following Zalman products to achieve stable and silent operation of your computer, Noiseless Power Supply, Fanless Coolers for Northbridge Chipset & Video Card, and Noiseless Fan. Power supply...
