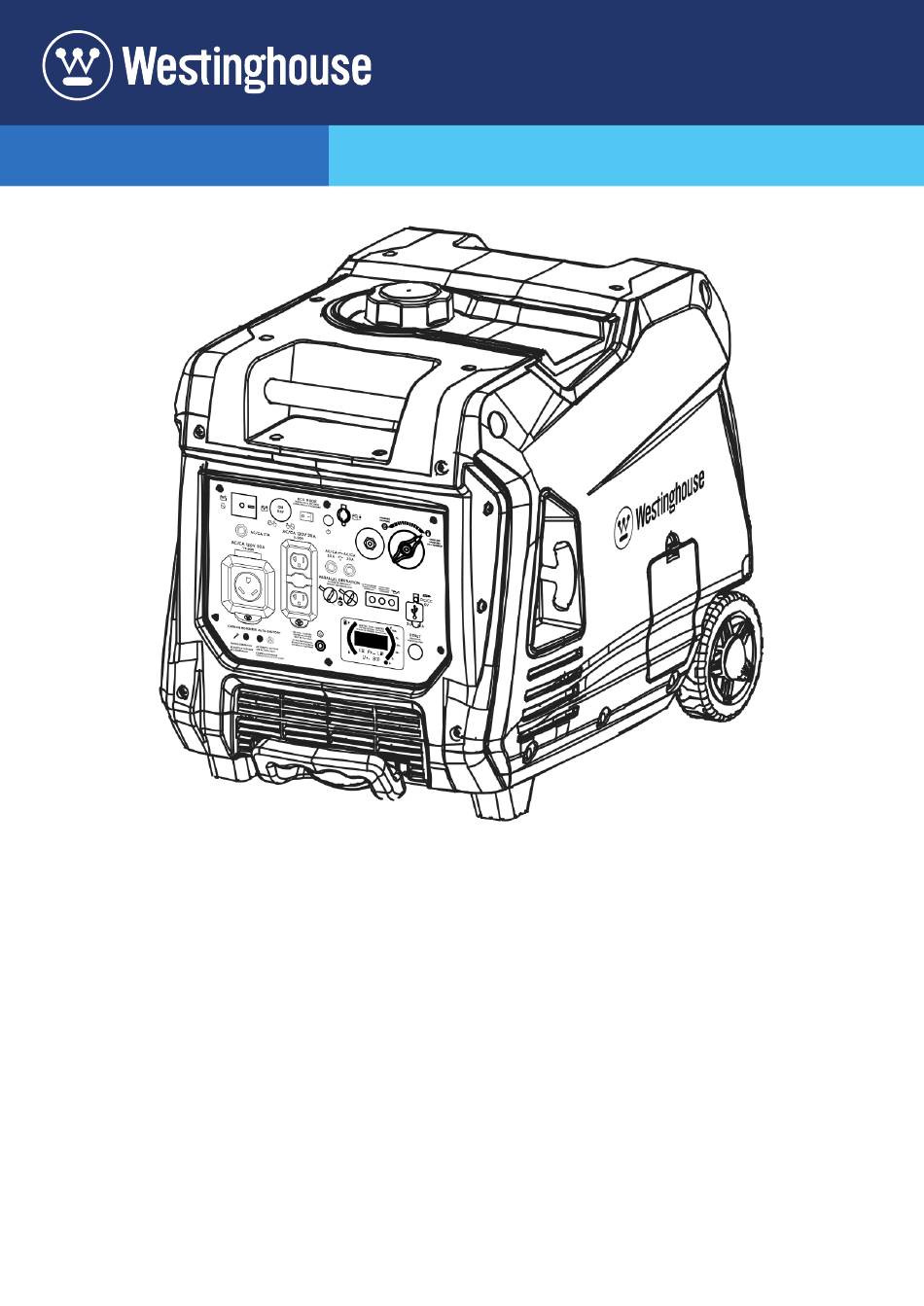

- Page 1 SAFETY USER MANUAL iGen4500 Digital Inverter Generator Gasoline: 3700 Running Watts | 4500 Peak Watts Propane: 3330 Running Watts | 4050 Peak Watts DO NOT RETURN THIS PRODUCT TO THE STORE If you have questions or need assistance, please call customer service at 855-944-3571.
-
Page 2: Table Of Contents
The illustrations used in this manual are intended as representative reference views only. We reserve the right to make any specification or design change without notice. 2 | Westinghouse Outdoor Power Equipment, LLC... -
Page 3: Introduction
*Ethanol content of 10% or less. DO NOT use E15 or E85. Warranty registration 777 Manor Park Drive Columbus, OH 43228 For Your Records Date of Purchase: Model Number: Serial Number: Place of Purchase: IMPORTANT: Keep your purchase receipt for trouble-free warranty coverage. Westinghouse Outdoor Power Equipment, LLC | 3... -
Page 4: Safety
Note: Indicates a procedure, practice or condition that should be followed for the generator to function in the manner intended. 4 | Westinghouse Outdoor Power Equipment, LLC... -
Page 5: Safety Instructions
Protect the generator from all hazardous weather conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical circuit. Westinghouse Outdoor Power Equipment, LLC | 5... - Page 6 • Gas vapors can cause a fire if ignited. • Gasoline is a skin irritant and needs to be cleaned up immediately if it comes in contact with the skin. 6 | Westinghouse Outdoor Power Equipment, LLC...
- Page 7 7” to 14” of water column. A certified plumber must ensure that the pressure is correct or install a step down regulator if needed. Westinghouse Outdoor Power Equipment, LLC | 7...
- Page 8 SAFETY SAFETY LABELS AND DECALS 8 | Westinghouse Outdoor Power Equipment, LLC...
-
Page 9: Co Sensor
A CO sensor air immediately. Call emergency services. You may have fault can only be diagnosed and repaired carbon monoxide poisoning. by an authorized Westinghouse service ACTION LABEL center. Westinghouse Outdoor Power Equipment, LLC | 9... -
Page 10: Components
10. Muffler and Spark Arrestor: The spark arrestor 5. Carry Handles: Built-in handles allow easy, two- prevents sparks from exiting the muffler. person transport. 11. Model Information Label: Provides model serial number, voltage/amps, and power rating information. 10 | Westinghouse Outdoor Power Equipment, LLC... -
Page 11: Control Panel Components
If increasing levels of CO gas are detected, the CO Sensor automatically shuts down 10. Fuel Selector Switch: Used to select gas or propane the engine. operation. 11. LPG/Propane Inlet: Connects a propane tank with the included LPG/propane hose. Westinghouse Outdoor Power Equipment, LLC | 11... -
Page 12: Assembly
See Engine Oil Level Check in the Maintenance section. 3. Wipe the oil dipstick clean. Replace the oil dipstick and hand-tighten. 4. Replace the oil access cover. 12 | Westinghouse Outdoor Power Equipment, LLC... -
Page 13: Fuel
• DO NOT use included LPG/propane hose for any gasoline in an approved gasoline container before fueling other appliances. the generator. Run the generator for five minutes to allow the stabilizer to treat the entire fuel system. Westinghouse Outdoor Power Equipment, LLC | 13... -
Page 14: Connect The Battery
DO NOT use the generator and contact customer service. Note: The generator is equipped with a battery charging feature. Once the engine is running, a small charge will slowly recharge the battery. 14 | Westinghouse Outdoor Power Equipment, LLC... -
Page 15: Operation
High Altitude Carburetor Kit: Part# 518965 that will not allow for adequate cooling of the generator High Altitude DF Regulator: Part# 518516 and/or the muffler. DO NOT contain generators during operation. Westinghouse Outdoor Power Equipment, LLC | 15... -
Page 16: Remote Start
The remote start key fob included with the generator should be attached to the recoil handle or control panel. If your unit was shipped without a key fob, contact Westinghouse customer service. The generator can be started remotely from up to 99 feet (30 meter) using the remote start key fob. -
Page 17: Starting The Engine: Propane
6. After starting, allow the engine to run for several seconds 4. If operating on propane, turn the propane tank valve to then move the Choke lever to the fully OFF position. the fully closed position. Westinghouse Outdoor Power Equipment, LLC | 17... -
Page 18: Frequency Of Use
The generator will detect loads as they are applied and increase engine RPM. To run the generator at maximum power and RPM, push the ECO MODE switch to the OFF position. 18 | Westinghouse Outdoor Power Equipment, LLC... -
Page 19: Generator Capacity
*Wattages listed are approximate. Verify actual wattage. 2590 Total 1600 Running Highest Watts* Starting Watts* Total Running Watts 2590 Highest Starting Watts + 1600 Total Starting Watts Needed 4190 *Wattages listed are approximate. Verify actual wattage. Westinghouse Outdoor Power Equipment, LLC | 19... -
Page 20: Extension Cords
• Make sure the tool or appliance is in good working Connecting the iGen4500DFc to a generator that is not order. Faulty appliances or power cords can create a compatible can cause a low voltage output that can potential for electric shock. -
Page 21: Transporting
7. Unplug all loads before stopping the generators. Fire hazard. Do not up-end the generator or place it on its side. Fuel or oil can leak and damage to the generator may occur. Westinghouse Outdoor Power Equipment, LLC | 21... -
Page 22: Maintenance
Note: The air filter element is oil soaked. Use an appropriate cleaning container. NOTICE Avoid skin contact with engine oil. Wear protective clothing and equipment. Wash all exposed skin with soap and water. 22 | Westinghouse Outdoor Power Equipment, LLC... -
Page 23: Engine Oil Level Check
When using the generator under extreme, dirty, dusty conditions or in extremely hot weather, change the oil more frequently. Ambient air temperature will affect engine oil performance. Change the type of engine oil used based on weather conditions. Westinghouse Outdoor Power Equipment, LLC | 23... -
Page 24: Engine Oil Change
10. Connect the spark plug wire and install the engine as additional 3/8 to 1/2 turn with the spark plug wrench. service cover. 9. Install the spark plug boot and engine service cover. 24 | Westinghouse Outdoor Power Equipment, LLC... -
Page 25: Spark Arrestor Service
30–60 minutes of use. If you do not regularly run the generator, charge the battery overnight once a month to keep it ready for use. Charge the battery in a dry location. Westinghouse Outdoor Power Equipment, LLC | 25... -
Page 26: Storage
5. Push the battery switch to the OFF position. six months, drain the float bowl to prevent gum and varnish buildup in the carburetor. 6. Disconnect the battery quick-connect plug. 7. Remove the spark plug. 26 | Westinghouse Outdoor Power Equipment, LLC... -
Page 27: Valve Clearance
Certain ambient temperatures and environments may clearance. Hold the rocker arm pivot and re-tighten the require you to close the choke halfway for a successful pivot adjusting nut to the specified torque. start. Westinghouse Outdoor Power Equipment, LLC | 27... -
Page 28: Troubleshooting
OPD. If you suspect your propane fuel tank has been overfilled, discontinue operation immediately Propane fuel tank overfilled. and return the propane fuel tank to the place of purchase or refilling. 28 | Westinghouse Outdoor Power Equipment, LLC... -
Page 29: Troubleshooting
Start the engine and allow Gasoline not purged from the carburetor before the engine to run until the gasoline has been switching to propane. consumed in the carburetor. Begin propane start up procedure. Westinghouse Outdoor Power Equipment, LLC | 29... -
Page 30: Exploded View And Parts List Engine Exploded View
EXPLODED VIEWS EXPLODED VIEW AND PARTS LIST ENGINE EXPLODED VIEW 30 | Westinghouse Outdoor Power Equipment, LLC... -
Page 31: Engine Parts List
BOLT M6 15.3 91325 BOLT M6 91816 OIL DRAIN BOLT IGNITION COIL ASSEMBLY 4.10 94007 OIL DRAIN BOLT WASHER 16.1 91333 BOLT M6 4.11 94035 OIL DRAIN BOLT WASHER 16.2 339909 IGNITION COIL Westinghouse Outdoor Power Equipment, LLC | 31... - Page 32 23.10 92240 CROSS SCREW STUD M4 23.11 249934 WATERPROOF COVER 23.12 517906 LOW PRESSURE HOSE 23.13 599302 LOW PRESSURE HOSE HOOP RESONANT CAVITY ASSEMBLY 24.1 337001 RESONANT CAVITY ASSEMBLY 24.1.1 5697 FOAM FILTER 32 | Westinghouse Outdoor Power Equipment, LLC...
-
Page 33: Generator Exploded View
EXPLODED VIEWS GENERATOR EXPLODED VIEW Westinghouse Outdoor Power Equipment, LLC | 33... -
Page 34: Generator Parts List
WHEEL 6.13 92014 SCREW 503032 WHEEL COVER PANEL REAR COVER ASSEMBLY 94022 STEEL WASHER 503016 PANEL REAR COVER 9.10 500321 AXLE WILD CARD 92078 SCREW M6 9.11 503053 LIMIT BLOCK 505027 WIRE SLEEVE 34 | Westinghouse Outdoor Power Equipment, LLC... - Page 35 SCREW M4 16.1 91325 BOLT M6 19.8 503130 O-RING 16.2 503006 LIFTER 19.9 503128 16.3 503008 BRACKET 19.10 503126 INTAKE CONNECTOR 16.4 503009 HANDLE 19.11 503199 PROTECTIVE COVER 16.5 503042 BRACKET 19.12 503136 PLUG Westinghouse Outdoor Power Equipment, LLC | 35...
- Page 36 19.17 517907 LOW PRESSURE HOSE 503805 DEPUTY WIRING HARNESS 503082 BELLOWS 503808 DEPUTY WIRING HARNESS 99011 SPARK PLUG SLEEVE 500942 FUNNEL 99629 OIL BOTTLE 511043 CHARGER 99506 DUAL - PURPOSE SCREWDRIVER 99585 FIXED WRENCH 36 | Westinghouse Outdoor Power Equipment, LLC...
-
Page 37: Schematics
SCHEMATICS SCHEMATICS Westinghouse Outdoor Power Equipment, LLC | 37...
