Summary of Contents for Exide EV640
-
Page 1: English Pag
User guide for Exide Marine & Leisure Equipment Lithium-ion batteries Exide M&L Battery Monitor EXIDE TECHNOLOGIES SAS 5 ALLÉE DES PIERRES MAYETTES 92636 GENNEVILLIERS FRANCE TEL: +33 1 41 21 23 00 FAX +33 1 41 21 27 15... -
Page 2: Table Of Contents
index ● English pag. pag. Warning and general conditions pag. 1. Safety pag. 2. Model range and specifications pag. 3. BMS – Battery Management System pag. 4. Battery installation / connection pag. 5. Wireless communication pag. 6. Instructions for safe handling pag. -
Page 3: Warning And General Conditions Pag
Warning and general conditions These instructions contain basic information and guidance to be noted and followed during operation and maintenance and must be read by all users. ● Observe these Instructions and keep them located near the battery for future reference. ●... -
Page 4: Safety Pag
1.3 Battery Maintenance ● Exide Li-ion charger is recommended to be used. If using any other charger it must respect the charging requirements of the battery (see section 2) ● Depending on battery type, if the battery voltage is lower than 10 V / 20 V / 30 V the BMS will disconnect (over discharge protection) and enter sleep mode to protect the battery from further discharge. -
Page 5: Model Range And Specifications Pag

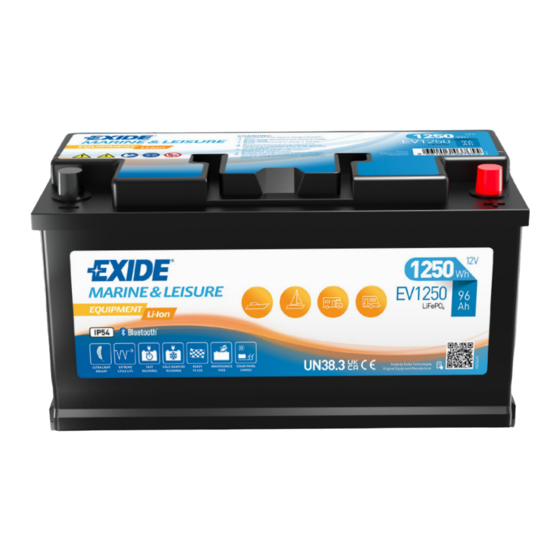

Dimension Weight Model Heater Serial Parallel Voltage Capacity Energy (Wh) size L*W*H (mm) (Kg) EV640 12.8 V 50 Ah 308 x 168 x 211 EV1250 12.8 V 96 Ah 1250 355 x 176 x 190 10.7 EV1300 12.8 V 100 Ah... - Page 6 Temperature MAX charge Charge voltage Float charge voltage Model Voltage Capacity range voltage* range** (±0.2 V) EV640 12.8 V 50 Ah -20°C / 45°C 14.6 V 13.6 – 14.6 V 13.8 V EV1250 12.8 V 96 Ah -20°C / 45°C 14.6 V...
-
Page 7: Bms - Battery Management System Pag
BMS has a self-learning and SOC calibration function. Calibration needs to charge the battery to 100% SOC SOC on the mobile Application “Exide M&L” is calculated by the BMS. The BMS has self-power consumption, when battery is left in storage, due to energy consumption from electronics, this calculation may become inaccurate. Make a full charge to the battery to get accurate data. -
Page 8: Battery Installation / Connection Pag
Wireless communication The batteries equipped with Bluetooth can be monitored with a mobile phone using the Exide Application. Features that can be monitored in the app include: battery voltage, current, state of charge, temperature, cycle count and alarms.The Exide Mobile Application can be downloaded from App Store (iOS) and Google Play (Android). -
Page 9: Trouble Shooting Pag
• Charge the battery if there are no alarms in the APP or if the APP is unavailable. Note that some chargers will not activate if the battery voltage is too low - make sure the charger can supply power even if the battery is at 0 V. Recommended to use Exide Li-ion charger •... - Page 10 • Check the battery temperature in the APP to confirm that it is within the range where the heater is active • Check that the charger is active and can supply charging voltage and current • In case of not visible charge or temperature increase from the APP contact Exide dealer...
