Motorbike & Sport Batteries

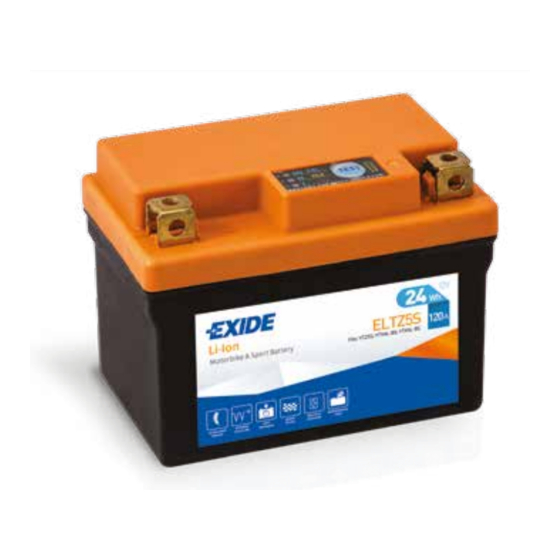

Exide Li-Ion
Benefits
› Ultra-lightweight – up to 80% lighter than lead-acid batteries
› Very low self-discharge – long shelf life and perfect for seasonal use
› Super-fast recharging
› Extreme cycle life – more than 2000 cycles
› First-class safety features
› Multi-position mounting – even upside down
› Ready to use and maintenance free – just install and forget
› State-of-charge indicator for regular checks at one glance
› Covers the majority of parc – spacers included for more
fitment possibilities
FAST
ULTRA LIGHT EXTREME
CYCLE LIFE RECHARGE
WEIGHT
Type list
Performances
Energy Current
Code
(Wh) (A) (mm)
ELTZ5S 24 120
ELTZ7S 28,8 150
ELTX9 36 180
ELT9B 36 190
ELTX12 42 210
ELTZ10S 48 230
ELTX14H 48 240
ELT12B 60 260
ELTZ14S 60 290
ELTX20H 84 380
European Headquarters
Exide Technologies SAS
5 allée des Pierres Mayettes,
92636 Gennevilliers
France
Tel: +33 1 41 21 23 00
Fax +33 1 41 21 27 15
www.exide.com
READY MULTIPLE MAINTENANCE
TO USE POSITIONS
L W H Weight
(mm) (mm) (kg)
113 70 85 0,5
113 70 85 0,6
150 87 105 0,7
150 65 92 0,7
150 87 93 0,8
150 87 93 0,8
150 87 93 0,9 YTX14H-BS; KMX14-BS; YTX14-BS
150 65 130 0,9
150 87 93 1
GYZ20H; YTX20H-BS; YTX20HLBS; YTX20-BS;
175 87 130 1,3
YB16-B-CX; YB16-B; YB16C-B; YB18-A; Y50-N18A-A
FREE
Dimensions & Weight
Fits
YTZ5S; YTX4L-BS; YTX5L-BS
YTZ7S; YTX7L-BS
YTX7A-BS; YTX9-BS; YTR9-BS
YT7B-BS; YT9B-BS
YTX12-BS; YTX12A-BS; YB12B-B2
YTZ10S
YT12B-BS; YT14B-BS; YB16AL-A2
YTZ12S; YTZ14S
Spacer quantity & size
Polarity
(LxWxH) (mm)
2 spacers of 50x20x20
4 spacers of 50x20x20
No spacer
4 spacers of 50x20x7
2 spacers of 86x20x25;
2 spacers of 86x20x12
No spacer
4 spacers of 86x20x25
10 spacers of 50x20x7
2 spacers of 50x20x35
2 spacers of 86x20x17
4 spacers of 86x20x12;
2 spacers of 86x20x17
Scan to discover the full
Exide Motorbike & Sport
battery range
Features
Terminal type
Front Side Top
