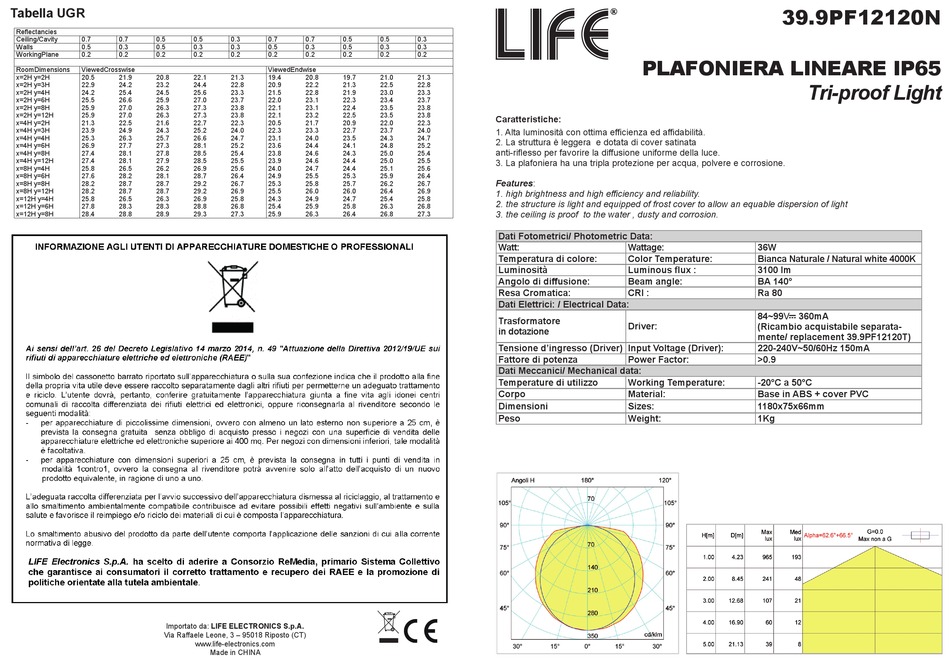

Life 39.9PF12120N Quick Start Manual

Tabella UGR
Reflectancies
Ceiling/Cavity 0.7 0.7 0.5
Walls 0.5 0.3 0.5
WorkingPlane 0.2 0.2 0.2
RoomDimensions ViewedCrosswise
x=2H y=2H 20.5 21.9 20.8
x=2H y=3H 22.9 24.2 23.2
x=2H y=4H 24.2 25.4 24.5
x=2H y=6H 25.5 26.6 25.9
x=2H y=8H 25.9 27.0 26.3
x=2H y=12H 25.9 27.0 26.3
x=4H y=2H 21.3 22.5 21.6
x=4H y=3H 23.9 24.9 24.3
x=4H y=4H 25.3 26.3 25.7
x=4H y=6H 26.9 27.7 27.3
x=4H y=8H 27.4 28.1 27.8
x=4H y=12H 27.4 28.1 27.9
x=8H y=4H 25.8 26.5 26.2
x=8H y=6H 27.6 28.2 28.1
x=8H y=8H 28.2 28.7 28.7
x=8H y=12H 28.2 28.7 28.7
x=12H y=4H 25.8 26.5 26.3
x=12H y=6H 27.8 28.3 28.3
x=12H y=8H 28.4 28.8 28.9
LITESTAR (c)OxyTech Srl www.oxytech.it
Importato da: LIFE ELECTRONICS S.p.A.
Via Raffaele Leone, 3 – 95018 Riposto (CT)
UGR
S = 0.250
0.5 0.3 0.7 0.7 0.5
0.3 0.3 0.5 0.3 0.5
0.2 0.2 0.2 0.2 0.2
ViewedEndwise
22.1 21.3 19.4 20.8 19.7
24.4 22.8 20.9 22.2 21.3
25.6 23.3 21.5 22.8 21.9
27.0 23.7 22.0 23.1 22.3
27.3 23.8 22.1 23.1 22.4
27.3 23.8 22.1 23.2 22.5
22.7 22.3 20.5 21.7 20.9
25.2 24.0 22.3 23.3 22.7
26.6 24.7 23.1 24.0 23.5
28.1 25.2 23.6 24.4 24.1
28.5 25.4 23.8 24.6 24.3
28.5 25.5 23.9 24.6 24.4
26.9 25.6 24.0 24.7 24.4
28.7 26.4 24.9 25.5 25.3
29.2 26.7 25.3 25.8 25.7
29.2 26.9 25.5 26.0 26.0
26.9 25.8 24.3 24.9 24.7
28.8 26.8 25.4 25.9 25.8
29.3 27.3 25.9 26.3 26.4
www.life-electronics.com
Made in CHINA
0.5 0.3
0.3 0.3
0.2 0.2
21.0 21.3
22.5 22.8
23.0 23.3
23.4 23.7
23.5 23.8
23.5 23.8
Caratteristiche:
22.0 22.3
23.7 24.0 1. Alta luminosità con ottima efficienza ed affidabilità.
24.3 24.7
2. La struttura è leggera e dotata di cover satinata
24.8 25.2
anti-riflesso per favorire la diffusione uniforme della luce.
25.0 25.4
25.0 25.5 3. La plafoniera ha una tripla protezione per acqua, polvere e corrosione.
25.1 25.6
25.9 26.4
Features:
26.2 26.7
26.4 26.9
1. high brightness and high efficiency and reliability.
25.4 25.8
2. the structure is light and equipped of frost cover to allow an equable dispersion of light
26.3 26.8
3. the ceiling is proof to the water , dusty and corrosion.
26.8 27.3
Dati Fotometrici/ Photometric Data:
Watt:
Temperatura di colore:
Luminosità
Angolo di diffusione:
Resa Cromatica:
Dati Elettrici: / Electrical Data:
Trasformatore
in dotazione
Tensione d'ingresso (Driver) Input Voltage (Driver):
Fattore di potenza
Dati Meccanici/ Mechanical data:
Temperature di utilizzo
Corpo
Dimensioni
Peso
Pagina 1
39.9PF12120N

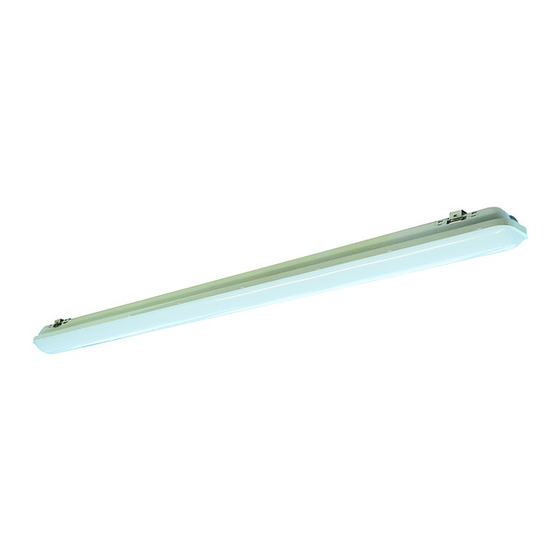

PLAFONIERA LINEARE IP65
Wattage: 36W
Color Temperature: Bianca Naturale / Natural white 4000K
Luminous flux : 3100 lm
Beam angle: BA 140°
CRI : Ra 80
84~99 360mA
Driver: (Ricambio acquistabile separata-
mente/ replacement 39.9PF12120T)
220-240V~50/60Hz 150mA
Power Factor: >0.9
Working Temperature: -20°C a 50°C
Material: Base in ABS + cover PVC
Sizes: 1180x75x66mm
Weight: 1Kg
Tri-proof Light
