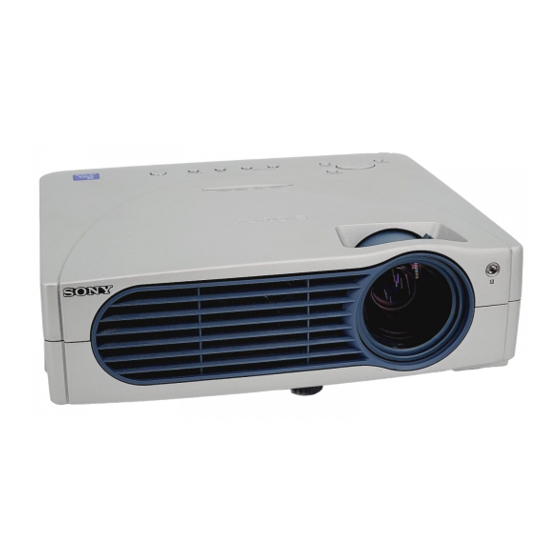

Sony VPL-CX10 Quick Start Reference Sheet

NOTE: This document is intended only as a quick reference for installation – please read the following
SP Controls Application Note for a complete description of this projector driver prior to installation.
I. Driver Features
1. Input Selection Mapping
Selection 1: VIDEO
Selection 2: VIDEO
Selection 3: S-VIDEO
Selection 4: INPUT A (RGB)
2. Hidden Function Mapping
Selection 1: PIC MUTE
Selection 2: ENTER
ADJUST LEFT
Selection 3:
Selection 4: ADJUST RIGHT
Off: MENU
Volume Up: ADJUST UP
Volume Down: ADJUST DOWN

3. Other Driver Features

Power Status Feedback Method
Control Wiring Option
II. Wiring Specifications
NOTE: For a complete wiring diagram, please see the SP Controls Application Note.
Wired Remote/IR Emitter:
Wire the Panel IR/Serial port to a female 1/8" Mini as follows:
IR/SER to tip
GND to ring
Attach to the projector port labeled Wired Remote using a male 1/8" mini to male 1/8" mini (not
included).
Alternately, replace the male to male cable with the included the IR Emitter and attach it to one of the
IR windows on the projector. The emitter glows red when IR is emitted so wiring can be verified.
NOTE: If the projector is controlled via Wired Remote it will no longer respond to the remote control.
DR-SNY03 - 8/30/01
None
Wired Remote or IR Emitter
SP Controls reserves the right to modify specifications without notice at any time.
Quick Start Reference Sheet
Sony VPL-CX10
Revision A
