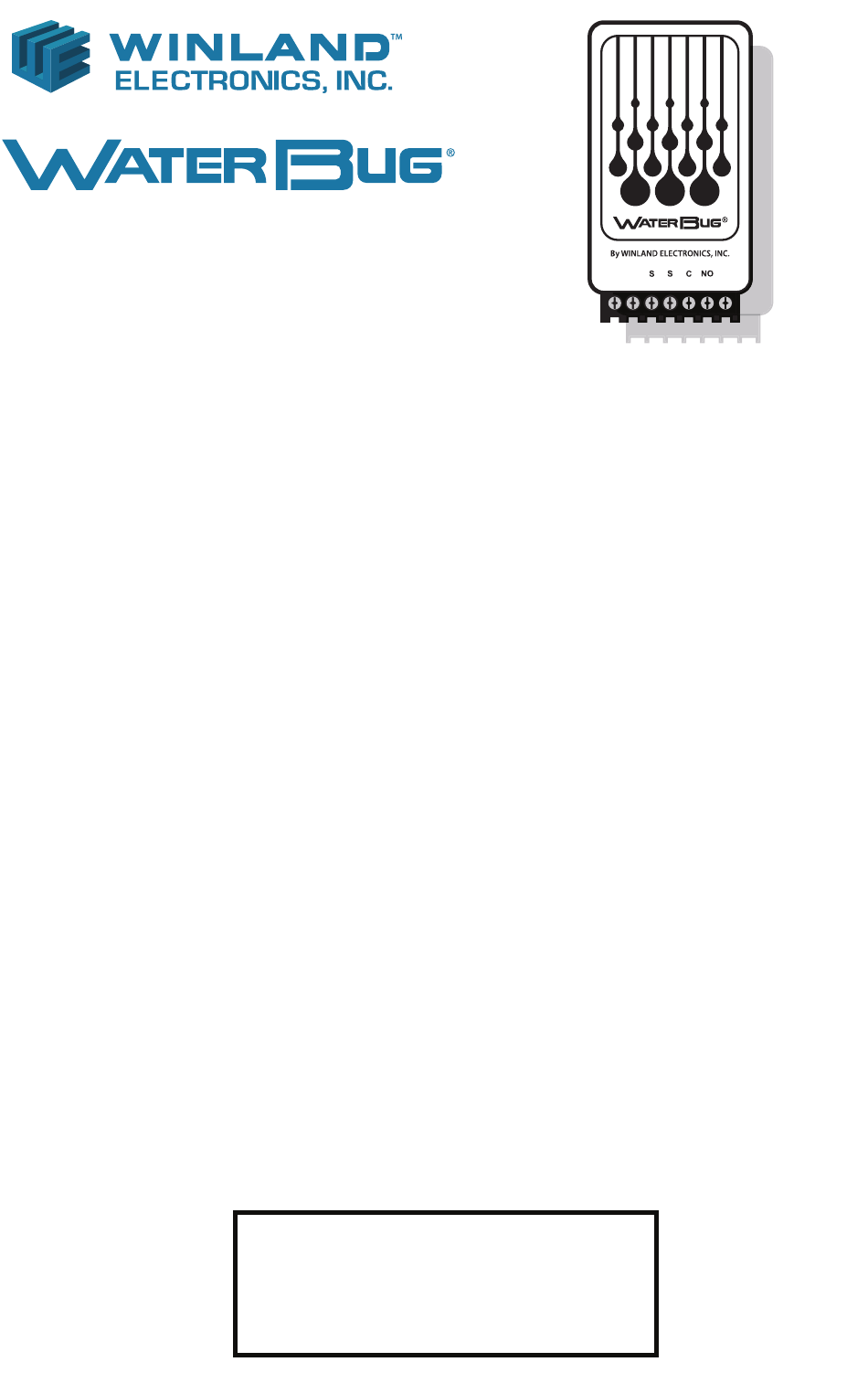

Electronic Water Detection Device
C
ONTENTS
This package contains:
• 1 WB350
• 1 Surface Probe - Unsupervised (W-S-U)
• 1 Installation/Operating Instructions Guide
S
PECIFICATIONS
Power Requirement
Sensitivity
Battery Life
Operating Temp
Output
Buzzer (Integrated)
Probe Options
Max Cable Length
Probe Cable
Console Weight
Console Dimensions
Probe Dimensions
Mounting
Case Material
Warranty
9VDC via alkaline battery @ 40µA (resting)
Will not alarm due to high humidity or condensation.
One to two years (not included)
32˚ to 140˚F (0˚ to 60˚C); non-condensing environment (indoor use only)
Open-collector output
25mA max collector current
30 VDC max on trip line
83 dB @ 30 cm @ 9VDC, pulsed
Includes 1 Standard Unsupervised Surface Probe (W-S-U)
Accepts up to 6 W-S-U wired in parallel
1-2 probes; max recommended distance of 200' (61 m)
3-6 probes; max recommended distance of 100' (30.5 m)
Probes include 15" (4.6 m) cable. Extend using 22-18 AWG twisted pair.
14 oz (0.40 kg)
5 x 2.44 x 1.25" (12.7 x 6.2 x 3.18 cm)
Surface: 2 x 3 x 0.88" (5.1 x 7.6 x 2.2 cm)
Key slot
ABS
1 Year Limited
Tech Support 8:00am - 5:00pm Central Time
(800) 635-4269
www.winland.com
WB350
© 2021 Winland Electronics, Inc.
D-011-0002 Rev E (05/2021)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Winland Electronics WaterBug WB350
Summary of Contents for Winland Electronics WaterBug WB350
- Page 1 Electronic Water Detection Device ONTENTS This package contains: • 1 WB350 WB350 • 1 Surface Probe - Unsupervised (W-S-U) • 1 Installation/Operating Instructions Guide PECIFICATIONS Power Requirement 9VDC via alkaline battery @ 40µA (resting) Sensitivity Will not alarm due to high humidity or condensation. Battery Life One to two years (not included) Operating Temp...
- Page 2 NTRODUCTION Thank you for your purchase of the Winland WaterBug model WB350. The WaterBug is completely electronic and is designed to detect water only (distilled and deionized water cannot be detected). For proper operation this unit must be used in conjunction with an alarm system, wireless transmitter, etc.
- Page 3 ROCEDURES To test the unit’s operational status, form a water bridge between the two metallic contact points (See Figure 2) with a moistened finger or cloth. If working properly, the console will give an audible warning and activate a connected warning device within approximately three seconds.
- Page 4 RODUCT AND CCESSORY UIDE EA200-12 EA400-12 EA200-24 EA400-24 EA800-ip WB200 WB350 WB800 W-S-S W-S-S W-S-S W-S-S W-S-U W-S-U W-S-U W-S-S (Water Probe, Surface, Supervised) The supervised surface probe can be connected to the EnviroAlert products as well as the WB800. The alarm will be activated if water is present as well as if the cable is cut.
