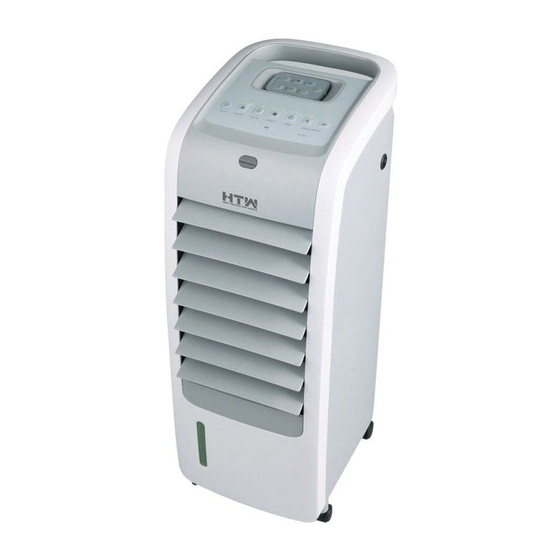

Evaporative air cooler

Hide thumbs

page of 12

/ 12
Bookmarks

Quick Links

Download this manual

OWNER'S MANUAL

EVAPORATIVE AIR COOLER

C./ Industria, 13 l Polígono Industrial El Pedregar

08160 Montmeló

Barcelona (Spain)

Phone: (0034) 93 390 42 20

ALP

Fax: (0034) 93 390 42 05

info@htwspain.com

www.htwspain.com

HTW-EVA70PB-ALP

This product is only suitable for well

insulated spaces or occasional use.

Thanks for choossing our evaporative air cooler.

Please, read carefully this manual

before using the product

Need help?

Do you have a question about the ALP and is the answer not in the manual?

Questions and answers

Summary of Contents for HTW ALP

Page 1 Barcelona (Spain) Phone: (0034) 93 390 42 20 Fax: (0034) 93 390 42 05 info@htwspain.com www.htwspain.com HTW-EVA70PB-ALP This product is only suitable for well insulated spaces or occasional use. Thanks for choossing our evaporative air cooler. Please, read carefully this manual...
Page 2 I WARNING: understand the hazards involved. Children aged from 3 1. This appliance can be used by children aged from 8 years and less than 8 years shall not plug in, regulate and years and above and persons with reduced physical, clean the appliance or perform user maintenance.
Page 3 8.Care should be taken when using the appliance due to the emission of hot water vapor. II. Features (1) Wind mode: Normal wind; (2) Three wind speed grades: high, middle, low; (3) Humidification/Refrigeration; (4) Timing function; (5) There is temperature setting function for hot wind and the temperature can be set as 22℃, 29℃...
Page 4 produce Bi voice: related indicator lights will on for low--middle—high; there is only  Operation panel and Display panel middle wind speed for hot wind. 4. Press “Timer” button to set power off, the time will be set as 1H, 2H, 4H and 8H when pressing the button.
Page 5 Repeat according to above way. b) Under heating status, when the indoor temperature reaches (22℃, 29℃ or 36℃), PTC will stop heating and other function will keep working (fan will keep working), when the indoor temperature is lower than (20℃, 27℃, 34℃), PTC will restart. (E.g. The preset temperature is 29°C, when the indoor temperature is higher than 29°C, PTC will stop heating;...
Page 6 V. Safety Warnings and Precautions To avoid the dangers caused by misoperation and to use the device more conveniently, several  Never insert wooden sticks, metal sticks and  Do not spray insecticides and flammable considerations are given through the following icons. Please get familiar with the icons below, and other objects into the inlet and the outlet.
Page 7  Make sure that the power plug doesn’t stick  Exception handling  When you go out or if the device won’t be  Only use the device with qualified power  When the product has unpleasant smell or foreign body, and fully insert the plug. used for a long time, shut down the device outlet, and the carrying capacity of the outlet ...
Page 8 ●When the water tank is full of water, the 2. Use cleanser and banister brush to clean the Air filter. machine cannot be lifted by handle, or the 3. Dip the honeycomb filter assembly into cleanser for several minutes, then clean and dry it. water will spill.
Page 9: Environmental Protection
VII. Technical Parameters HTW-EVA70PB-ALP Product model Rated voltage 220 -240V～ Rated frequency 50 Hz Rated power Cooling:70W; Heating:2000W Dimensions L/250mm×W/330mm×H/704mm 10Kg Net weight Gross weight 12Kg Environmental Protection This marking indicates that this product should not be disposed with other household wastes throughout the EU.
Page 10 ·Information requirements for the electric local space heaters. electronic room temperature This product is only suitable for well insulated spaces or occasional use. control HTW-EVA70PB-ALP with electronic room Item Symbol Value Unit Item Unit temperature control Type of heat input, for electric storage local...
