Magikitch'n MKO30 Installation & Operation Manual

Built in models with fixed gas supply

Advertisement

Quick Links

IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this manual
for the life of the equipment:
Model #: ___________________________
Serial #: ___________________________
Date Purchased: ____________________

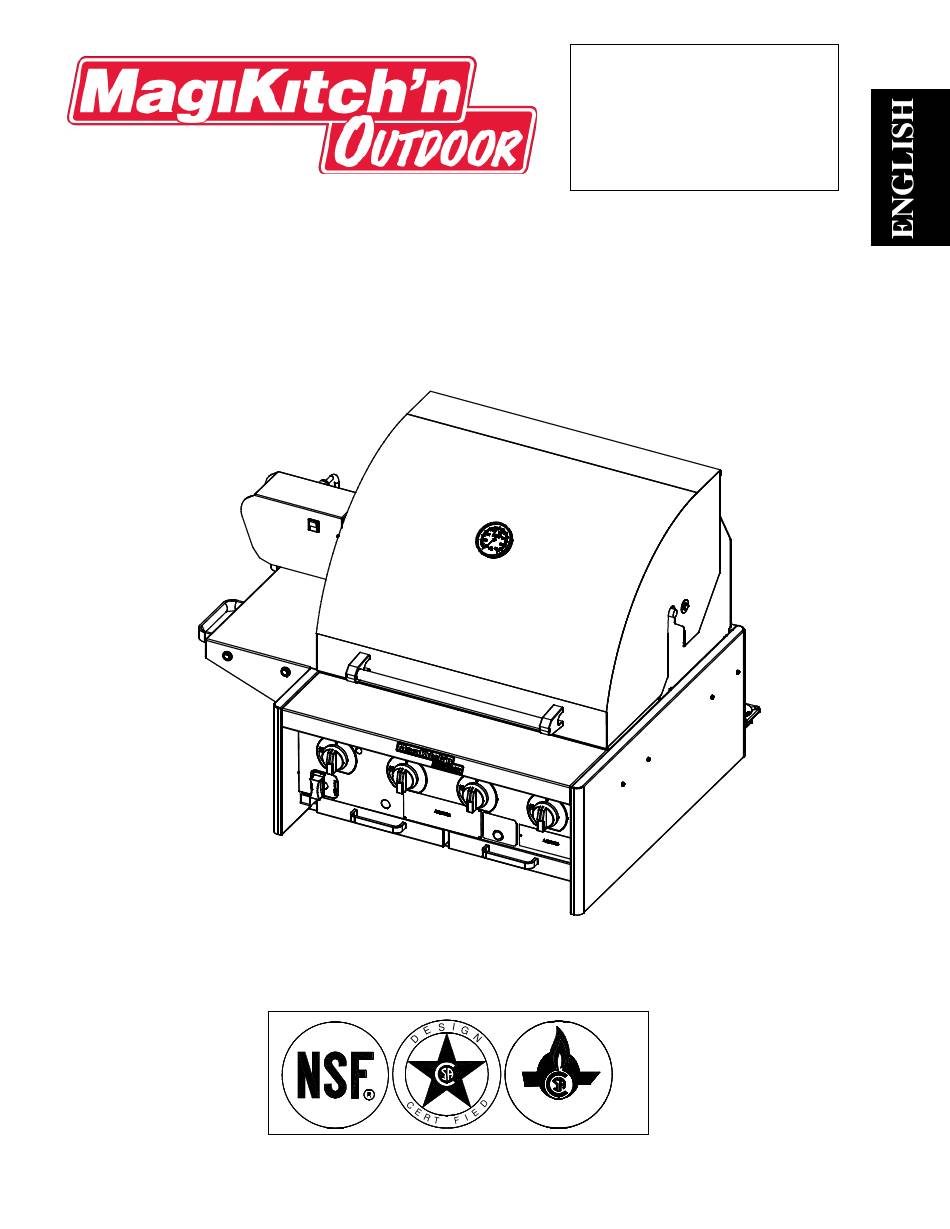

COMMERCIAL OUTDOOR COOKING APPLIANCES
Installation & Operation Manual
MKO30, MKO45 & MKO60
Built In Models with Fixed Gas Supply
MKO30 SHOWN WITH
OPTIONAL EQUIPMENT
MODULAR OUTDOOR COOKING SUITES
C
E T
R
I
F E D
I
I
L25-059 R0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MKO30 and is the answer not in the manual?

Questions and answers

Summary of Contents for Magikitch'n MKO30

  • Page 1 Model #: ___________________________ Serial #: ___________________________ Date Purchased: ____________________ COMMERCIAL OUTDOOR COOKING APPLIANCES Installation & Operation Manual MKO30, MKO45 & MKO60 Built In Models with Fixed Gas Supply MKO30 SHOWN WITH OPTIONAL EQUIPMENT MODULAR OUTDOOR COOKING SUITES F E D...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS     SAFETY INFORMATION ................................3     ASSEMBLY INSTRUCTIONS ................................ 5     2.1. Cabinet Frame Assembly ................................5     INSTALLATION INSTRUCTIONS ..............................7     3.1. Gas Information ..................................7     3.2. Gas Connection(s) ..................................7  ...
  • Page 3: Safety Information

    1. SAFETY INFORMATION Post in a prominent location the instructions to be followed in the event that an operator smells gas. Obtain this information from your local gas supplier. FOR YOUR SAFETY DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS OR LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE WARNING Improper installation, adjustment, alteration, service or maintenance can cause property...
  • Page 4 This appliance is intended for installation in non-combustible locations only. Do not locate this appliance under overhead unprotected combustible surfaces. For use only with the pressure regulator and piping assembly supplied with this appliance. Use only MagiKitch’ n supplied replacement parts. If the runner tubes or burners fail to light or remain lit, discontinue use of the appliance.
  • Page 5: Assembly Instructions

    2. ASSEMBLY INSTRUCTIONS 2.1. Cabinet Frame Assembly FIGURE 1 These parts are included in your charbroiler package unless otherwise noted, some assembly required, see Figure(s) 1&2: CABINET FRAME PARTS LIST ITEM # DESCRIPTION QTY MKO30 QTY MKO45 QTY MKO60 COOKING GRIDS BURNER RADIANTS CABINET FRAME RUNNER TUBE COVER(S) WATER TUBS (Drain Optional) SIDE SERVICE SHELF (Optional) 3/4" NPT GAS REGULATOR (Figure 2)
  • Page 6 A. Remove shipping bands from carton. B. Remove top of carton, locate the serial number on the data information plate and write in the information block on the cover of this manual for future reference. C. Remove cooking grids(s), (1) from unit and set aside. D.
  • Page 7: Installation Instructions

    3. INSTALLATION INSTRUCTIONS Note: This appliance is intended to operate on a fixed gas supply. Appliances may be installed in locations with non-combustible materials in accordance to the information provided in Section 3.5 of this manual. This unit is not approved for installation in locations with combustible materials.
  • Page 8: Enclosure Installation Information

    3.5. Enclosure Installation Information FIGURE 3...
  • Page 9 NOTES, FIGURE(S) 3 & 3A: 1. Enclosure is to be made from non-combustible materials only. Failure to comply will result in an unsafe condition, and may result in serious injury or death. Appliance is intended for outdoor commercial use only, and must not be installed under a canopy, hood or any other type of covering.
  • Page 10: Appliance Diagram

    4. APPLIANCE DIAGRAM FIGURE 4 4.1. Operational Features The diagram above outlines some of the key operational components of your appliance, see Figure 4. 1. Pilot Knob, I/O (On/Off) In the “On” position this knob will allow gas to flow to the pilot runner tubes, and the gas supply for the main burners. (*Models 45 and 60 may have two (2) pilot knobs), 1 on the left and right side of the appliance.
  • Page 11: Basic Operation

    7. Chrome Plated Griddle, (Optional Equipment) To use the griddle plate option, replace one (1) cooking grate where desired. CAUTION: Never try to remove a hot griddle or cooking grate, always allow the cooking surface to cool to room temperature. Failure to do so cause result in severe personal injury, or death. 8.
  • Page 12: Optional Side Burner Lighting Instructions

    5.2. Optional Side Burner Lighting Instructions Prior to lighting the unit, make sure all gas valve knobs are in the “Off” position, proceed when all gas valves are closed. If the side burners are covered to protect against the weather, you must uncover the side burners prior to lighting.
  • Page 13: Rotisserie Operation

    The appliance should be cleaned after each use to maintain proper function and appearance. The build up of grease and other debris can cause improper operation, or an appliance malfunction. Allow the appliance to cool to room temperature prior to performing any of the following cleaning procedures. It is also recommended to wear eye protection, and oil resistant gloves while cleaning this appliance.
  • Page 14 To assemble the rotisserie refer to the following steps; refer to figure 6 unless otherwise instructed. FIGURE 6 The rotisserie motor housing assembly (13) is mounted and adjusted with six mounting knobs (21). If needed, the rotisserie can be removed without tools for storage by removing the three mounting knobs that attach the assembly to the side shelf.
  • Page 15: Griddle Operation

    (17) to secure the product to the spit (16). For best results, the adjustment knobs (21) should press against the flat surface on the spit (16). B. Prior to placing the loaded spit onto the spit bearings (22), wipe any food debris off of the spit (16). Place the loaded spit (16) into the spit bearings (22) so the pierce tip of the spit (16) points towards the motor housing (13).
  • Page 16: Important Service Information

    7.2. Important Service Information All maintenance and /or repairs to this appliance should be performed by an Authorized Service Professional. Please contact the factory representative, or the factory directly to locate the Authorized Service and Parts (ASAP) agency in your area. Any defective parts must be returned for replacement under this warranty. When calling or writing, be sure to mention the serial number and model number appearing on the nameplate on the front of your equipment.

This manual is also suitable for:

Mko45Mko60
