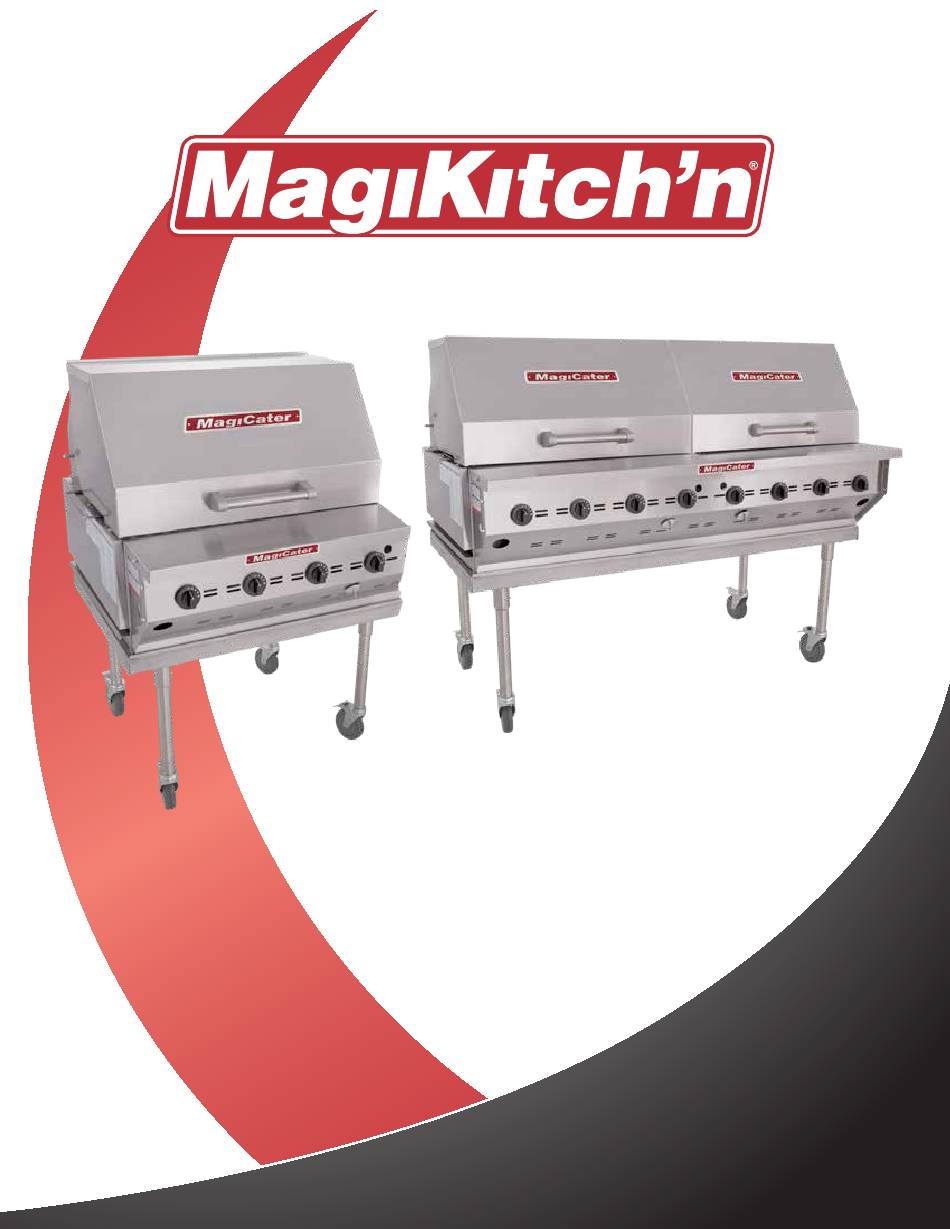

- Page 1 OPERATION MANUAL ULTIMATE SERIES OUTDOOR CHARBROILERS SERIES: LPAGA...
- Page 2 OUTDOOR GAS CHARBROILER OPERATION MANUAL OUTDOOR GAS CHARBROILERS Outdoor Gas CharBroiler Models: LPAGA-30S & LPAGA-60S This equipment is design engineered for commercial use only. All gas operated Magikitch’n charbroilers are intended ® for use with the type of gas specified on the rating plate and for installation will be in accordance with National Fuel Gas Code ANSI Z223.1 (latest edition).
-
Page 3: Table Of Contents
OUTDOOR GAS CHARBROILER OPERATION MANUAL TABLE OF CONTENTS INSTALLATION INSTRUCTIONS MAINTENANCE INSTRUCTIONS Safety Precautions Cleaning Instructions Unpacking Instructions Burner/Orifice Inspection Assembly Troubleshooting Chart Connecting The Gas Lines To The Propane Tanks ACCESSORIES Installing Tank Caddies Instructions for Installing Char Broiler Accessories Leak Testing EXPLODED VIEWS &... - Page 4 OUTDOOR GAS CHARBROILER OPERATION MANUAL INSTALLATION INSTRUCTIONS Safety Precautions 8. Broiler must be disconnected from gas supply (Must Be Posted In A Prominent Location) during any pressure testing of pipelines in excess of ½ psig (3.45 kPa), and isolated (by turning off gas shut-off valve) during any testing less than ½...
-
Page 5: Unpacking Instructions
OUTDOOR GAS CHARBROILER OPERATION MANUAL INSTALLATION INSTRUCTIONS Unpacking Instructions: 5. Lift frame assembly from carton and set aside. Carefully unpack the broiler and inspect immediately for 6. Lift base from carton and place it upside down on shipping damages. Your outdoor boiler was shipped in a ground. -
Page 6: Connecting The Gas Lines To The Propane Tanks
OUTDOOR GAS CHARBROILER OPERATION MANUAL INSTALLATION INSTRUCTIONS Connecting The Gas Lines To The Propane Tanks NOTICE • New propane tanks are shipped empty with no The 40-lb LP cylinders have a Type I ACME pressure and must be purged of air and filled service valve with a one-way valve that only with propane per NPGA (National Propane Gas allows propane to flow out of the valve. -
Page 7: Installing Tank Caddies
OUTDOOR GAS CHARBROILER OPERATION MANUAL INSTALLATION INSTRUCTIONS Installing Tank Caddy: Propane dealer will not fill a 40 lb cylinder because it does not have the correct valve with an OPD • Our unit is equipped with a tank caddy. It has to installed: be placed underneath the broiler and secured in place by (2) hooks provided (see fig. -
Page 8: Lighting Instructions
OUTDOOR GAS CHARBROILER OPERATION MANUAL LIGHTING INSTRUCTIONS Lighting Instructions: the unit. Wait 5 minutes before attempting to re- light the unit. (See Figure “B”) Fill water pans to within 1/2” of top edges (this will control grease flare-ups, provide for ease of cleaning 4. -
Page 9: Maintenance Instructions
OUTDOOR GAS CHARBROILER OPERATION MANUAL MAINTENANCE INSTRUCTIONS Burner / Orifice Inspection Cleaning Instructions • Clean the unit regularly after use. 1. Remove the front shelf by removing the two screws at the ends. • Top Grates: after removing from the unit, use warm soapy water and a stiff bristled brush or plastic 2. -
Page 10: Troubleshooting Chart
OUTDOOR GAS CHARBROILER OPERATION MANUAL MAINTENANCE INSTRUCTIONS Troubleshooting Guide Problem Probable Cause Solution Burners & L.P. tank empty Replace with fresh tank. carryover will not L.P. tank valve closed. Open valve. turn on Burners produce Incorrect gas type. Supply correct type gas. excessive carbon Incorrect gas pressure Call local gas supplier. -
Page 11: Accessories
OUTDOOR GAS CHARBROILER OPERATION MANUAL ACCESSORIES Instructions For Installing Outdoor Charbroiler Accessories Your new Charbroiler has been shipped in several cartons, partly assembled. Please follow the instructions below which detail the assembly of hoods, tank caddy and stand. Mount top of stand on legs and tighten w/screws provided. Place broiler on stand. -
Page 12: Exploded Views & Parts Lists
OUTDOOR GAS CHARBROILER OPERATION MANUAL EXPLODED VIEWS & PARTS LISTS Exploded View – LPAGA-30S & LPAGA-60S Exterior / Interior... - Page 13 OUTDOOR GAS CHARBROILER OPERATION MANUAL EXPLODED VIEWS & PARTS LISTS Exterior/Interior Item Description Item Description 21840812 PANEL, CHAMBER BACK 60” 21840520 BURNER 21840515 PANEL, CHAMBER SIDE RIGHT 21840530 RADIANT 8204000 C/S HX HD #5 1/4-20 X 1/2 ZN 21840523 TUBE, CARRY-OVER RIGHT 8431500 NUT, HEX, KEPS, 1/4-20 2068874...
- Page 14 OUTDOOR GAS CHARBROILER OPERATION MANUAL EXPLODED VIEWS & PARTS LISTS Exploded View – Manifold, Burner, Valve, Orifice, Pilot Tube Item Description Item Description 21840520 Burner 21840817 Carry-over Tube, Left 2068000 Gas Valve (no knob) 21840523 Carry-over Tube, Right 8706410 Knob, Gas Valve, ON-OFF Q1459A Screw, 10-32 x 3/8 2092517...
-
Page 15: Warranty
OUTDOOR GAS CHARBROILER OPERATION MANUAL MAGIKITCH’N LIMITED WARRANTY WHAT IS COVERED This warranty covers defects in material and workmanship under normal use, and applies only to the original purchaser providing that: • The equipment has not been accidentally or intentionally damaged, altered or misused; •... - Page 16 IMPORTANT FOR FUTURE REFERENCE Please complete this information and retain this manual for the life of the equipment. For Warranty Service and/or Parts, this information is required. Model Number Serial Number Date Purchased NOTES...
- Page 17 NOTES...
- Page 18 265 Hobson Street, Smithville, TN 37166 Phone 800-264-7827 | info@star-mfg.com | magikitchn.com Be sure to keep up with new product announcements and events on social media! Social icon Square Only use blue and/or white. For more details check out our Brand Guidelines.
