- Page 1 3D VISION ™ QUICK START GUIDE...
- Page 2 www.nvidia.com...
-
Page 3: Minimum System Requirements
> All GeForce 400/300/200/ • ViewSonic FuHzion ® ™ 100 Series VX2265wm 120 Hz LCD display • 100 Hz and higher analog CRTs Note: Please visit www.nvidia.com/3dvision for a full list of supported GPUs and supported 3D Vision Ready displays. - Page 4 EQUIPmENT The following parts and assemblies are included in the NVIDIA 3D Vision box. Wireless Glasses IR Emitter DVI-to-HDMI Cable Two USB Cables (For use with DLP HDTVs) (6’ and 10’) Storage Pouch VESA 3-pin Stereo Cable Cleaning Cloth Software and Manuals CD with...
-

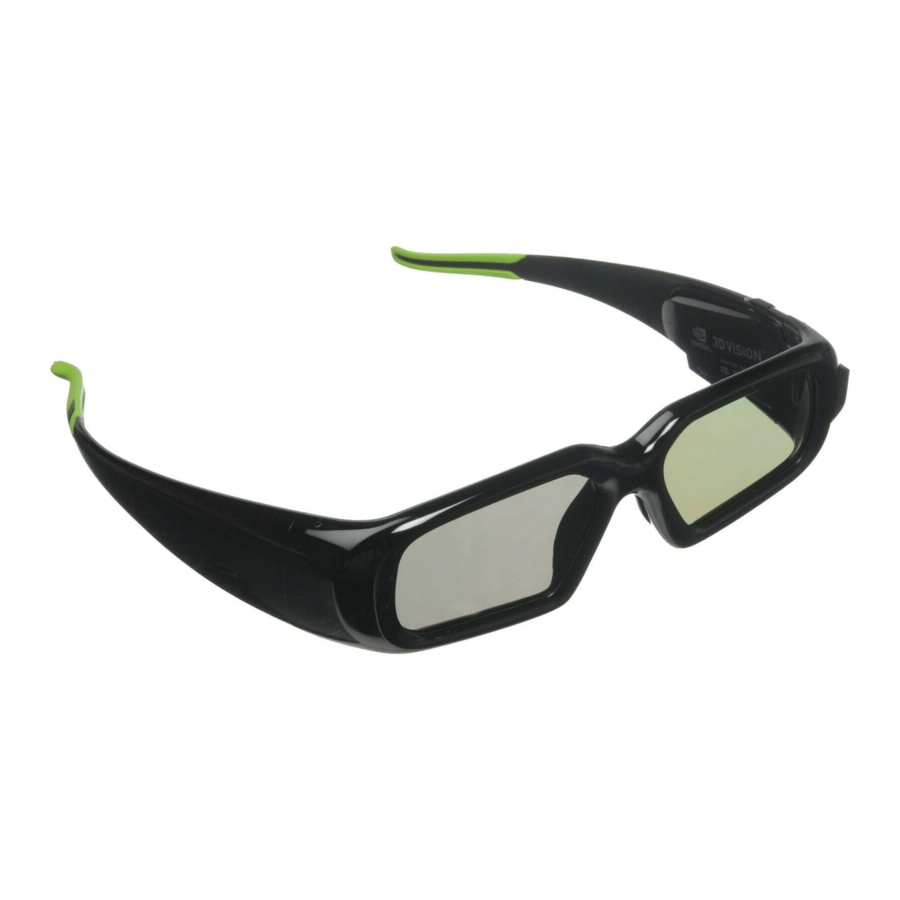

Page 5: Wireless Glasses
Note: 3D Vision glasses are designed to fit over most standard glasses. Attention: The 3D Vision glasses are not prescription eyewear, sunglasses, nor a protective goggle. Do not use the glasses for any general eyewear purposes (e.g., driving, reading, protection from sunlight or ultraviolet light, etc.) as such use may... - Page 6 For DLP HDTVs, connect VESA stereo cable to display. Power indicator light Back of IR Emitter USB connection to computer Backlit 3D Vision ON/OFF button Front of IR Emitter Note: The effective range of the IR Emitter is 15 feet.
-
Page 7: Installation And Setup
> Restart your computer * If you are replacing a non NVIDIA graphics card, be sure to remove the graphics driver and power down your system to replace the card before continuing. Insert the 3D Vision Software and Manuals CD drivers. - Page 8 INSTALLATION AND SETUP Test your hardware setup. This screen is used to verify that your hardware is properly configured to view stereoscopic 3D effects and that your glasses and emitter are functioning properly. Follow the directions on the screen. If you cannot see the proper images, the Setup Wizard will not continue until the hardware issue is resolved.
- Page 9 3D Vision will not be enabled. Setup Complete. Congratulations! You are now ready to see in stereoscopic 3D! For detailed information on the NVIDIA Control Panel, refer to the 3D Vision User Guide located on the CD. Please visit www.nvidia.com/3dvision/support to access our 24x7x365 online knowledgebase system, where you can submit questions to our tech support staff.
-
Page 10: Game Compatibility
NVIDIA has tested and provided built-in driver profiles for many of the top selling games to ensure they work properly with 3D Vision. All games that have been tested are listed in the NVIDIA Control Panel with their Compatibility rating. - Page 11 CONFIGURATIONS DLP HDTV Connection Diagram HDMI Port IR Emitter VESA 3-pin stereo cable 3D Glasses Emitter Port DVI-to-HDMI Cable USB Cable Attention: Check your DLP’s manual to see if there is a specific HDMI port used to connect a PC to your HDTV. In addition, change the input mode on the TV’s menu to PC or Computer to ensure the TV can process the video signal correctly.
- Page 12 CONFIGURATIONS 120 Hz LCD Connection Diagram IR Emitter USB Cable Dual link DVI cable (supplied with the display)
- Page 13 www.nvidia.com...
