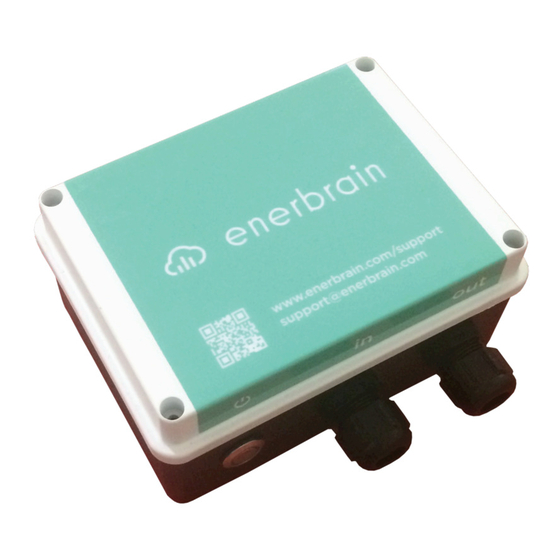

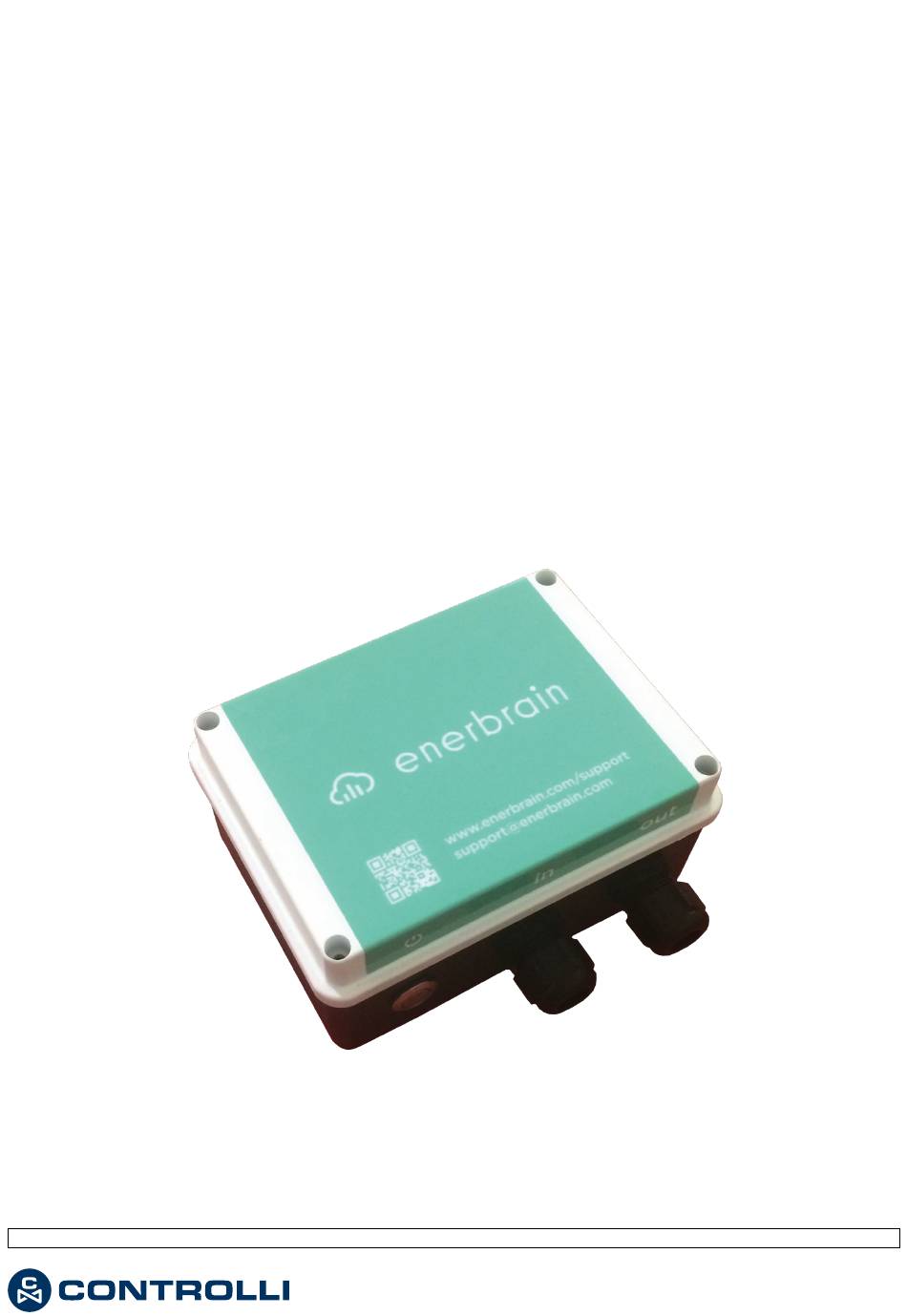

- Page 1 Remote IoT relais Installer’s manual Issue 11/19 DIM310e CONTROLLI S.p.A. - 16010 Sant’Olcese (GE) - Italy Tel. +39 010 73061 | Fax +39 010 7306870/871 info@controlli.eu | www.controlli.eu...
-
Page 2: Main Parts
To be powered by 24V AC/DC. - 24V IN RED WIRE eNodeDO box to not be opened without 24V ac-dc Power supply + 24V prior authorization by Controlli. OUTPUT BLACK WIRES Signal or wire to be interrupted Issue 11/19 DIM 10e... -
Page 3: Installation Is Now Complete
Power the eNode with a 24V power source To power the eNodeDO you need a 24V (AC/DC) power cable. This can be newly installed in any electrical cable using a standard 220V>24V transformer, or can be found on site as often available in the technical rooms. - Page 4 FINAL STEP: COMMUNICATE WITH CONTROLLI Once the installation of this eNode is complete, turned ON correctly and with the registrazione@controlli.eu green LED on, please send to a picture of this page. ADD HERE THE EXTRA LABEL OF THE ENODE THAT...
- Page 5 - Turn off the eNode by pressing the button - Turn ON the eNode by pressing the button again - Wait for approximately 3 minutes. If still the LED is off please contact Controlli Support. The eNode is studied to resist most weather...
