Fiber Couplers Series 60FC-A19.5
Fiber Couplers Series 60FC-A19.5
The Schäfter+Kirchhoff fiber couplers series 60FC-A19.5 collimate the radiation from a polarization-maintaining
single-mode fiber or from a multi-mode fiber.
This document provides assistance in installing and adjusting the fiber couplers series 60FC-A19.5. It
describes, how a fiber cable is attached and how the collimation setting is adjusted. Additionally it describes
how the series 60FC-A19.5 fiber couplers reversely are used as an in-coupler for multi-mode fiber cables.
1.
Before You Start
The fiber coupler is shipped with a protection cap for the fiber receptacle and with a front cap.
Notice:
There is a two-part protection cap on the receptacle. Please perform the following steps in order to remove
this cap:
Adjustment_60FC-A195
18.05.2021
Schäfter+Kirchhoff GmbH Kieler Str. 212 22525 Hamburg, Germany
Please remove all the protection caps first and do not use them as beam
dumps (risk of photo contamination).
© Schäfter+Kirchhoff GmbH

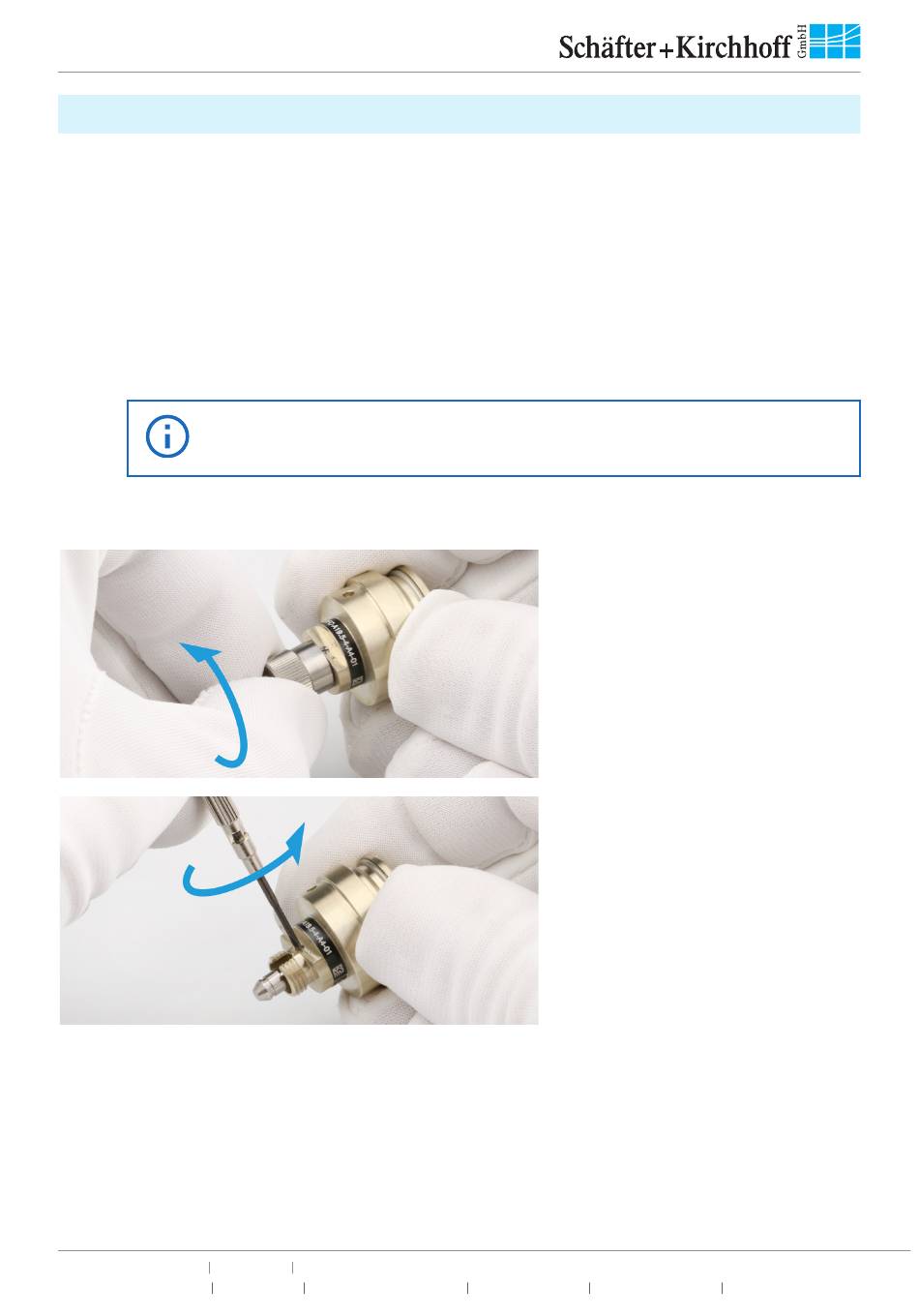

Figure 1:
First, remove the threaded cap from
the fiber receptacle of the fiber
coupler.
Figure 2:
Then, slightly loosen the small pin
screw. Use the screwdriver 9D-12.
Make sure to not loosen it too far, as it
is small and easily lost.
+49 40 85 39 97-0 info@sukhamburg.de www.sukhamburg.com
1
