Summary of Contents for Cuckoo CAC-K1910FW

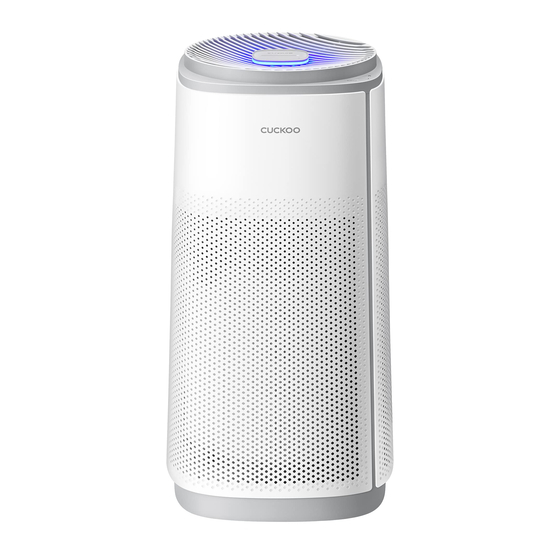

- Page 1 AIR PURIFIER USER MANUAL CAC-K1910FW...
-
Page 2: Important Safeguards
Important Safeguards Read and save these instructions. Do not bend, tie or pull the Power Cord by force. Stop using the product if the Power Cord or the Power Plug is damaged or the Power Outlet is unstable on the wall. Please contact our Customer Service Center. When putting in or pulling out the Power Plug, first remove moisture from your hands and then put in or pull out the Power Plug by holding the Power Plug. -
Page 3: Warnings For Safe Use
Warnings for Safe Use ● Read and save these instructions. ● Please comply with the ‘Warnings for Safe Use’ as they are provided to ensure safe and proper use of the device and prevent accidents and dangerous situations. ● The ‘Warnings for Safe Use’ section is divided into ‘Warning’ and ‘Caution,’ which are defined as follows: Warning This symbol is to remind you to be cautious about a ●... - Page 4 Warnings for Safe Use About the Power Supply Do not Warning If water enters the power supply Do not put the product or anything area, unplug the product and heavy on the Power Cord. dry it completely before use. It may cause damage to the Power ●...
-
Page 5: During Use
Warnings for Safe Use Installation Guide Warning Instruction 60cm Please check if there is any obstacle Place the product at least 50cm away Circulation around the product to ensure good on the sides and 60cm away on the 50cm 50cm air circulation. - Page 6 Warnings for Safe Use During Use Do not Warning Never soak the product in water. Do not place a bowl with water, drugs, foods, small metallic materials, inflammables, etc. on top of the product. There is a risk of electric shock. ●...
- Page 7 Name of Parts / Accessories 각 부분의 명칭 / 부속품 안내 각 부분의 명칭 / 부속품 안내 본체(AC-XH Series) 본체(AC-XH Series) Part names Front 기능조작부 및 Display Panel 기능조작부 및 Air Outlet 공기배출구 공기배출구 기능표시부 기능표시부 Control Panel Handle 손잡이 손잡이...
-
Page 8: Part Description
Part Description Air Purifying Pre-Filter Allergen Filter True HEPA (H13) Filter Activated Carbon Filter Section Ultra-Deo PM 2.5 Filter Level 1 Pre-Filter Level 2 Allergen Filter Level 3 True HEPA (H13) Filter Level 4 Activated Carbon Filter Filter Functions Removes dust, pet fur, and other larger particles. It also helps extend the Pre-Filter life cycle of the of the filters. - Page 9 Details to Check Before Use Caution Caution: When not using this product for an extended period of time, pull out the Power Plug.This product is exclusively for 120V~, 60Hz. Put the Power Plug in the appropriate Power Outlet. Details to Check Before Use Open the filter cover.
-
Page 10: Control Panel And Display Panel
Names and Functions of Control & Display Panel Control Panel and Display Panel Display Panel Control Panel Lit during Auto Air Purification operation • – Lit during Sleep Air Purification operation – • Displays the fan speed – • Lit when a filter needs replacing –... -
Page 11: Self-Diagnostic Mode
Self Diagnostic Mode / Basic Operation of Display Panel Self Diagnostic Mode If the display panel continues to illuminate under normal conditions or after an action is taken, please contact our customer service center. This will indicate an issue with the filter cover. Re-install the filter cover. -
Page 12: Operating Modes
Operating Modes Operating Modes Auto+ Mode will automatically adjust air volume AUTO+ according to the surrounding environment. To conserve energy, the fan will turn off when air quality is good. POWER • To start auto mode, press the Power Button while in standby Mode. (It is operated in Auto Air Purification for initial entry and, if there is previous operation history, it is operated in the previous mode.) •... - Page 13 Operating Modes MANUAL Allows you to select the fan speed. MODE • To enter manual mode, press the mode button twice while in Auto Mode. • Press the mode button to set desired fan speed (Lo, M, Hi). < Manual Gear Lo > <...
-
Page 14: Other Settings
Guide and Other Settings for each Operational State Operation Status Information Air Quality Level Display Level 1 Level 8 Pollution Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 Level (Clean) (Poor) Light Quality Blue Sky Blue Green Yellow Orange Purple... - Page 15 Cleaning and Maintenance Guide How to Clean the Fine Dust Sensor (Clean once every one to two months) Open the filter cover from the back. ❶ Open the cover of the Fine Dust Sensor. ❷ Clean first with a soft brush. ▶...
- Page 16 Cleaning and Maintenance Guide How to Clean the Pre-Filter (Clean once every two to four weeks.) • Clean the pre-filter once every two to four weeks. • Pre-filter can be reused when you remove the dust and/or clean it with water. •...
-
Page 17: How To Replace The Filters
• If you exceed the filter cleaning or replacement cycle, the performance may deteriorate or an odor may develop. • Please use genuine CUCKOO filters only. Otherwise, this may hinder the performance or cause the air purifier to breakdown. • Do not use if the surface of the Air Purification Filter is torn or wet. Instead, replace with a new filter. - Page 18 Please check before asking for Support. If used incorrectly and/or not in accordance with the manual, the product may not work properly. ▼ Please take the following measures accordingly if there is a problem with the product. If a problem persists, please contact our Customer Service Center.
-
Page 19: Product Specifications
Product Specifications Category Air purifier Model name CAC-K1910FW Rated Voltage and Current 120V~, 60Hz Rated Power Consumption 60W (1A) Dust Collecting Method Mechanical dust collecting method Safety Device Power is blocked when the door is being opened or closed Place for Use...
