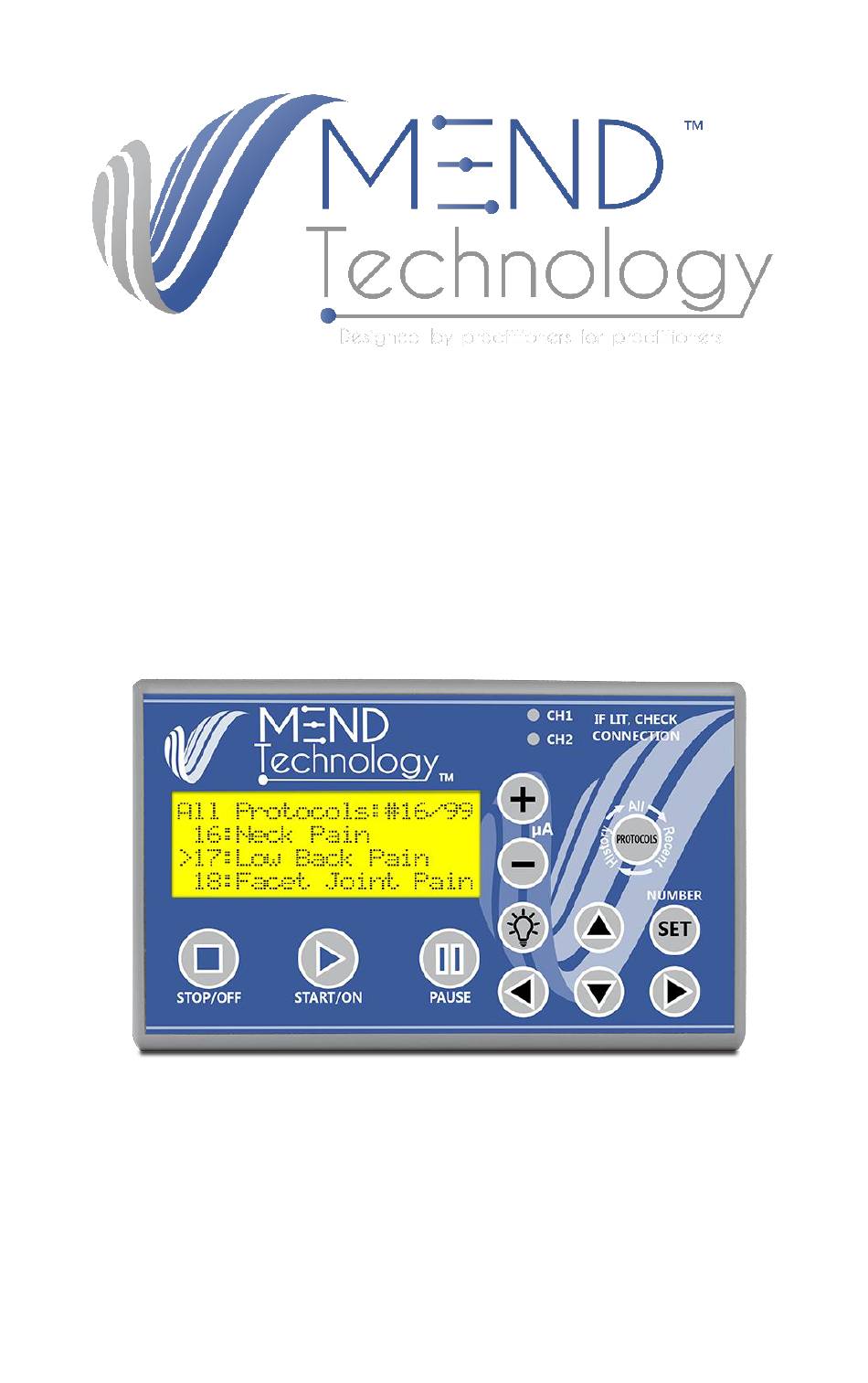

  • Page 1 MEND Wellness (IS02LCDs) User’s Manual Ver 1.8 2021.9.17...
  • Page 2 Phone: 503-594-4045 Fax: 503-594-4046 © 2021 MEND Tech, LLC. All rights reserved. MEND Technology and the logo are the trademarks of MEND Tech, LLC. Trademarks or registered trademarks are the property of their respective holders. Software and specifications are subject to change without notice.

  • Page 3: Table Of Contents

    Indications ........................5 Warnings and Contraindications ................5 Adverse Effects ......................6 Precautions .........................6 Warranty and Service ....................7 MEND Wellness Device and Accessories ..............8 Top Panel and Keypad .....................8 Rear Panel ........................9 USB Port ........................9 Microcurrent Output Ports ................... 10 Accessories ......................10 Operations ........................
  • Page 4 Stop the batch ....................19 Settings – MAIN MENU ..................20 To change Settings .................... 20 To turn ON/OFF key beeping ................20 To turn ON/OFF protocol end beeping ............. 20 To change the OUTPUT Drive ................20 About ......................... 20 To go to About....................

  • Page 5: Introduction

    (IS02LCDs) device. The MEND Wellness is the most advanced two channel programmable transcutaneous electrical nerve stimulator or "TENS" device currently available. MEND Technology is a leading innovator and distributor of state-of-the-art medical devices. The MEND Wellness is a high-end precision medical device used for the relief of pain.

  • Page 6: Adverse Effects

    pacemaker) should not be subjected to stimulation unless specialist medical opinion has first been obtained. • Do not allow children to use or handle this device. Keep the device and lead wires away from children when not in use. Strangulation could result from baby or child entanglement in the wire leads.

  • Page 7: Warranty And Service

    Lead wires have a limited warranty of 3 months. To replace products or obtain service, first call your doctor or MEND Technology. If necessary, send the entire unit with the carrying case and accessories, insured, postage prepaid, and well packaged, along with the Return Merchandise Authorization number obtained from MEND Technology.

  • Page 8: Mend Wellness Device And Accessories

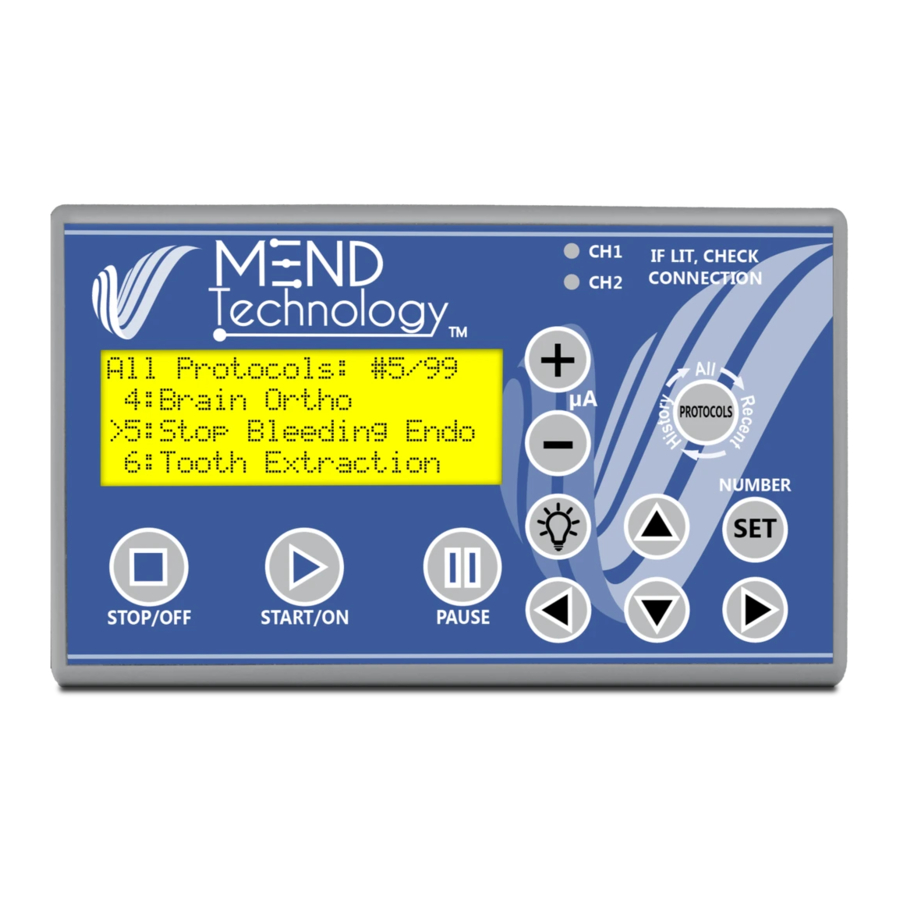

    MEND Wellness Device and Accessories Top Panel and Keypad Figure 1 Top Panel Display Area: Menu selection, protocol information, running information and status, etc. are displayed on LCD screen. Channel Status: LED CH1 and CH2 indicate if the output current can reach their peak current value in the protocol for channel 1 and channel2, respectively.

  • Page 9: Rear Panel

    USB Port The micro USB port is for communication with the computer only, not to supply power to the MEND Wellness device. The MEND Wellness only operates with battery power supply. Equipment that is connected to the Micro USB port interfaces must be certified according to the respective EN/IEC/UL standards.

  • Page 10: Microcurrent Output Ports

    Microcurrent Output Ports Output Jacks Plugs Connection Connector CH2+ Combined Channel Output Jacks Positive Jack Ring CH1+ Yellow CH2- Blue Negative Jack(-) Ring CH1- Green Table 1 Color Mapping of Output Ports to Wire Connectors Accessories The MEND device can be used with various accessories that can be purchased individually.

  • Page 11: Operations

    Insert batteries here Connect Wires to the MEND Wellness device Insert the plugs into the jacks on the rear panel of the MEND Wellness device. Match the color of the plug with the color on the rear panel.

  • Page 12: Connect Wires To Gloves, Strips Or Electrodes

    It is recommended to leave the wires and buttons connected to the gloves and leave the plugs inserted in the MEND Wellness after use. If you want to unbutton the electrode wires from the gloves, hold the button base on the gloves instead of holding the fiber part of the gloves to avoid damage to the gloves.

  • Page 13: Basic Operations

    Select a Protocol There are a number of stored therapy protocols in the MEND Wellness IS02LCDs. Please follow your health care practitioner’s instruction regarding the protocols to be used for your pain complaints.

  • Page 14: To Quickly Jump To A Protocol

    Use the arrow keys UP and DOWN to browse through the protocol list. To quickly jump to a protocol number: When the “All Protocols” screen is displayed, press the SET key and look to the top right corner of the display. The edit cursor will flash on either the ones or tens digit of the protocol number.

  • Page 15: Run A Therapy Protocol / Hold The Timer

    Run a Therapy Protocol Press the START key to run a protocol. The protocol will start to run and there will be microcurrent from the output jacks. The protocol will stop after the programmed run time. If you do not start another protocol, unit...

  • Page 16: Turn Power Off

    Turn power off Depending on which screen you are on, continue to press the STOP/OFF key to turn off the MEND Wellness The unit will power off automatically if the unit is not in use for 60 seconds.

  • Page 17: Advanced Operations And Display Information

    Current frequency pair number and remaining time remaining time During the running of the protocol, the MEND Wellness uses two LED lights to indicate the output connection. If the channel status LED CH1 or CH2 turns on or flashes, check that your leads are inserted firmly into the jacks and your pins are plugged into the conductive material.

  • Page 18: Make Run Time Changes

    Make Run Time Changes To change output current intensity μA: Press the ‘+’ key to increase the current intensity value or press the ‘-‘ key to decrease the current intensity value. Or press the Number SET key multiple times until the edit cursor has moved to the output current position, then use the arrow keys to change the value.

  • Page 19: Select A Protocol For The Slot

    Select a protocol for the slot: Press RIGHT key to enter to the protocol selection menu. Select from other protocols: Press Protocols key to rotate between All Protocols, Recent Protocols and History Protocols. Use UP/DOWN arrows to select a protocol. See Select a Protocol on page 13.

  • Page 20: Settings - Main Menu

    Settings – MAIN MENU To change Settings: press the BACK arrow to go to Main Menu and use the UP/DOWN arrows to select Settings, then press the RIGHT arrow to enter into the Settings screen. Press the SET key multiple times until the edit cursor has moved to the desired setting;...

  • Page 21: Low Battery Indication

    and estimated time that the batteries could run for protocols. The battery run time varies on the output current levels of the protocols. (Note for software users: If you update your firmware, always use NEW batteries.) Low Battery Indication “Low Battery” will be indicated either in the startup screen or protocol running screen.

  • Page 22: Sanitizing

    Stop using the IS02 device if the leadwires or unit failed the above inspection and contact MEND Technology for recommendations. Sanitizing To sanitize the IS02 main device, wipe the device with non-dripping cotton balls or sanitizing wipes with germicide or alcohol.

  • Page 23: Troubleshooting

    Turn the unit off and try again. If the problem persists, contact support@mendtechnology.com for servicing. If a problem is not resolved, please check MEND Technology website FAQ page for additional troubleshooting and service information. Technical Manual Technical Specifications Carrier Frequency Frequency Range: 0.1 Hz to 999.9 Hz programmable...
  • Page 24 Modulation Waveform Programmable ramp up/down slopes Programmable duty cycles μA programmable, 20 μA to 400 Current Intensity: in 10μA increment Current Accuracy: 20 μA ~ 200 μA : +/- 5 μA 200 μA ~ 400 μA : +/- 10 μA Outputs Programmable alternating, always +, or always –...

  • Page 25: Waveform Description

    * Wait for at least 10 minutes before use from the extreme non-operating temperature. Protocols and Frequency pairs MEND Wellness (IS02LCDs) can store up to 99 customized protocols. Each protocol can be programmed to have one or multiple frequency pairs. Each frequency pair includes output parameters of frequencies for two channels, current intensity, time, and all other parameters for one therapy sub-session.
  • Page 26 Figure 3 Waveform and Parameters Duty cycle of the waveform. The pulse is composed of four segments for their nature in the waveform. Each segment is programmable from 0% to 100% of the period of the envelope. When a period has 0% duty, the period will be eliminated. off period, there is no output current at this period, or i=0.
  • Page 28 MEND Technology 10117 SE Sunnyside Rd, Suite F40 Clackamas, OR 97015 (Toll-free) 855.445.3971 (Direct) 503.594.4045 (Fax) 503.594.4046 www.mendtechnology.com support@mendtechnology.com © Copyright 2021 MEND Tech, LLC. All rights reserved...
