USB-4301 User's Guide Functional Details

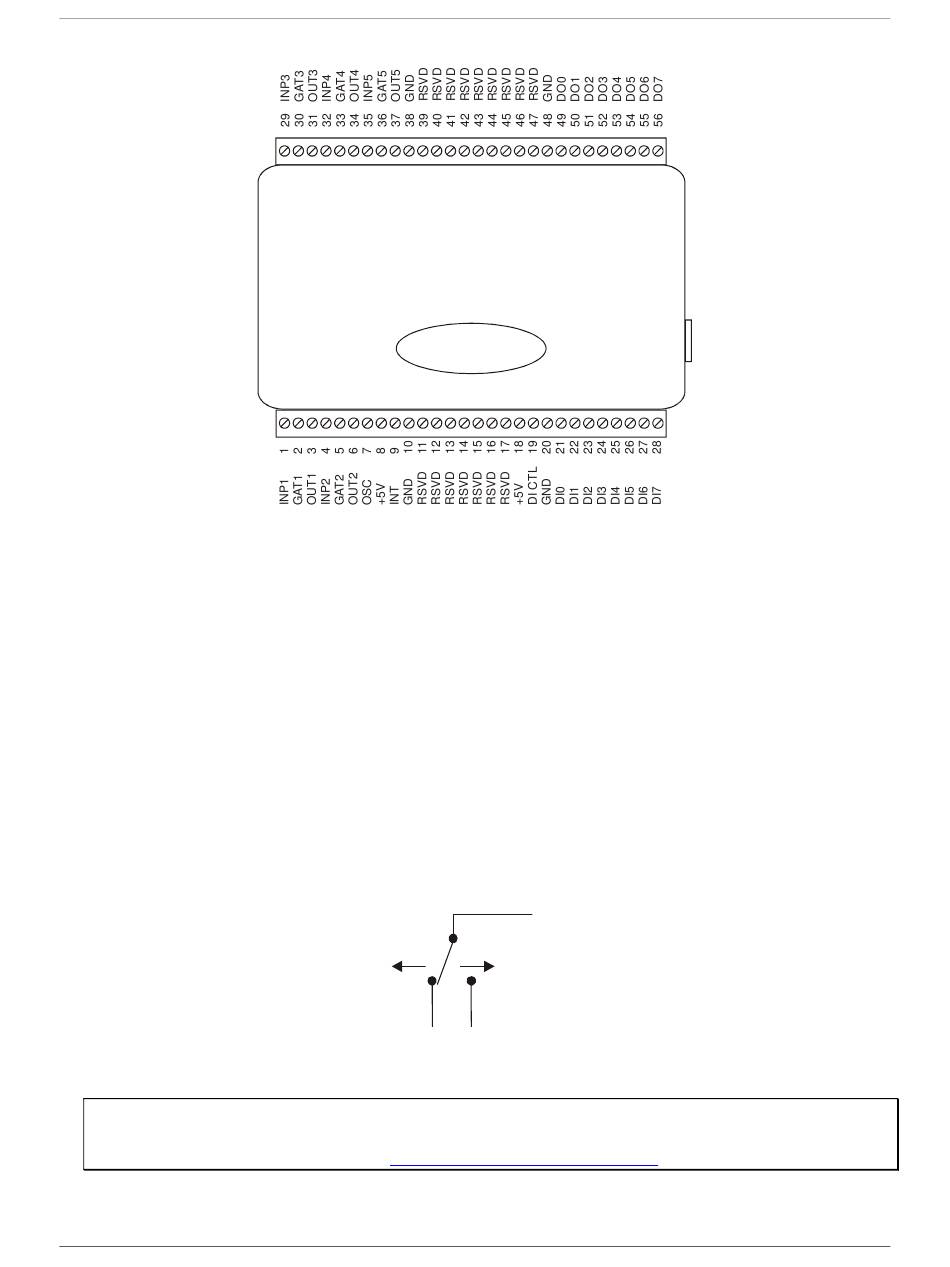

Figure 4. USB-4301 signal pin out

Counter terminals (INP1 to INP5, GAT1 to GAT5, and OUT1 to OUT5)

The counter terminals provide the connections for the clock input signal and gate signal to each counter, and the
output signal from each counter. The clock, gate, and output sources are software-selectable. You can configure
each counter to count up or down.

Digital input (DI0 to DI7) and output (DO0 to DO7) terminals

You can connect up to eight digital input lines to the screw terminals labeled to (pins 21 through 28),
DI0 DI7
and up to eight digital output lines to the screw terminals labeled to (pins 49 through 56).
DO0 DO7
You can use the digital input terminals to detect the state of any TTL level input. Refer to the schematic shown
in Figure 5. When the switch is set to the +5V input, DI7 reads TRUE (1). If you move the switch to GND, DI7
reads FALSE (0).
DI 7
GND +5V
Figure 5. Schematic showing switch detection by digital channel DI7
For more information on digital signal connections
For more information on digital signal connections and digital I/O techniques, refer to the Guide to Signal
Connections (available on our web site at www.mccdaq.com/signals/signals.pdf).
