Soyal AR-716-E16 Manual

ACCESS & INDUSTRIAL CONTROL
Contents
1
Product
Specification
32bit / ARM32 72MHz / Flash 512KB
CPU
2048KB (2MB)
Memory
9 ~ 24VDC
Power Supply
< 3W
Power Consumption
RS-485 : 9600 bps (N, 8, 1)
Interface /
Baud Rate Ethernet : 10/100M Base T
External Readers 2 RS-485 + 2 WG

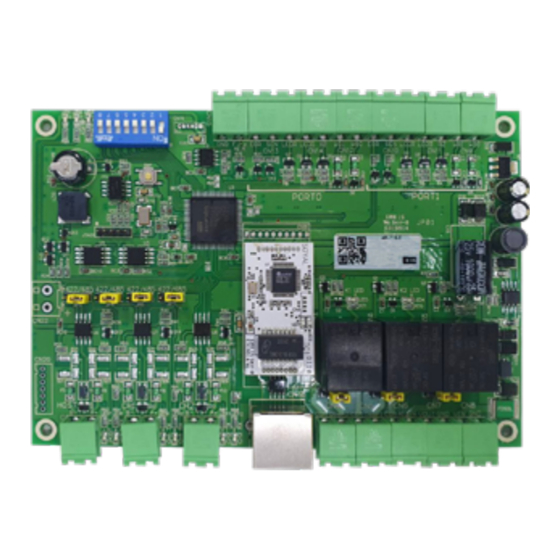

Connector Table
LED
Dip-switch
Reset
(Hold till BUSY LED is blinking)
LED
Host CH1
2 1
CN1 CN2
Connector CN1 Host RS-485
Code Pin Description
LA+ 1 Host RS-485(A+)
LB- 2 Host RS-485(B-)
Connector: CH1 Slave RS-485
CN2
Code Pin Description
LA+ 1 RS-485(A+)
LB- 2 RS-485(B-)
Connector CN3 CH2 Slave RS-485
Code Pin Description
LA+ 1 RS-485(A+)
LB- 2 RS-485(B-)
Installation
2
Panel Mounting Base (AR-716-E16-X)
Fit 35mm DIN Rail or Mount directly
Temperature
Digital Input
Relpy Output
Door Relay Time
Alarm Relay Time
User Capacity
Event log
CN15 CN13/CN14/CN12
2 1 7 6 5 4 3 2 1
WG PORT0
GND Fire
ALM
TCP/IP
Module
Door
LED LED
CH2
Door/Alarm Relay Ouput
2 1 2 1 6 5
CN3
CN18 CN4/CN5/CN6
Connector CN4/CN5/CN6
WG Door / Alarm Relay
Code
Alarm Relay
Output
Door 1 Relay
Output
(WG1)
Door 0 Relay
Output
(WG0)
Connector CN15
Code
Fire-ALM
GND
231 mm
117 mm
AR-716-E16
Option
AR-701B-X
－20℃ ～ ＋70℃
2 Door Open Button/ 2 Door Sensor/ 1 Fire-alarm
2 Door Relay / 1 Alarm Relay
Toggle, 0.1~600 Sec.
Toggle, 0.1~600 Sec.
16,000 (Default value) / 32,000 / 65,000
32,000
CN10/CN11/CN9
7 6 5 4 3 2 1
WG PORT1
Relay LED
K1 K2 K3
Door ALM
N.O. N.O. N.O.
Power
4 3 2 1 4 3 2 1
CN7/CN8
Pin Description
1 K3-N.O./N.C.
2 COM
3 K2-N.O./N.C.
4 COM
5 K1-N.O./N.C.
6 COM
Fire-alarm Input
Pin Description
1 Fire-alarm Input
2
DC Power 0V Output
Metal Box
- 1 -
3
Metal Box
(AR-716-E16-M)
Aux. WG Port
Anti-pass-back
Lift Control
Door Group
Time Zone
Real-time Clock
DIP_SW
Connector Power Supply
CN7/CN8
Code Pin Description
GND 1 0V Input
VIN (716-E16) 2 12VDC Input
GND 3 0V Output
VOUT 4 12VDC Output
(Slave units)
Connector CN9/CN10/CN11
Code Pin Description
WG0 1 Wiegand DAT: 0 Input
WG1 2 Wiegand DAT: 1 Input
BZ 3 Beeper Output
LEDG 4 LED Green Output
LEDR 5 LED Red Output
SEN (N.C.) 6 Door Status Input
EGR: PB (N.O.) 7 Exit Button Input
Connector CN12/CN13/CN14
Code Pin Description
WG0 1 Wiegand DAT:0 Input
WG1 2 Wiegand DAT:1 Input
3
BZ Beeper Output
LEDG 4 LED Green Output
LEDR 5 LED Red Output
SEN (N.C.) 6 Door Status Input
EGR: PB (N.O.) 7 Exit Button Input
Connector Host TCP/IP
CN18
Code Pin Description
TCP/IP Socket 1 CAT5
110 mm
80 mm
Plastic
Mounting Base
V220613
Option
WG 26 / WG 34
16 Doors
Yes
255
63
(stand-alone /networking)
YES
8
(Node ID: 1~254)
WG Port 1
WG Port 0
