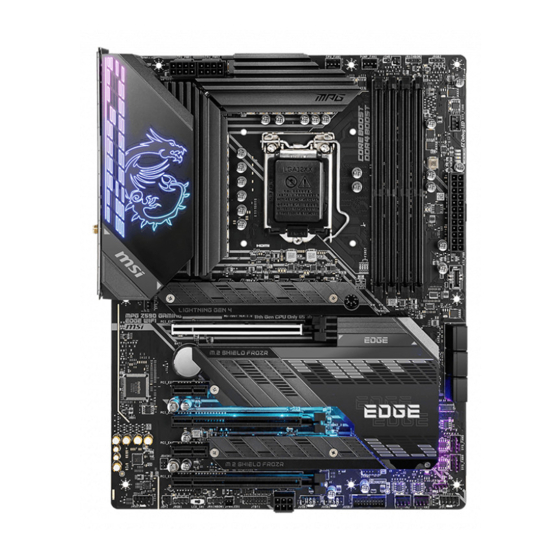

  • Page 1 How to create RAID volume on MSI Z590 motherboard...
  • Page 2 Modify RAID configuration in BIOS setup .
  • Page 3 Step 1: Into BIOS Setup.
  • Page 4 Step 2: Modify 3 * Items in BIOS Setup. • BIOS / Settings / Advanced / Integrated Peripheries • Modify “SATA mode” to “RAID/Optane Mode”. • Modify “M2_2-RST PCIE Storage Remapping” to “Enabled”. • Modify “M2_3-RST PCIE Storage Remapping” to “Enabled”.
  • Page 5 Step 2: Modify 3 * Items in BIOS Setup.
  • Page 6 Step 3: Press F10 Button for Saving Changes and Reboot. • BIOS / Settings / Save & Exit • Or please press “Save Changes and Reboot”.
  • Page 7 Step 4: Save Configuration and Exit. • Please press “YES” button.
  • Page 8 Step 5: Into BIOS setup again.
  • Page 9 Step 6: Press Intel(R) Rapid Storage Technology Item. • BIOS / Settings / Advanced /...
  • Page 10 Step 7: Press Create RAID Volume item. • It is showed storages. • Then please press “Create RAID Volume” item.
  • Page 11 Step 8: Modify Name and RAID Level. • Please modify “Name” and “RAID Level” you wanted.
  • Page 12 Step 9: Select Disk. • Please select disk you want to create RAID.
  • Page 13 Step 10: Press Create Volume Item. • Please press “Create Volume” item.
  • Page 14 Step 11: Showed RAID Volumes. • It will be showed RAID volume.
  • Page 15 Step 12: Press F10 button for Saving Changes and Reboot. • BIOS / Settings / Save & Exit • Or please press “Save Changes and Reboot” and then press “OK button”.
  • Page 16 Load RST driver during installing Windows 10 process.
  • Page 17 Step 13: Download RST Driver on MSI Website. • Please download “Intel Rapid Storage Technology Driver” on MSI website. Example:...
  • Page 18 Step 14: Copy RST Driver to USB Storage. • Please copy this RST driver to USB storage and then plug this USB storage on this system.
  • Page 19 Step 15: Press Load Driver During Installation. • It will be not showed any storage during installation and then press “Load driver” item.
  • Page 20 Step 16: Press Browse Button. • Please press “Browse” button and then choose folder of RST driver on USB storage.
  • Page 21 Step 17: Choose Folder of RST Driver. • Choose folder of RST driver on USB storage as below.
  • Page 22 Step 18: Press Next Button for Loading Driver. • It will be showed location of driver and then please press “Next” button for loading driver.
  • Page 23 Step 19: Showed RAID Volume. • It will be showed RAID volume and then press “Next” button for installing Windows OS on this RAID storage .
  • Page 24 Step 20: Check RAID Volume in Device Manager. • It has been installed Windows 10 OS on this RAID volume.
  • Page 25 • M2_1 slot is from CPU and it is available on 11 Gen Intel CPU. • M2_2 slot and M2_2 slot are from Z590 chipset. • For RAID, M2_1 slots is just detected Intel SSD. • So we are suggest installing M.2 SSD on M2_2 slot and M2_3 slot .
