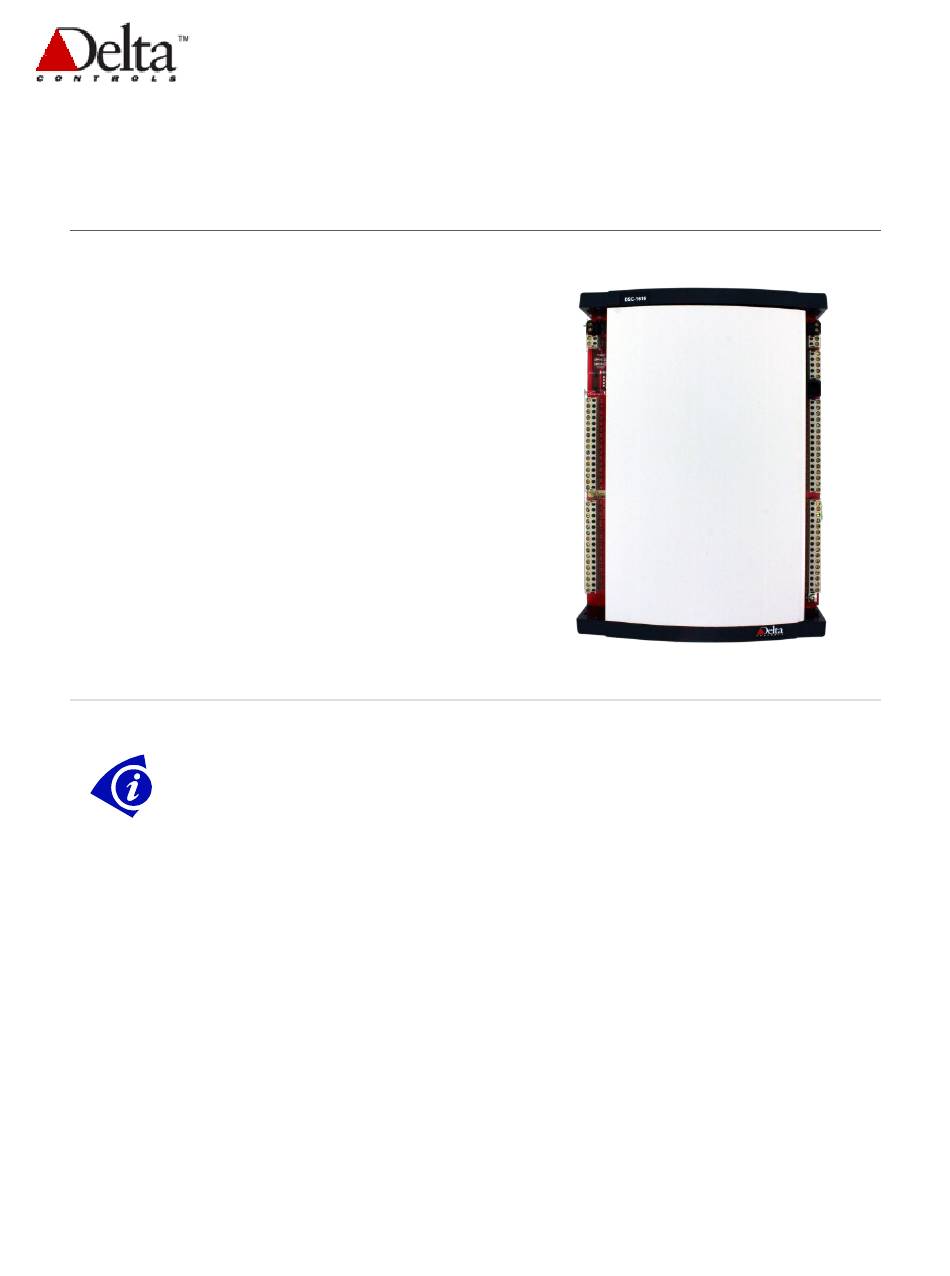

Product Description

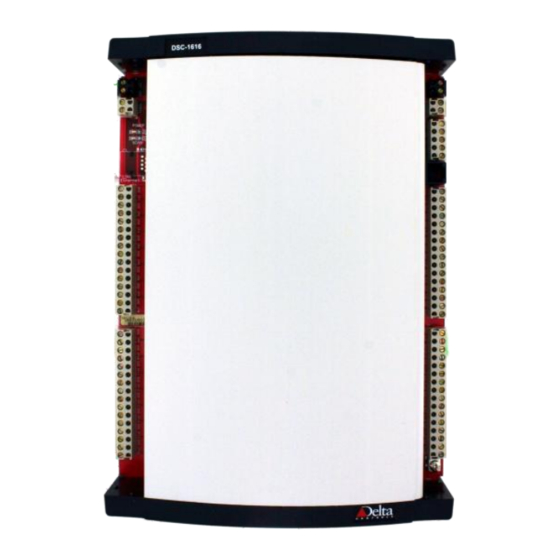

The DSC-1616 is a fully programmable, Native BACnet
Building Controller that communicates on Twisted Pair
Ethernet 10-BaseT using BACnet IP and BACnet over
Ethernet, or on an RS-485 LAN using the BACnet MS/TP
protocol.
The controller includes an easy to mount enclosure and is
designed for a wide range of applications requiring no more
than 16 inputs and 16 outputs, including but not limited to Roof
Top Units, Air Handlers, Boilers or Chillers, etc. A second RS-
485 port may be configured as an MS/TP SubLAN or a
LINKnet network that supports up to 12 Delta BACstats or
other Delta LINKnet controllers.
The 16 universal inputs are jumper configurable and the 16
analog outputs have an option of coming with monitored Hand-
Off-Auto switches.
Important Information
ORCAview OWS and controller firmware must all be of the same version number to
be compatible. When upgrading any of these products from older versions (i.e. 3.22 or 3.30),
you must upgrade all the remaining products. Exception: UL 864 model, DSC-1616E-UL864
can be used with V3.33
Package Contents
Product: DSC-1616
DSC-1616 Installation Guide
Related Documents
Delta Controls Wiring Guidelines
ORCAview Operator Guide
ORCAview Technical Reference Manual
Release Notes for related Firmware
and V3.40 firmware.
I
NSTALLATION
DSC-1616 Installation Guide
G
UIDE
Document Edition 3.
Document Edition 3.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSC-1616 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Delta Controls DSC-1616

Summary of Contents for Delta Controls DSC-1616

  • Page 1 DSC-1616 Installation Guide Document Edition 3. Product Description The DSC-1616 is a fully programmable, Native BACnet Building Controller that communicates on Twisted Pair Ethernet 10-BaseT using BACnet IP and BACnet over Ethernet, or on an RS-485 LAN using the BACnet MS/TP protocol.
  • Page 2 Delta Controls UL864 Specific Considerations Wiring to and from the device shall be through power-limited circuits. Use only Core Components transformer, Model No. 120-024-100-2TF-CB, by Lectro Components Inc. to power the device. (Delta Part # 440008) Use only UL Listed Class 2 Power Supplies for auxiliary field devices.
  • Page 3 Document Edition 3.4 Mounting The DSC-1616 includes a plastic enclosure that can be quickly mounted with two screws (not provided). This controller should be mounted in an appropriate location within packaged equipment or another enclosure that meets code requirements. Page 3 of 12...

  • Page 4: Board Layout

    Delta Controls Board Layout Page 4 of 12...

  • Page 5: Controller Configuration

    Document Edition 3.4 Controller Configuration Controller Type Various products have the capability of being configured as one of several possible controller types, which represents the network level that it will reside on in the network architecture (Area, System, Subnet). Other than the one AREA controller acting as a router, all other controllers on the same network segment must be configured the same.

  • Page 6: Wiring General

    Delta Controls Wiring General All wiring must conform to NEC and local codes and regulations. Use earth ground isolating step-down Class 2 transformers. Do not use autotransformers. Determine supply transformer rating by summing total VA of product and output loads.

  • Page 7: Network Communication

    Document Edition 3.4 Network Communication The controller communicates on Twisted Pair Ethernet 10-BaseT using BACnet IP and BACnet over Ethernet, or on an RS-485 LAN using the BACnet MS/TP protocol. Refer to Delta Controls Wiring Guidelines for further details. MS/TP (RS-485) Wiring For detailed information on MS/TP and LINKnet wiring refer to Delta Controls Wiring Guidelines.

  • Page 8: Input And Output Wiring

    Delta Controls Input and Output Wiring Inputs and outputs on the DSC-1616 controller follow the same general wiring requirements as other Delta Controls products. Recommended cable types should be used as listed below. Refer to the Delta Controls Wiring Guidelines for more details.
  • Page 9 Document Edition 3.4 Indicators Function Description Power Controller Power This yellow LED turns on to indicate that the controller has power Indicator applied. Scan CPU Scan Indicator This red LED flashes at a rate relative to the CPU scan rate. Network Ethernet The green LNK LED is turned on when a link is established...

  • Page 10: Product Specifications

    Communication: 9600, 19200, 38400 (default)  Service RJ-11 Jack Port  Used with Delta Controls service tool devices (for example, CON-768) Inputs 16 Universal Inputs (10 bit), jumper configurable for the following input types:  0-5 VDC  0-10 VDC ...

  • Page 11: Ce Declaration Of Conformity

    Canada V3S 1C7 declares that the product (s): Product Name: 16 x 16 Controllers Model Numbers: DSC-1616, DFM-1616 Product Options: conforms to the following Product Specifications: EN 50081-1:1992 Generic Emission Standard Part 1: Residential EN 55022:1998 Radiated and Conducted Emissions...
  • Page 12 Delta Controls FCC Compliance Information This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
