Delta Controls ADM-2W704 Installation And Application Manual

Access door module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Delta Controls
INSTALLATION & APPLICATION GUIDE
Access Door Module
ADM-2W704 (Rev 1.3)
Document Edition 1.2
P
D
RODUCT
ESCRIPTION

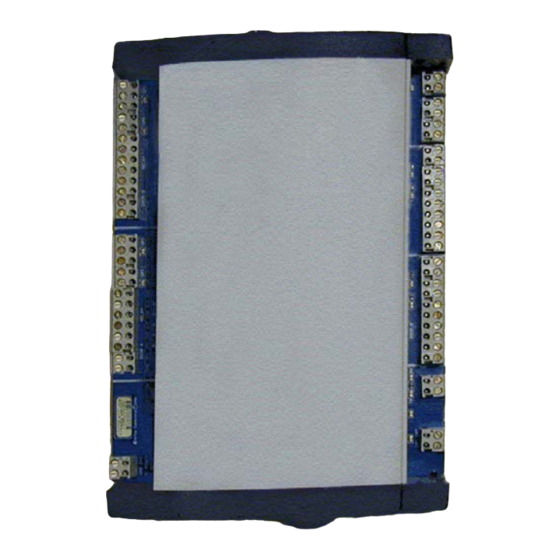

The Access Door Module is an intelligent device used
for access control of two single direction doors, or one
bi-directional door. It is used in conjunction with
Delta's new generation of BACnet Controllers.
When connected to an Access System Manager on the
Delta LINKnet network, it provides programmable
remote door access control and expanded I/O
capabilities.
Access Door Modules can be networked together, to a
maximum of 12 Access Door Modules to provide
access control of up to 24 doors.
T
C
PRODUCT DESCRIPTION ................................................................................................................................................... 1
TABLE OF CONTENTS ........................................................................................................................................................ 1
MODEL NUMBERS .............................................................................................................................................................. 2
UL AUTHORIZED ACCESSORIES ..................................................................................................................................... 2
OTHER ACCESSORIES FOR USE IN NON-UL APPLICATIONS ..................................................................................... 2
PACKAGE CONTENTS ........................................................................................................................................................ 2
REQUIRED TOOLS ............................................................................................................................................................... 2
OTHER RELEVANT DOCUMENTS .................................................................................................................................... 3
PRODUCT SPECIFICATIONS .............................................................................................................................................. 3
UL STANDARDS COMPLIANCE ........................................................................................................................................ 5
BOARD LAYOUT (ACCESS DOOR MODULE) ................................................................................................................. 6
INDICATORS ......................................................................................................................................................................... 7
CONTROLLER ADDRESS DIP SWITCHES ....................................................................................................................... 7
MOUNTING ........................................................................................................................................................................... 7
POWER WIRING ................................................................................................................................................................... 8
BATTERY BACKUP WIRING (NOT TO BE CONNECTED IN UL APPLICATIONS) .................................................... 8
INPUT WIRING ................................................................................................................................................................... 11
OUTPUT WIRING ............................................................................................................................................................... 20
LINKNET NETWORK & CABLING REQUIREMENTS ................................................................................................... 22
NETWORK TOPOLOGY (CONFIGURATION NOT EVALUATED BY UL) .................................................................. 23
COMMUNICATIONS SETUP ............................................................................................................................................. 24
CAUTIONS AND WARNINGS ........................................................................................................................................... 24
COMPLIANCE DECLARATIONS ...................................................................................................................................... 25
Access Door Module
Page 1 of 26

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADM-2W704 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Delta Controls ADM-2W704

Summary of Contents for Delta Controls ADM-2W704

  • Page 1: Table Of Contents

    Delta Controls INSTALLATION & APPLICATION GUIDE Access Door Module ADM-2W704 (Rev 1.3) Document Edition 1.2 RODUCT ESCRIPTION The Access Door Module is an intelligent device used for access control of two single direction doors, or one bi-directional door. It is used in conjunction with Delta’s new generation of BACnet Controllers.

  • Page 2: Model Numbers

    Access Door Module ADM-2W704 (Rev 1.3) Installation & Application Guide ODEL UMBERS Features ADM-2W704  Controller & Enclosure UL A UTHORIZED CCESSORIES • AWID, Sentinel-Prox SR-2400 4 to 5.5 inch Read Range, Metal Compensated, Indoor THER CCESSORIES FOR USE IN NON APPLICATIONS •...

  • Page 3: Other Relevant Documents

    • ORCAview Operator Guide • V3.30 ORCAview Technical Reference Manual • V3.30 Release Notes • Delta Controls System Description RODUCT PECIFICATIONS Power Requirements • 24 VAC, 50/60Hz, 75 VA (dedicated transformer) Class 2 Device • 4A Slow Blow Fuse for controller and device power •...
  • Page 4 Access Door Module ADM-2W704 (Rev 1.3) Installation & Application Guide Inputs • 2 Wiegand Devices • 5 Type 1,2,3,4 EOL Supervised Inputs 2 Door Contacts 2 Auxiliary Inputs (i.e. tamper from card reader, motion detector, etc) 1 Tamper Input for cabinet •...

  • Page 5: Ul Standards Compliance

    UL has not evaluated the following features of the ADM-2W704 and therefore should not to be connected in UL applications: Battery Backup, Auxiliary Power, Request to Exit, or Auxiliary Relay Outputs. Any items not evaluated by UL shall not be connected to the system in UL applications or installations.

  • Page 6: Board Layout (Access Door Module)

    Access Door Module ADM-2W704 (Rev 1.3) Installation & Application Guide OARD AYOUT CCESS ODULE All Terminal Class 2 Access Door Module Page 6 of 26...

  • Page 7: Indicators

    Delta Controls NDICATORS Function Description AC PWR OK AC Power Indicator This green LED is on when the 24 VAC Power is present on the device. If no 24 VAC Power transformer is connected or the fuse (F1) is blown, the LED will be off.

  • Page 8: Power Wiring

    Access Door Module ADM-2W704 (Rev 1.3) Installation & Application Guide OWER IRING All power wiring must be completed by a licensed electrician and conform to the National Electrical Code, ANSI/NFPA 70, and local codes and regulations. The Access Door Module must be powered by the UL listed, 24VAC, 50/60 Hz Basic Electric transformer, Model 7511CBDH, or equivalent.
  • Page 9 Delta Controls 24 VAC Access Door Module Power Connection Wiring Detail Battery Connection Wiring Detail (Not evaluated by UL) Access Door Module Page 9 of 26...
  • Page 10 Access Door Module ADM-2W704 (Rev 1.3) Installation & Application Guide DC Power Out Used Power and Battery Backup Access System Manager Auxiliary Power Wiring (Not Evaluated by UL) Access Door Module Page 10 of 26...

  • Page 11: Input Wiring

    Delta Controls NPUT IRING There are 2 input types on the Access Door Module: • Wiegand Inputs • Regular Contact/Resistive Inputs (supplied with 10 – 10K ¼ Watt resistors for EOL circuits) Wiegand Inputs are for card readers, keypads, biometric devices, etc, using the standard Wiegand Input signals on WD0 and WD1.
  • Page 12 Below is the typical wire type and distance specified by most card reader manufacturers; these are the specifications for the card readers supplied by Delta Controls Inc. Card readers should always be grounded properly to ensure proper operation (refer to the manufacturers installation data).
  • Page 13 Delta Controls AWID/HID Prox Card Reader Wiring Access Door Module Page 13 of 26...
  • Page 14 Access Door Module ADM-2W704 (Rev 1.3) Installation & Application Guide Request to Exit Input (Not Evaluated by UL) The Request to Exit input has 2 components; the first is the Request to Exit Status that is monitored by software, to give the operator the status of the button. The second component is the contact on the Request to Exit button that interrupts the Door Lock signal to allow egress.
  • Page 15 Delta Controls If no RTE is being used, you must configure the circuit. If the Door Lock is configured as fail-safe, a jumper needs to be put in place of the RTE Contact. The diagram below shows how the RTE circuit is configured when not using an RTE device.
  • Page 16 (controller). Placing an EOL at the Access Door Module renders the circuit unmonitored, as it will only monitor to the point of the controller connection. Delta Controls recommends using EOL Types 3 & 4 if input wiring is to be monitored as they provided the most information regarding the condition of the input circuit (wiring).
  • Page 17 Delta Controls Type 1 EOL Circuit (Normally Closed Contact) Used to monitor a Normally Closed contact, this EOL supervised circuit will give you a Trouble signal, in addition to the Normal and Alarm signals, to let you know if the circuit has been shorted (contact bypassed). It does not give Trouble indication of an Open circuit (wires cut), but it will cause an alarm condition.
  • Page 18 Access Door Module ADM-2W704 (Rev 1.3) Installation & Application Guide Type 3 EOL Circuit (Normally Closed Contact) This EOL Circuit is used to monitor/supervise a Normally Closed contact, to indicate Trouble when there is either a Short Circuit (contact bypassed) or Open Circuit (wires cut). This supervised circuit gives the most feedback on the input’s condition, along with Type 4 for Normally Open contacts.
  • Page 19 Delta Controls Type 4 EOL Circuit (Normally Open Contact) This EOL Circuit is used to monitor/supervise a Normally Open contact, to indicate Trouble when there is either a Short Circuit (contact bypassed) or an Open Circuit (wires cut). This supervised circuit gives the most feedback on the input’s condition, along with Type 3 for Normally Closed contacts.

  • Page 20: Output Wiring

    Access Door Module ADM-2W704 (Rev 1.3) Installation & Application Guide UTPUT IRING The Outputs on the Access Door Module, like the inputs, are not general outputs. They typically have specific operations. There is an auxiliary output for each door on the board that gives you an SPDT relay output.
  • Page 21 Delta Controls The Request to Exit contact is hardwired on the controller board to interrupt the door lock signal; this does not go through any software and is effectively hardwired through traces on the board. This was done to make field wiring easier.

  • Page 22: Linknet Network & Cabling Requirements

    Access Door Module ADM-2W704 (Rev 1.3) Installation & Application Guide LINK & C ETWORK ABLING EQUIREMENTS To ensure network stability and reliable communications, particularly at high speeds on the LINKnet network for a number of devices, it is imperative that you adhere to the following network and cabling requirements:...

  • Page 23: Network Topology (Configuration Not Evaluated By Ul)

    Delta Controls ETWORK OPOLOGY CONFIGURATION NOT EVALUATED BY UL With V3.22 firmware the Access Door Module is a LINKnet device that acts as extended I/O to the master controller, the Access System Manager. Up to 12 - Access Door Modules can be connected to a single Access System Manager.

  • Page 24: Communications Setup

    Access Door Module ADM-2W704 (Rev 1.3) Installation & Application Guide OMMUNICATIONS ETUP The Access Door Modules communicate on a LINKnet network at a default speed of 76,800 BPS. Refer to the V3.30 Technical Reference Manual for further details on configuring the LINKnet network or changing baud rates, etc.

  • Page 25: Compliance Declarations

    Delta Controls OMPLIANCE DECLARATIONS CE – DECLARATION OF CONFORMITY According to ISO/IEC Guide 22 and EN 45014 Manufacturer’s Name: Delta Controls Inc. Manufacturer’s Address: 17850 56 Avenue Surrey, British Columbia, V3S 1C7 Canada Declares that the product (s): Product Name:...
  • Page 26 Access Door Module ADM-2W704 (Rev 1.3) Installation & Application Guide CE – DECLARATION OF CONFORMITY Table 1. European RoHS 2 Restricted Substances: Substance Max. Allowable Limit (2011/65/EU Exceeding (Yes/No) – RoHS) Lead (Pb) 0.1% (weight) / 1000 ppm Mercury (Hg) 0.1% (weight) / 1000 ppm...
