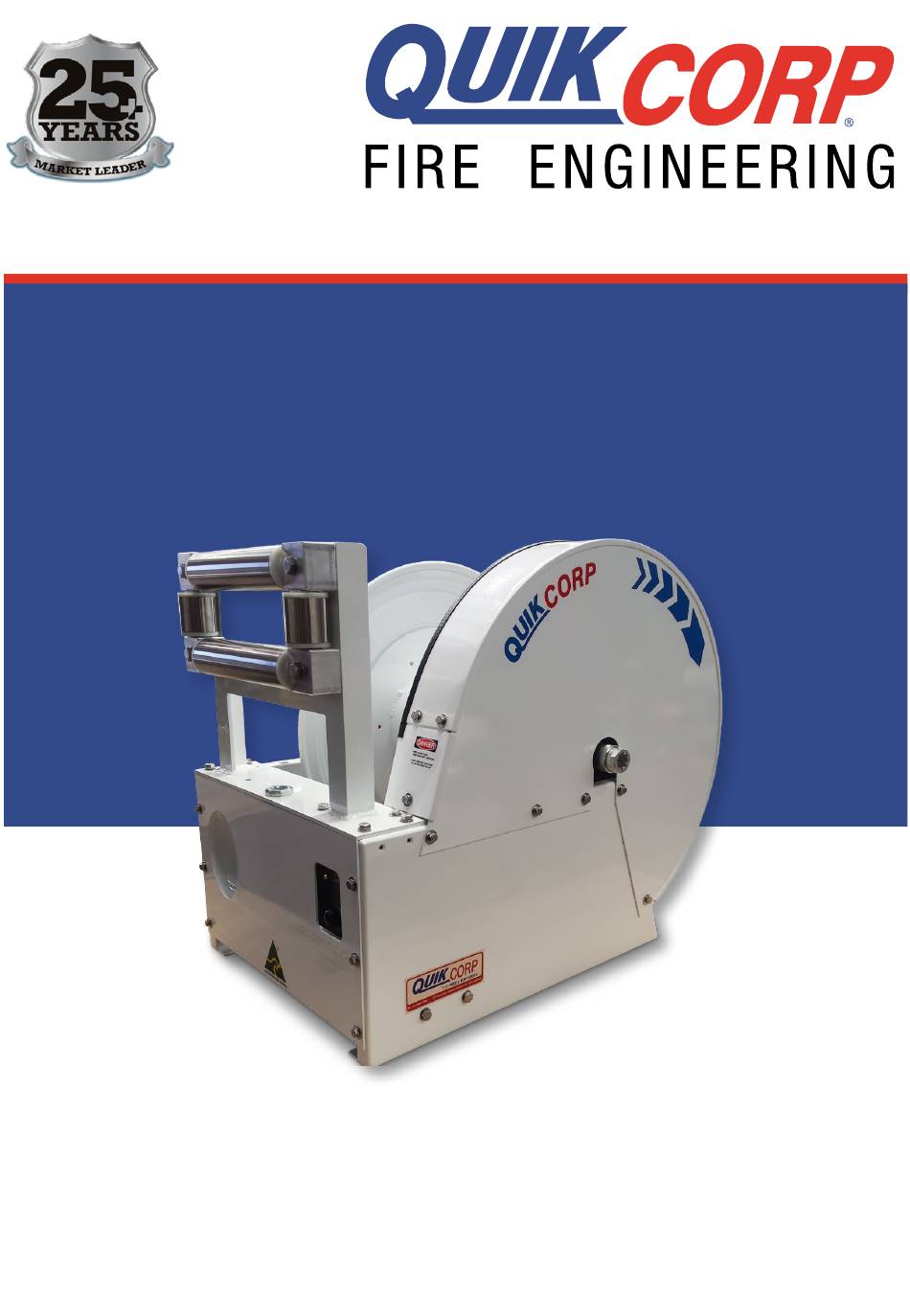

- Page 1 RFR Upgradeable Fire Hose Reels RFR, RFRA and RFRB Series INSTRUCTION MANUAL Model RFR 1 Manual Model RFR 2 Powered Model RFR 3 Self Guided Model RFR 4 Remote Control Self Guided Quik Corp® Pty Ltd 1800 645 688 www.qcfe.com.au...
- Page 2 Congratulations We would like to thank you for investing in this hose reel. These speciality hose reels are manufactured to the highest standard of quality to give our customer the best product and after sales service possible. This instruction manual should be considered a permanent part of your Hose Reel unit and should remain with it at all times .
-
Page 3: Table Of Contents
Contents BASIC OPERATION ..............4 MAINTENANCE ................6 HANDY HINTS ................7 RFRB ..................... 8 DRUM DRIVE BELT ..............8 UPGRADE ................... 11 TROUBLESHOOTING ..............13 TUNING TRANSMITTER ............14 WARRANTY POLICY ..............15 WARRANTY FORM ..............17 When you write or call us, about any problem, please provide the following information. -
Page 4: Basic Operation
Basic Operation Manual Reel (RFR-1) Disengage Reel lock before operation » Adjust Friction Brake tension to minimize hose “run on”. » The Reel will free-wheel out to desired distance » CAUTION: Do not pull hose out too fast, as reel may “run on”, causing hose to become tangled. - Page 5 Guided Reel (RFR-3) Adjust Friction Brake tension to minimize hose “run on”. » The Reel will free-wheel out to desired distance » CAUTION: Do not pull hose out too fast, as reel may “run on”, causing hose to become tangled. When ready to rewind hose, press and hold button to retract hose back to »...
-
Page 6: Maintenance
Maintenance Daily Check battery condition, water level and voltage (12 or 24v) All safety guards and decals are in place. Inspect all bolts, nuts and hose fittings for tightness. 20 Hrs Remove chain guard and check chain tensions. Check “freeness” of swivel and Lubricate if required. -
Page 7: Handy Hints
The RFR range of reels Self Guided Remote Control has been specifically designed with the ability to upgrade. Model RFR3 Self Guided Model RFR2 Powered Model RFR1 Manual Contact Quik Corp for further information and pricing on the upgrade options. www.qcfe.com.au... -
Page 8: Rfrb
RFRB Remote Control Self Guided (4) reel pictured (60 m 25mm ID hose, 24V, self guided, remote rewind) On/Off Switch Rewind Switch Nozzle Holder Radio Aerial Guiding Head Friction Brake www.qcfe.com.au... -
Page 9: Drum Drive Belt
Drum Drive Belt Adjustment Check belt drive every 6 months. If hose does not retract, belt may be ‘slipping’. Tension on belt is adjusted by moving motor forwards to tighten or backwards to loosen. Tools needed: G-Clamp, Screwdriver, 10mm Ratchet Disconnect Anderson Plug at rear of the hose reel. - Page 10 Drum Drive Belt Adjustment Continued from previous page Hose reel assembly can make accessing these bolts difficult Apply G-clamp as shown in picture below. Tighten G-clamp to put tension on motor and move motor towards you to tighten belt. With G-clamp still in place, tighten 4x bolts (C) Remove G-clamp.
-
Page 11: Upgrade
1. RFR-1 to RFR-2: Upgrade from a manual reel to a powered system Quik Corp Fire’s powered reels have been produced to take the hard work out of rewinding long and heavy lengths of hose by providing a powerful and consistent retraction that greatly assists in hose retrieval. - Page 12 2. RFR-2 to RFR-3: Upgrade your powered reel to a self-guided powered reel Quik Corp Fire’s self-guiding reels have been produced to take the hard work out of rewinding long lengths of hose by providing a powerful and consistent retraction that greatly as-sists in hose retrieval. In addition to this, the reel features our unique self-guiding “Archimedes”...
-
Page 13: Troubleshooting
Troubleshooting Problem Probable Cause Remedy Reel does not retract. Switch (1) not “on” or Switch on or replace and manual button does faulty not work Flat battery Charge or replace Break in vehicle battery Repair connection Blown fuse. Replace (10 amp) Broken reel drive Replace Reel does not retract and... -
Page 14: Tuning Transmitter
Tuning Transmitter to Receiver Your reel is delivered pre-tuned from the factory. If at some point you need a new radio transmitter or receiver board, you will need to re-tune your system. To tune your transmitter to the receiver, you will need to remove the covers off both the 915MHz transmitter and receiver to expose the dip-switch boards (Diagram 1). -
Page 15: Warranty Policy
Warranty Policy This document sets out the warranties that are given by Quik Corp Pty Quik Corp Product which fails because of defects in material or Ltd (ABN 18 081 235 556) in relation to the Product purchased from or workmanship unless the damage arises from: manufactured by Quik Corp. - Page 16 The warranty is only available to the first purchaser and is non-transferable The Warranty Registration Form (see over) must be returned to Quik Corp Pty Ltd 37 Production Ave Qld. 4575 Australia , with in 14 days of taking delivery of the unit. Only when the warranty registration form is completed and returned, can Quik Corp Pty Ltd fulfil all warranty obligations.
-
Page 17: Warranty Form
Warranty Registration Form This form must be completed and returned to Quik Corp (Aust) Pty Ltd, either by completing the form and clicking the submit button or posting a copy of the filled form to 37 Production Ave. Warana QLD 4575 within 14 days of taking delivery. - Page 18 AFFIX STAMP QUIK CORP P/L 37 Production Ave. WARANA QLD 4575...
- Page 19 Quik Corp Pty Ltd 37 Production Avenue WARANA QLD 4575 AUSTRALIA Australia Phone: ......(07) 5493 8944 Fax:......... (07) 5493 8957 International Phone: ......+61 7 5493 8944 Fax:......... +61 7 5493 8957 info@quikcorp.com.au www.qcfe.com.au Proudly Australian Made & Owned...
