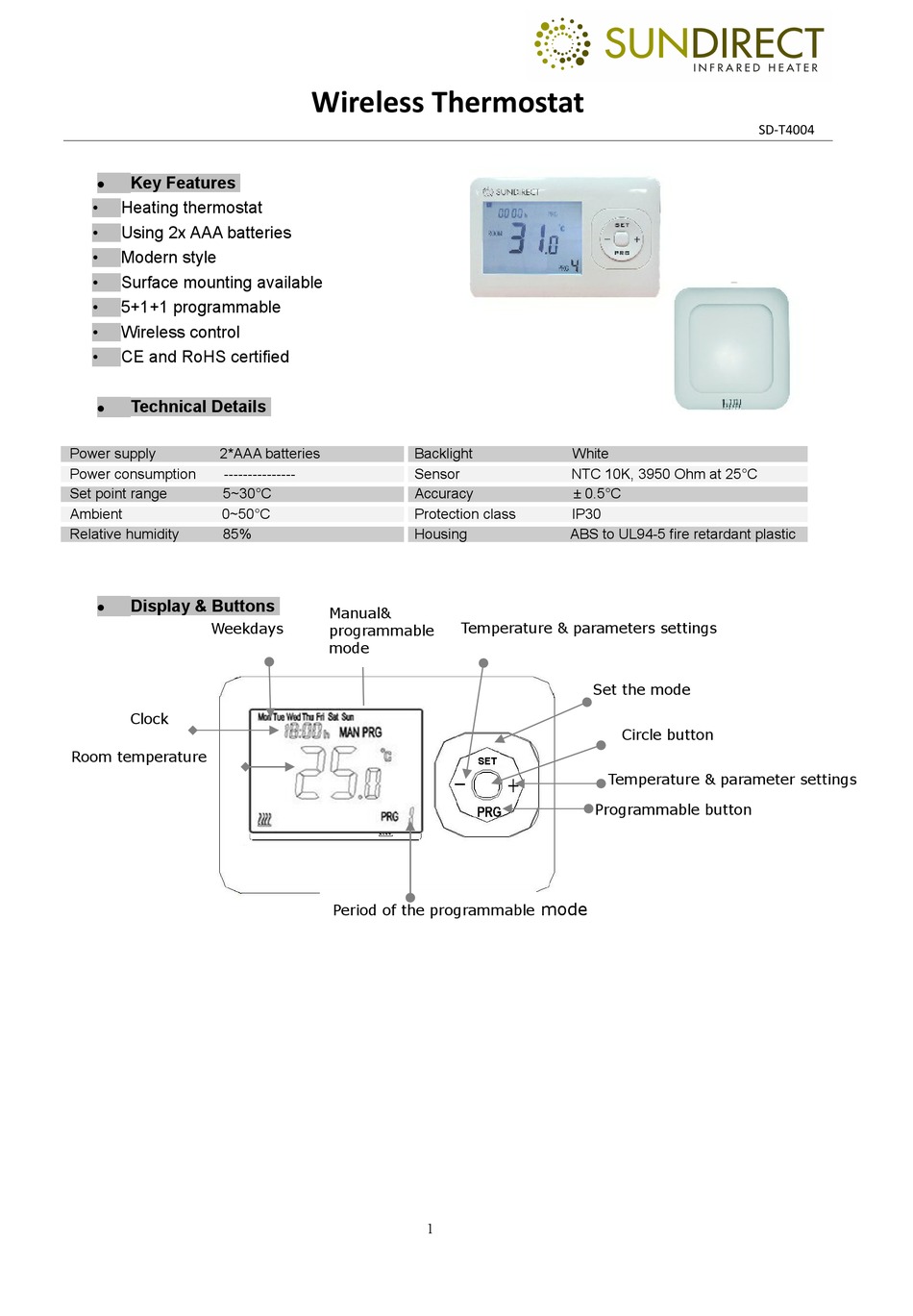

Key Features
•
Heating thermostat
•
Using 2x AAA batteries
•
Modern style
•
Surface mounting available
•
5+1+1 programmable
•
Wireless control
•
CE and RoHS certified
Technical Details
Power supply
2*AAA batteries
Power consumption
---------------
Set point range
5~30°C
Ambient
0~50°C
Relative humidity
85%
Display & Buttons
Weekdays
Clock
Room temperature
Wireless Thermostat
Backlight
Sensor
Accuracy
Protection class
Housing
Manual&
Temperature & parameters settings
programmable
mode
Period of the programmable
1
White
NTC 10K, 3950 Ohm at 25°C
± 0.5°C
IP30
ABS to UL94-5 fire retardant plastic
Set the mode
Circle button
Temperature & parameter settings
Programmable button
mode
SD-T4004
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sundirect SD-T4004
Summary of Contents for Sundirect SD-T4004
- Page 1 Wireless Thermostat SD-T4004 Key Features • Heating thermostat • Using 2x AAA batteries • Modern style • Surface mounting available • 5+1+1 programmable • Wireless control • CE and RoHS certified Technical Details Power supply 2*AAA batteries Backlight...
- Page 2 Wireless Thermostat SD-T4004 Clock & Temperature Settings Pressing the “SET” button for 3 seconds allows you to enter the clock and temperature settings, modify by pressing “+” or “-“ . Pressing “SET” again allows you to switch from one menu to the others.
- Page 3 Wireless Thermostat SD-T4004 Connectivity 1) Press the “SET IP” button on the receiver, now the green LED starts flashing. 2) Power off the remote control by pressing the circle button for a few seconds. After the switchoff hold “SET” for 3 seconds until the IP adress of the receiver appears on the LCD display, press “SET”...

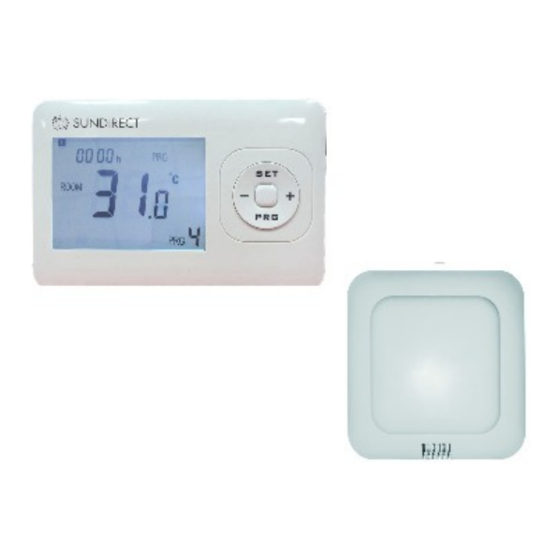

- Page 4 Wireless Thermostat SD-T4004 Receiver The thermostat can either be mounted or used as a portable remote control, Dimensions...
