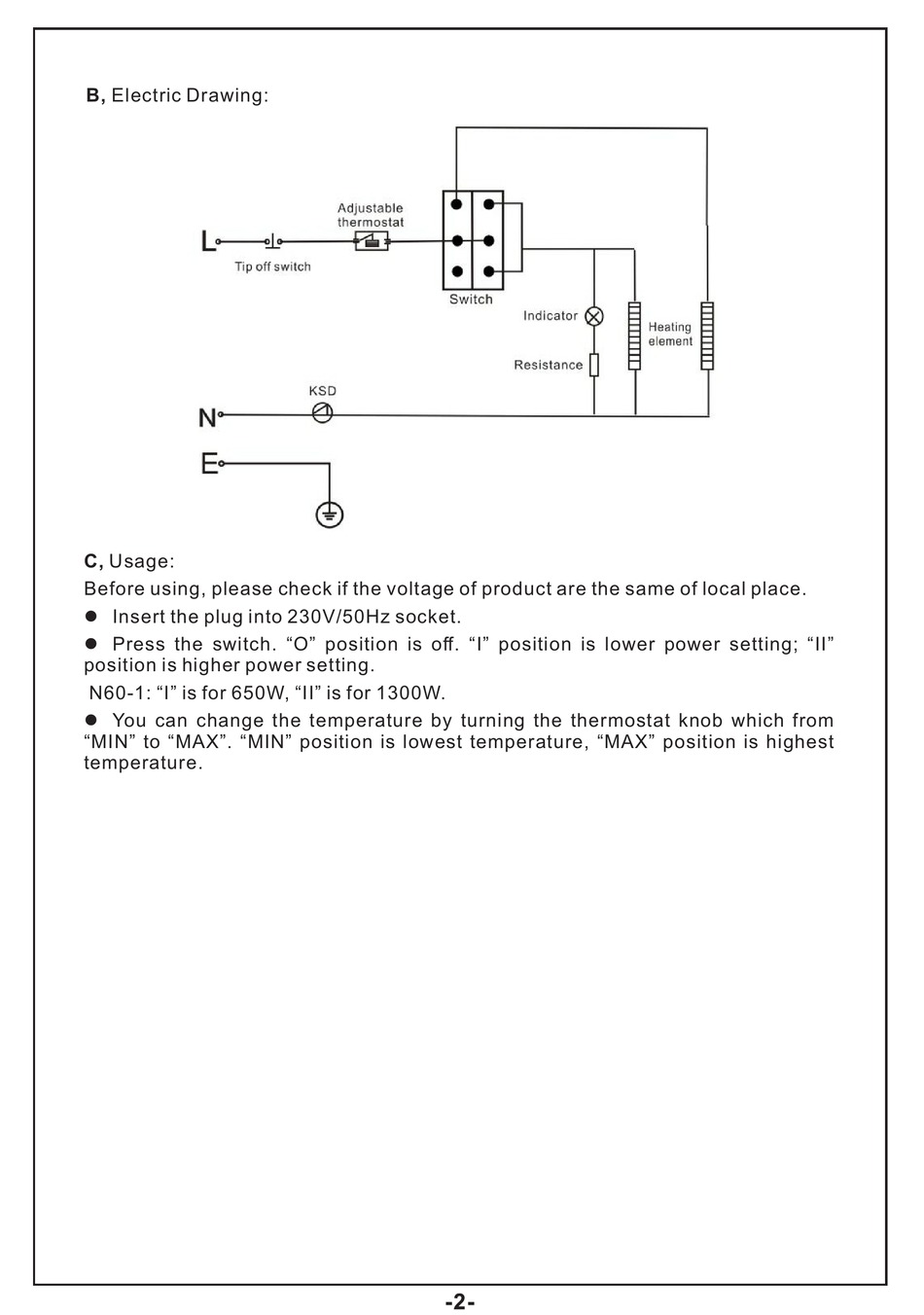

B, Electric Drawing:
C, Usage:
Before using, please check if the voltage of product are the same of local place.
l Insert the plug into 230V/50Hz socket.
l Press the switch. "O" position is off. "I" position is lower power setting; "II"
position is higher power setting.
N60-1: "I" is for 650W, "II" is for 1300W.
l You can change the temperature by turning the thermostat knob which from
"MIN" to "MAX". "MIN" position is lowest temperature, "MAX" position is highest
temperature.
