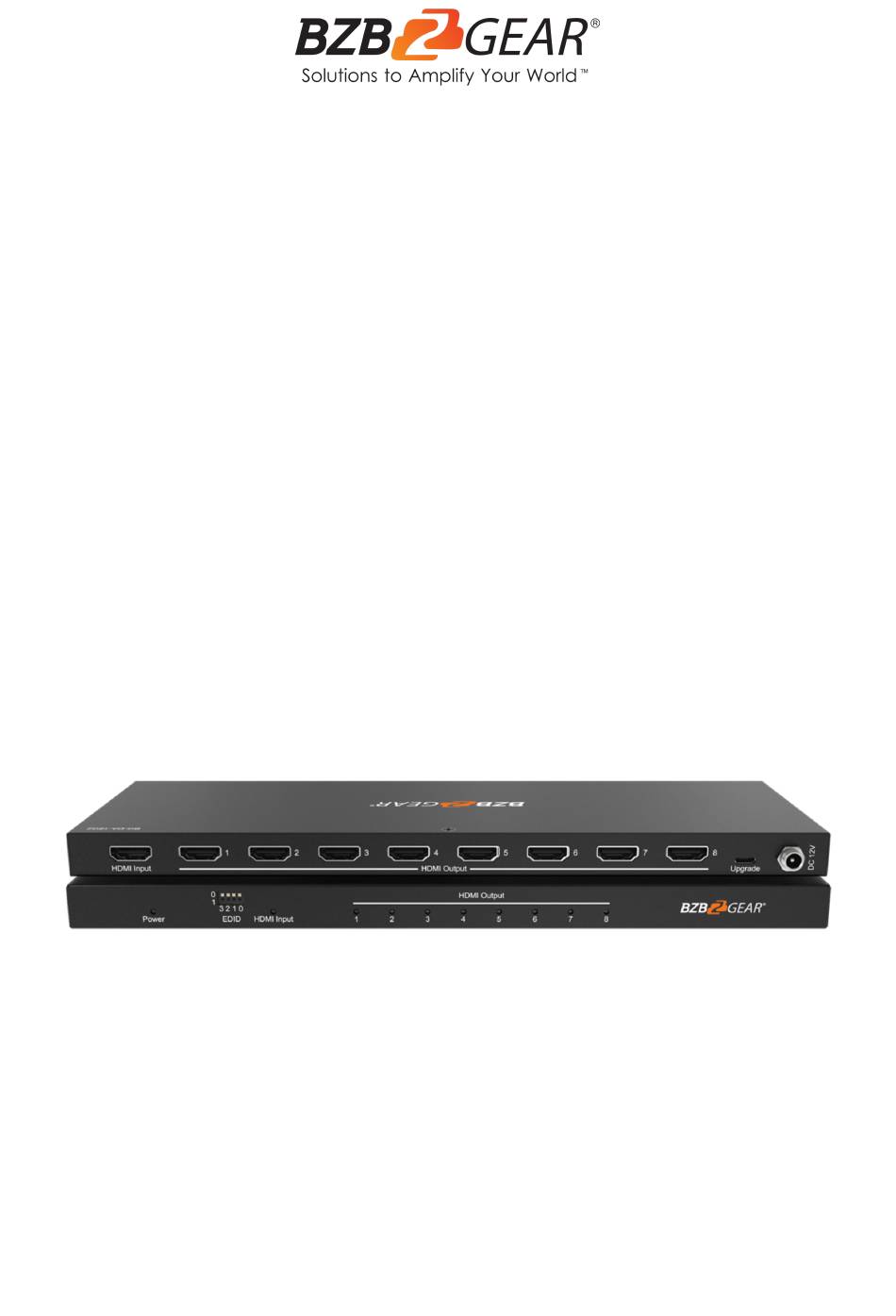

- Page 1 BG-DA-18G2 4K UHD 18Gbps 1x8 Ultra Slim HDMI Splitter User Manual...
- Page 2 BZBGEAR BG-DA-18G2 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-DA-18G2 PRODUCT MANUAL Table of Contents Statement Safety Precaution Introduction Features Package Contents Specifications Application Example Panel Descriptions EDID Dip Switch Settings Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-DA-18G2 is a compact HDMI splitter that allows you to distribute an HDMI signal to eight outputs. With support for the latest HDMI 2.0 specifications, including HDR, you can enjoy vivid visuals with 4K UHD resolution at 60Hz and 4:4:4 color depth. Additionally, the splitter supports all HDMI audio formats, such as Dolby TrueHD, Atmos, and DTS-HD Master Audio, for exceptional sound quality. -
Page 6: Specifications
BZBGEAR BG-DA-18G2 PRODUCT MANUAL Specifications Technical Specifications Bandwidth 300MHz/6Gbps per Color Video Input Connectors 1x HDMI Type A, 19-pin, female Video Output Connectors 8x HDMI Type A, 19-pin, female Supported Resolutions Up to 4K@50/60Hz 4:4:4, Full 3D Pass-through Suggested Cable Lengths 5m for 1080p@60Hz, 3m for 4K@60Hz 4:4:4 Mechanical Specifications... -
Page 7: Application Example
BZBGEAR BG-DA-18G2 PRODUCT MANUAL Application Example Panel Descriptions Front Panel Rear Panel Name Function Description Power LED Illuminates when the unit is powered on. Indicator Manage the EDID settings of the unit (see EDID Dip Switch Settings for more EDID Dip Switch information). -
Page 8: Edid Dip Switch Settings
BZBGEAR BG-DA-18G2 PRODUCT MANUAL EDID Dip Switch Settings EDID DIP Switch Setting Description 0000 HDMI 1080p@60, Audio 2CH PCM 0001 HDMI 1080p@60Hz, Audio 5.1CH PCM/DTS/DOLBY 0010 HDMI 1080p@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD 0011 HDMI 1080i@60Hz, Audio 2CH PCM 0100 HDMI 1080i@60Hz, Audio 5.1CH PCM/DTS/DOLBY 0101 HDMI 1080i@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD... -
Page 9: Tech Support
Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. Or explore our YouTube channel, BZB TV (youtube.com/c/BZBTVchannel), for help setting up,... -
Page 10: Warranty
BZBGEAR BG-DA-18G2 PRODUCT MANUAL Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. -
Page 11: Mission Statement
BZBGEAR BG-DA-18G2 PRODUCT MANUAL Mission Statement BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. -
Page 12: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change without notice.
