Summary of Contents for ITC Power SL-S400

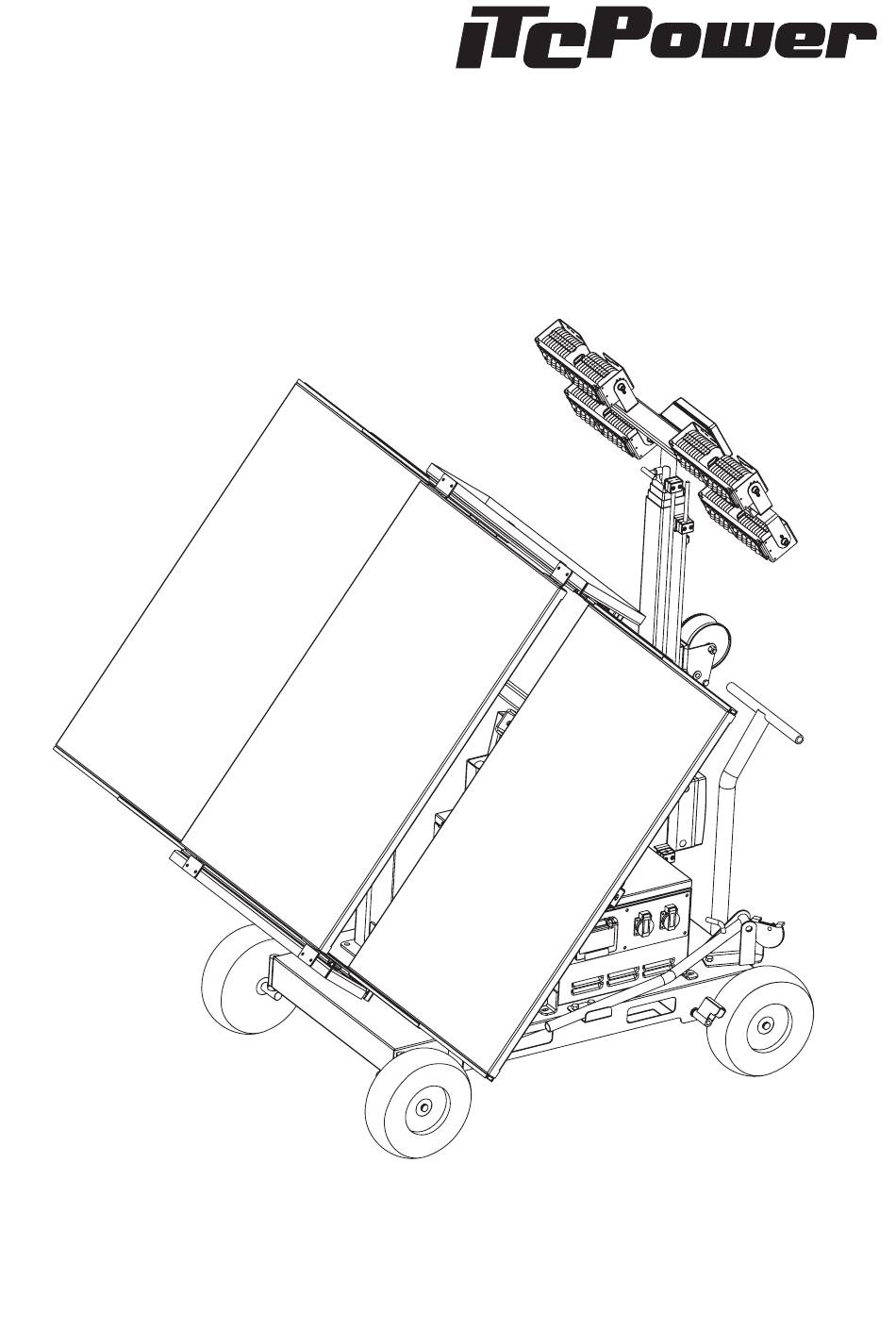

- Page 1 Solar light Tower SL-S400 User Guide...
-
Page 2: Table Of Contents
PAGE CONTENTS NO.S SAFETY 1 - 2 ASSEMBLY 4 - 7 STARTING PROCEDURE STOPPING PROCEDURE CHARGER OPERATING INSTRUCTIONS WIRING DIAGRAM 13 - 14... -
Page 3: Safety
General Safety Notes. The operator of the machine is responsible for, and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Keep the manual safe and pass it on if the machine is loaned or sold to another user. - Page 4 1.10 Specification for storage, maintenance and safety protection of lithium batteries 1.11. Short term storage: when the lithium battery is not used for a short time (e.g. within 6 months), the original battery manufacturer shall store the battery in a dry, non corrosive gas place with a temperature and humidity of - 20°C~35°C 65 ±...
-
Page 5: Assembly
2. ASSEMBLY SL-S400 Item Description Quantity LED Lamp Mast M10x30 Bolt Ø10 Washer Ø10 Spring... - Page 6 SL-S400 Item Description Quantity Transport Handle Ø12 Washer M12x30 Bolt M5x16 Flange Bolt Circuit Breaker Box Electrical Box for Lamps M6x16 Flange Bolt Stabilisers...
- Page 7 SL-S400 14,15,16 Item Description Quantity M12x25 Bolt Ø12 Washer Ø12 Spring...
- Page 8 SL-S400 Item Description Quantity M8 x20 Bolt...
- Page 9 SL-S400...
-
Page 10: Starting Procedure
NOTE The lighting tower should not be used if the wind speed is above 31mph (50kph). Only use the lighting tower on firm, flat and level ground. Place the lighting tower in the area where lighting is needed. Press down the brake and open the stabilisers. Adjust the angle of the LED lamps. -
Page 11: Stopping Procedure
Connect the lighting tower plug to the inverter and switch on the inverter breaker to ON. Turn on the lighting power switch. Turn off the lighting tower switch. Switch off the INVERTER breaker. - Page 12 Pull out the safety lock pin and rotate the mast handle anti-clockwise until the mast is fully retracted. Close the stabilisers and press the brake downwards to release.
-
Page 13: Charger
5. CHARGER SOLAR CHARGING Loosen the knob, adjust the Angle of the solar panel, then lock the knob. Loosen the lock pin and pull out the solar panel sideways Plug to 3 sockets Switch on SOLAR breaker to charge battery SOLAR INVERTER INPUT... -
Page 14: Operating Instructions
6. OPERATING INSTRUCTIONS The lighting tower must be placed on firm, flat and level ground. The vertical inclination between the lighting tower and the ground should not exceed more than 5 degrees. <5° The wind speed should not exceed 31mph (50kmh). -
Page 15: Wiring Diagram
7. WIRING DIAGRAM... - Page 16 7. WIRING DIAGRAM 7. SPECIFICATION...
- Page 17 Light Tower Model Number SL-S400 Light Coverage 1500m Lamps Lamp Wattage 4x100w Life Expectancy 30000hrs Mast Vertical Manual Max Height New weight 170Kg Dimensions (L x W x H) 1170 x 880 x 1950mm (mast down)
- Page 18 Changzhou ITC Power Equipment Manufacturing Co.,Ltd. No.7 Rongsheng Road,Cuibei,Henglin Town, Changzhou City,Jiangsu Province,P.R.China Tel +86.519.85099059 Fax +86.519.85099059 Email:info@itc-power.com.cn Http://www.itcpowerworld.com...
