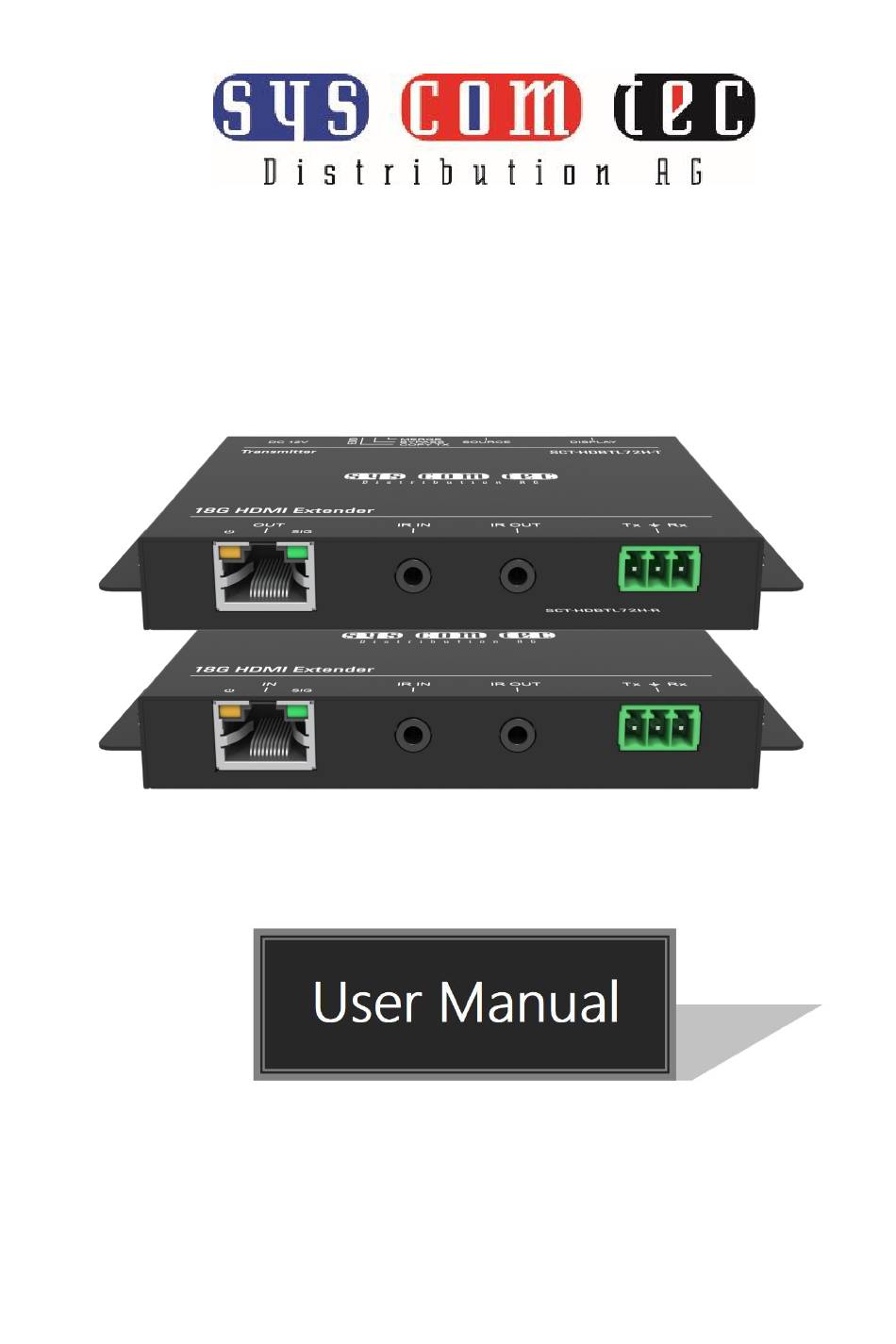

- Page 1 SCT-HDBTL72H KIT 18G HDMI Extender over CAT5e/6/7 All Rights Reserved Version: SCT-HDBTL72H KIT_2021V1.0.0...
- Page 2 Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
- Page 3 The SCT-HDBTL72H KIT is a point-to-point HDMI extender set for HDMI V2.0 and IR signals; this kit supports 4K/UHD video @ 60Hz with 4:4:4 Chroma sampling, as well as HDMI data rates up to 18Gbps and HDCP 2.2 compliant. The SCT-HDBTL72H KIT provides HDMI transmission up to 230 feet (70 meters) for 4K@60Hz 4:4: 4, or 262 feet (80 meters) for 1080p over single CAT5e/6/7 cable.
- Page 4 Transmitter Panel Description 1. CAT OUT: Connects to the CAT IN port of receiver by CATx cable. It supports 12V PoC and the transmitter can be powered from the receiver. The green LED illuminates when power is applied. The orange LED illuminates when there is a valid HDMI signal input. 2.
- Page 5 2. IR IN: Connects to IR receiver for IR pass-through. 3. IR OUT: Connects to IR emitter for IR pass-through. 4. RS232: Connects to RS232 control device (e.g. PC) or a third-party device to be controlled for RS232 pass-through. 5. DISPLAY: Connects to HDMI display device. 6.
- Page 6 Specifications Transmitter Input (1) SOURCE Input Connector (1) 19-pin type-A female HDMI Output (1) DISPLAY, (1) CAT OUT Output Connector (1) 19-pin type-A female HDMI, (1) RJ45 Control (1) IR IN, (1) IR OUT, (1) RS232 Control Connector (2) 3.5mm mini jacks, (1) 3-pin terminal block Receiver Input (1) CAT IN...
- Page 7 Kontakt: syscomtec Distribution AG Raiffeisenallee 8 DE 82041 Oberhaching Telefon: +49 (0) 89 666 109 330 Telefax: +49 (0) 89 666 109 339 E-Mail: post@syscomtec.com Homepage: www.syscomtec.com 2021V1.0...
