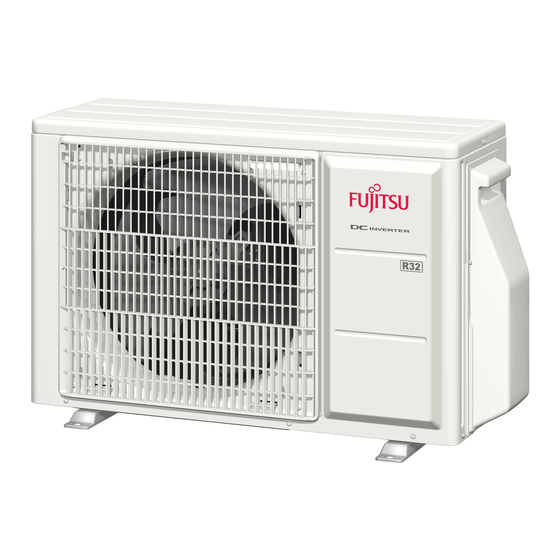

Fujitsu AOYG14KBTA2 Service Manual
Hide thumbs
Also See for AOYG14KBTA2:
- Design & technical manual (296 pages) ,
- Design & technical manual (340 pages)
Related Manuals for Fujitsu AOYG14KBTA2
Summary of Contents for Fujitsu AOYG14KBTA2
- Page 1 AIR CONDITIONER 2-unit multi-split type SERVICE MANUAL OUTDOOR AOYG14KBTA2 AOYG18KBTA2 SR_MU001EF_11 2022.04.13...
- Page 2 2-6. Outdoor unit ¢ Model: AOYG14KBTA2 Unit: mm 4-M10 hole Pitch of bolts for installation Top view Side view Front view Side view Airflow 19.7 Drain port Ø42 150.1 Bottom view Side view (Valve part) - (01-32) - 2-6. Outdoor unit...
- Page 3 ¢ Model: AOYG18KBTA2 Unit: mm 4-M10 hole Pitch of bolts for installation Top view Side view Front view Side view Airflow 19.7 Drain port Ø42 150.1 Bottom view Side view (Valve part) - (01-33) - 2-6. Outdoor unit 2. Dimensions...
- Page 4 4. Outdoor unit parts list 4-1. Model: AOYG14KBTA2 ¢ Exterior parts and Chassis Item no. Part no. Part name Service part 9322144003 Drain pipe ♦ 9900565060 Outdoor thermistor ♦ 9322811011 Protective net assy ♦ 9322556028 Top panel assy ♦ - (02-58) - 4-1.
- Page 5 Cabinet right assy ♦ 9900369064 Terminal 3P ♦ 9900435042 Terminal 6P ♦ 9900963019 Reactor assy ♦ 9322553010 Motor bracket assy ♦ 9603553005 Brushless motor ♦ 9322136008 Propeller fan ♦ - (02-59) - 4-1. Model: AOYG14KBTA2 4. Outdoor unit parts list...
- Page 6 Main PCB (Service unit) ♦ 9322418005 Heat sink ♦ 9900727062 Thermistor assy ♦ — 9900984014 Thermistor (Heat exchanger) ♦ — 9901025013 Thermistor assy (AB) ♦ — 9900985035 Compressor temp. thermistor ♦ - (02-60) - 4-1. Model: AOYG14KBTA2 4. Outdoor unit parts list...
- Page 7 Part name Service part 9323834576 Heat exchanger unit ♦ — 9322535009 S-insulator B ♦ — 9322536013 S-insulator F ♦ — 9322537003 S-insulator H ♦ — 9323045002 S-insulator V ♦ - (02-61) - 4-1. Model: AOYG14KBTA2 4. Outdoor unit parts list...
- Page 8 Rubber cushion Item no. Part no. Part name Service part 9322427021 Compressor assy ♦ 9322444035 4-way valve assy ♦ 9970206009 Solenoid ♦ - (02-62) - 4-1. Model: AOYG14KBTA2 4. Outdoor unit parts list...
- Page 9 Service part 9383070006 Valve assy ♦ 9382236038 Valve gas pipe assy ♦ 9383071003 Pulse motor valve assy ♦ 9970186042 Expansion valve coil (A) ♦ 9970187032 Expansion valve coil (B) ♦ - (02-63) - 4-1. Model: AOYG14KBTA2 4. Outdoor unit parts list...
- Page 10 4-2. Model: AOYG18KBTA2 ¢ Exterior parts and Chassis Item no. Part no. Part name Service part 9322144003 Drain pipe ♦ 9900565060 Outdoor thermistor ♦ 9322811028 Protective net assy ♦ 9322556028 Top panel assy ♦ - (02-64) - 4-2. Model: AOYG18KBTA2 4.
- Page 11 Item no. Part no. Part name Service part 9319151007 Emblem ♦ 9322555021 Front panel assy ♦ 9322570062 Switch cover assy ♦ 9322552198 Cabinet right assy ♦ 9900369064 Terminal 3P ♦ 9900435042 Terminal 6P ♦ 9322553027 Motor bracket assy ♦ 9603601003 Brushless motor ♦...
- Page 12 IPM spacer L Shield panel spacer R PWB Holder Auxiliary plate Terminal bracket assy Item no. Part no. Part name Service part 9709683774 Main PCB (Service unit) ♦ 9322420039 Heat sink ♦ 9900727079 Thermistor assy ♦ — 9900984014 Thermistor (Heat exchanger) ♦...
- Page 13 Hair pin cushion Item no. Part no. Part name Service part 9323834583 Heat exchanger unit ♦ — 9322500007 S-insulator B ♦ — 9322847010 S-insulator F ♦ — 9322501004 S-insulator H ♦ — 9323045002 S-insulator V ♦ - (02-67) - 4-2. Model: AOYG18KBTA2 4.
- Page 14 Rubber cushion Item no. Part no. Part name Service part 9322433046 Compressor assy ♦ 9322783011 4-way valve assy ♦ 9970206009 Solenoid ♦ - (02-68) - 4-2. Model: AOYG18KBTA2 4. Outdoor unit parts list...
- Page 15 Item no. Part no. Part name Service part 9383070006 Valve assy ♦ 9382236038 Valve gas pipe assy ♦ 9383071003 Pulse motor valve assy ♦ 9970186042 Expansion valve coil (A) ♦ 9970187032 Expansion valve coil (B) ♦ - (02-69) - 4-2. Model: AOYG18KBTA2 4.
