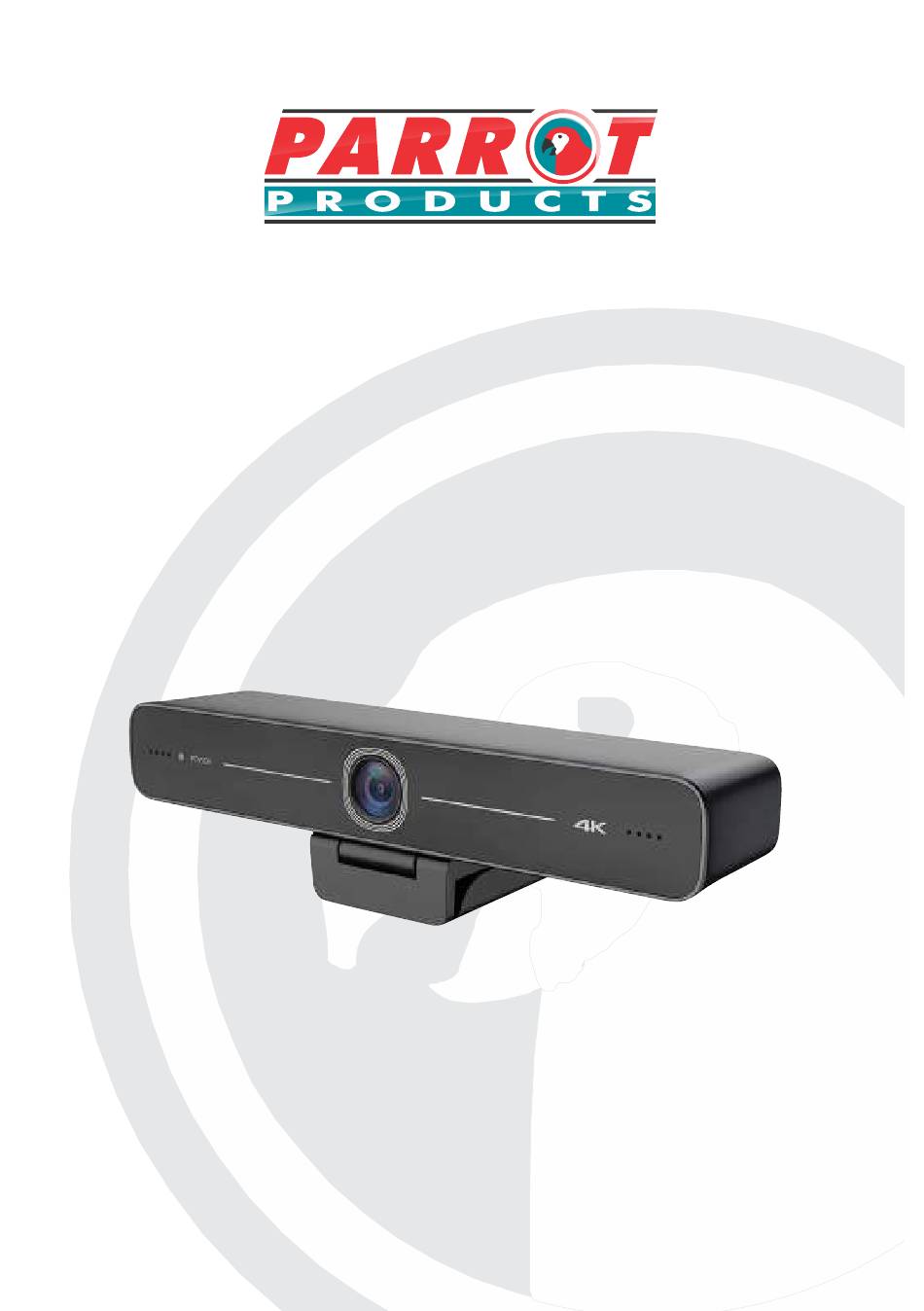

- Page 1 Video Conference Wide Angle Camera 4K - VC0003 User Manual Tel: (RSA) 010 140 4900 / Email: sales@parrot.co.za www.parrot.co.za...
-
Page 2: Table Of Contents
Content Attention ..............................2 1. Camera Installation ..............................3 1.1 Camera Interfaces ..............................3 1.2 Camera Operation ..............................3 2. Product Overview............................... 3 2.1 Product Introduction ............................3 2.1.1 Dimension ..............................3 2.1.2 Accessory ..............................4 2.2 Main Features ..............................4 2.3 Technical Parameter ............................ -
Page 3: Attention
Attention This manual introduces func ons, installa ons and opera ons for this camera in detail. Please read this manual carefully before installa on and use. 1. Cautions 1.1 Avoid damage to product caused by heavy pressure, strong vibra on or immersion during transporta on, storage and installa on. -
Page 4: Camera Installation
1. Camera Installation 1.1 Camera Interfaces Figure 1.1 Product Interfaces 1.Camera Lens 4. Tripod fixing hole 7.USB3.0 interface 2.Indicator light 5.Posi oning hole 3. Built-in MIC 6. Bracket 1.2 Camera Operation 1) Product Installa on: Secure the device on a LCD screen, top of computer; place directly on a desk ordesk tripod moun ng. -
Page 5: Product Overview
2.2 Main Features VC0003 is a 4K ultra-high-defini on ePTZ camera with a new design. With AI intelligence, images are framed according to the number of people in the scene, and faces are centered in the frame . This model is equipped with superior func ons, which employs advanced ISP processing algorithms to provide vivid images with evenly clear brightness, strong colour layering, high resolu on, and fantas c colour rendi on. -
Page 6: Technical Parameter
Auto Framing: Employing superior face detec on algorithms to intelligently and automa cally frame the number of people in the scene and centering their faces. Wide FOV: 100° wide angle and small distor on lens op ons. Video output interface: Video output interface USB 3.0. Mul ple Audio/Video Compression Standard: Supports H.264, MJPG, YUY2, NV12 video compression, to Low Noise and High SNR: Super high SNR image is achieved with low noise CMOS. -
Page 7: Interfaces Instruction
Hardware 2.4 GHz Intel@ Core 2 Duo or higher, 2GB or higher, USB 3.0 port (USB3.0 for 4K) Requirement Other Parameter Input Voltage Input Current 1A(max) Power 5W(max) Consump on Stored Temperature -10℃～+60℃ Stored Humidity 20%～90% Working -10℃～+50℃ Temperature Working Humidity 20%～80% Dimension 180mm×42.5mm×46.3mm... -
Page 8: Application Instruction
3. Application Instruction 3.1 Remote Control 3.1.1 Keys Introduction 1.Standby Key Device enters standby mode a er pressing it once and the device re-displays the picture a er pressing it again. 2.Camera Selec on Select the camera address to control. 3. -
Page 9: Applications
3.1.2 Applications 1) In this manual, “press the key” means a click rather than a long-press, and a special note will be given if a long-press more than one second is required. 2) When a key-combina on is required, do it in sequence. For example,“ 【*】 + 【#】 + 【F1】 ”means press“ 【*】 ”first and then press“【#】”... -
Page 10: Menu Introduction
5）Focus Control Focus + (near):Press【FOCUS +】 None Focus - (far): Press【FOCUS -】 None Auto focus: not supported Manual focus: not supported 6) Camera Remote Control Address Se ng 【*】+【＃】+【F1】:Camera Address No.1 【*】+【＃】+【F2】:Camera Address No.2 【*】+【＃】+【F3】:Camera Address No.3 【*】+【＃】+【F4】:Camera Address No.4 3.2 Menu Introduction 3.2.1 Main Menu Press 【... - Page 11 2) System Setting Move the pointer to (Setup) in the Main Menu, click the【HOME】key and enter into the (System Se ng) as shown below, Setup ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Image Style Default (Auto Framing) [↑↓]Select [← →]Change Value Image Style: default / standard / clear / bright / so can be set Intelligent zoom: on / off...
- Page 12 WDR: Off, 1~8 Shu erPriority:1/30,1/50,1/60,1/90,1/100,1/120,1/180,1/250,1/350,1/500,1/1000,1/2000,1/3000,1/4000,1/6 000, 1/10000 (only available in Manual and Shu er priority mode) Brightness: 0~23 (only available in Brightness priority mode) 4) Colour Move the pointer to the (COLOR) in the Main Menu, click the【HOME】and enter the (COLOR sub menu) as follow, COLOR ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝...
- Page 13 5) Image Move the pointer to the (IMAGE) in the Menu, click the 【HOME 】 and enter into the (IMAGE sub menu) as follow, IMAGE ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Brightness Contrast Sharpness Flip-H Flip-V B&W-Mode Color Gamma Default Low-Light Mode Close Brightness: 0~14 [↑↓]Select [←...
- Page 14 7) Version Move the pointer to the (VERSION) in the Main Menu, click the 【HOME】 and enter the (VERSION) as follow, VERSION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Camcra Version 1.0.0 2020-12-16 [↑↓]Select [← →]Change Value 8) Restore Default Move the pointer to the (RESTORE DEFAULT) in the Main Menu, click the【HOME】and enter the (RESTORE DEFAULT) as follow, RESTORE DEFAULT ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝...
-
Page 15: Maintenance And Troubleshooting
4. Maintenance and Troubleshoo ng 4.1 Camera Maintenance 1) Please power off the camera and disconnect the power adapter and socket, if it’s not used for a long run. 2) Use so cloth or ssue to clean the camera cover. 3) Wipe it with a so , dry cloth when cleaning the camera lens.
