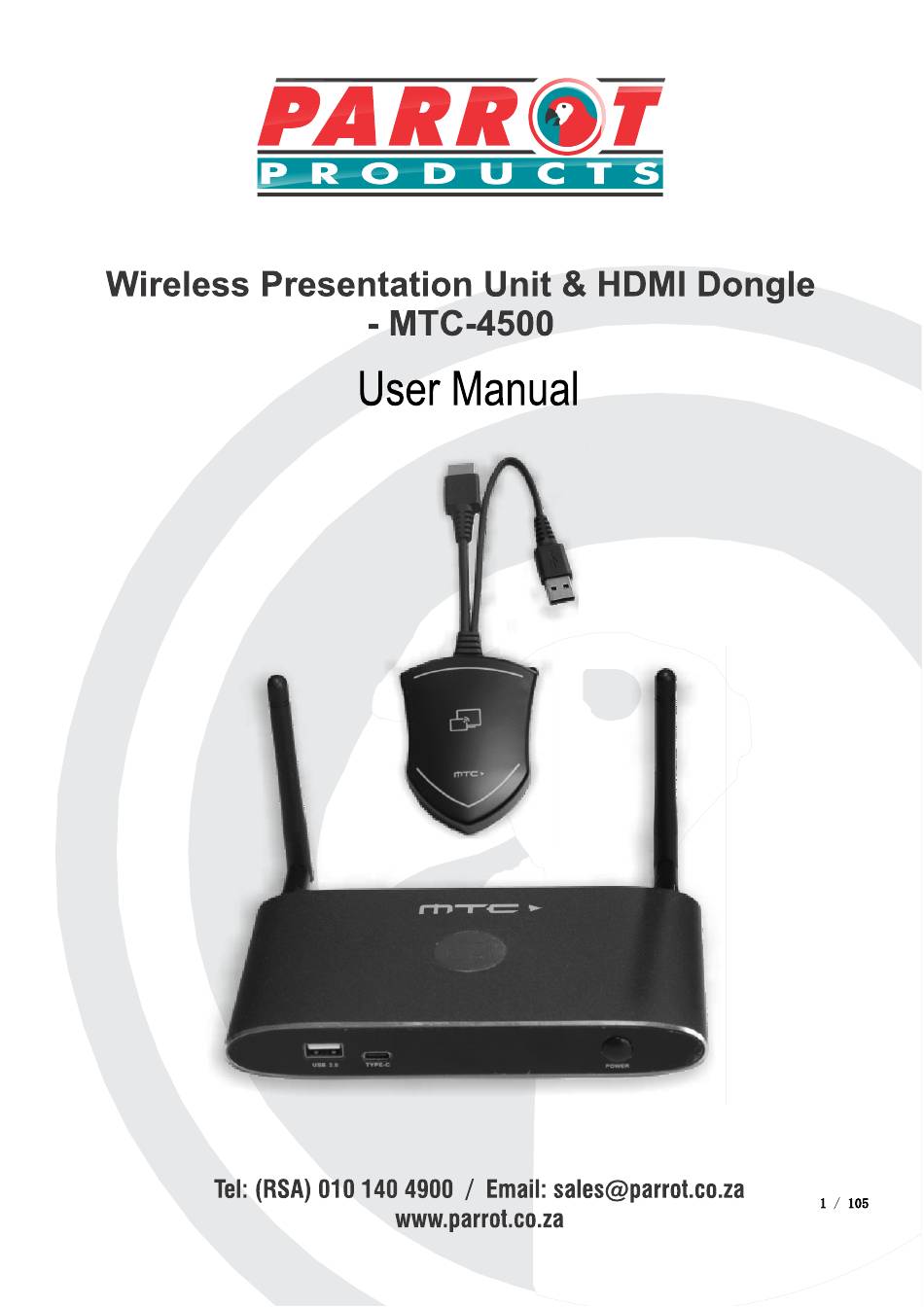

Summary of Contents for Parrot Products MTC-4500
Page 2
Can transmit smart devices' mirror, photos, videos, music etc. Support the MTC-4500 Teleporter "show-me" button. Support USB/HDMI/USB Type C plug-in auto configuration/pairing for MTC-4500 Teleporter "show- me" button. Support "Airplay" for apple device. MTC-4000D, MTC-4000U and MTC-4000H: ...
Page 4
Firmware Update ........................75 6.6.2 Automatic Upgrading ....................... 75 Other settings ..........................76 6.7.1 Auto create launcher ........................ 76 6.7.2 Clear history after meeting ...................... 76 About device ..........................77 Updating MTC-4500 ..........................77 4 4 4 4 / 105...
Page 5
How to use AirPlay? ........................97 Transmit Android device wireless ....................97 8.3.1 “MTC-4500” APK for Android ..................... 97 WIFI Recommendation Setting ......................100 Check the WIFI config on base unit ..................100 Check the WIFI RSSI on dongle or Mobiles ................100 Problem Shooting ..........................
MTC-4500 Set MTC-4500 makes connecting or participate in a meeting by a most simple way, touching a button. It also allows the other to join in the meeting more actively. The result is to make the meeting more efficient and productive. A typical MTC-4500 contains one Base Unit MTC-4500 and two Transmitters e.g.
Page 7
Airplay for IOS For smart IOS devices to share the screen. Accessories List Name Description 2 pcs of antenna are included in the box. To avoid Antenna damage, they are not pre-mounted. The antenna can rotate for a better wireless connection. International plug inter-changeable power Power adapter adapter, of which the plugs includes US, Europe,...
3. Panel Layout About this chapter The installation chapter gives an overview of the interface of MTC-4500. Overview Hardware Interface MTC-4500B Front Panel MTC-4500B Rear Panel MTC-4000D/MTC-4000U/MTC-4000H Front panel Software Interface Home Screen 3.1 Hardware Interface 3.1.1...
Name Description USB port, for dongle pairing, mouse control, USB Front USB connector touch screen etc. Front Type-C connector Type-C port, for dongle pairing. Power Button Turn on or off the device. Initializing indicates RED, power on indicates Back-lit LED indicator flashing GREEN, “Ready to share”...
Page 12
Name Description 2 channel analog audio output, Connect a 3.5mm mini-jack Line audio PC connector from this jack to the Line in jack of an audio output system. Rear USB3.0 USB port, for USB dongle pairing, mouse control, USB touch connector screen etc.
The USB port is used for creating or upgrading Launcher by clicking Download button, when a USB stick is plugged in. 3.1.3 Factory Reset Start up the Base unit. When the Home Screen is shown up, press the reset button at the rear panel of base unit. Press this button with a pointed object, e.g.
Moderator Control Add a sub-window bar to enable previewing the connected devices: ON Real time preview: ON System settings Date & time: Automatic date & time: use network-provided time Auto Standby: Never Language: English ...
Page 15
When LED indicator is blinking Green, it indicates 1) the button is plugged in the laptop and initializing or waiting for user to start the MTC-4500 application, 2) pairing/software upgrading of the button in the Base Unit is in progress.
Page 16
Supply power, or plug into the base unit for pairing the USB connector Button to the Base Unit or upgrade the dongle. Touch the sensor button to start displaying the content of the Touching Button PC/Lap-top’s screen on the main screen. Touch the button during the meeting will toggle the sharing of the screen.
3.2 Software Interface 3.2.1 Home Screen Name Description WiFi Direct mode: internal access point is enabled WiFi Infrastructure mode: “Client-Mode“ , WiFi connection to router is established, icon displays the current signal strength. WiFi Indicator A secure WiFi connection is established, or connection to a router failed: WiFi is not available: LAN Infrastructure mode: access point is disabled...
Page 18
WiFi IP Assigned IP: address of base unit in LAN; “N/A“ = LAN IP no connection to network Guest: MTC-4500 SSID: Guest Staff: Staff SSID SSID: Staff Name of WiFi network for Guest and Staff, which allows mobile devices to connect with the base unit.
4. Installation The installation chapter gives an overview of the different ways to install and connect MTC-4500 Base Unit. Overview: Installation methods for the Base unit Table mounting Wall mounting Recommendations about antenna placement and orientation ...
Page 20
2. At the bottom of Base Unit, turn in 2 flat screws into 2 holes to be fasten enough. Note: Mounting screws and plugs are not included in the MTC-4500 box . The type of screws depends on the type of wall (stone, wood, plasterboard, ...) you are mounting the Base Unit to. Make sure the head of the screw is not larger than the hole in the bottom of base unit.
4.2 Wiring Diagram MTC-4500B 4.3 Power Connection The Base unit can be powered by the external universal power adapter. How to connect the external power adapter 1. Plug the power connector to the power adapter to the power input connector of the Base Unit 2.
4.5 Audio Connection MTC-4500 transmitter can transmit the audio output of the PC/Lap-top, re-direct and send to the Base Unit together with the video signal. The audio will be output at line levels from mini jack socket 3.5mm connector and via the HDMI output connectors simultaneously.
Page 23
audio connection is not necessary. The audio signal is sent together with the video signal to the display. The system is shown as below. MTC-4500B How to connect separate audio 1. Connect an audio cable with mini jack socket 3.5mm connector into the audio of the Base Unit 2.
2. Check Setting configuration, to adjust the Volume set in MTC-4500 setting tab. PC/Lap Sound As default set, MTC-4500 will mute the internal speaker of PC/Lap and route the audio to the base unit, after PC/Lap is successfully mirroring desktop to the main screen, in order to avoid the repeated audio.
Page 25
2. Connect the other side to LAN. 3. If the LAN Ethernet switcher support POE (Power over Ethernet), it could power up MTC-4500B than using the external power adapter. MTC-4500B The LAN connection can be used for: Network integration of Base Unit in guest or company network. ...
2. To control the sharing PC/Lap-top. 3. To activate system upgrading 4. For white board or annotation during a presentation, MTC-4500 transmits Video, Audio and the USB-HID function for mouse-control and click-function of a touchscreen. Connect touch-interface of your screen to the USB-port on your laptop or PC.
Start 5.1 Mobile device: Wireless Connection Download the application namely “MTC-4500” (for example scan QR-Code in Home screen) in Android Google Play market for Android mobile device. For IOS devices, use Airplay to mirror the desktop. MTC-4500 provides two ways to discover the MTC-4500B for mobile devices.
5.1.2 Enable LAN connection: Be sure the base unit MTC-4500B is connected to the Network. When Local IP shows an active IP address, such like 10.10.40.52, it indicates base unit is successfully connected to the LAN and get an appointed IP address. Note: When it shows “N/A”, means the MTC-4500B is not connected to the LAN (Local Area Network) by CAT cable or it failed to get an available IP address by the corporation router.
5.2 Pairing transmitter with base unit 1. Connect the USB of MTC-4000D (USB Dongle) to either of the 2xUSB port of MTC-4500B, MTC-4000U (Software Dongle) to USB port/Type C port, MTC-4000H (HDMI Dongle) to USB port, to pair all the transmitters with base unit.
4. After completing the pairing, the message table shows “Succeeded to pair!” on the home page, as shown below. Then, please un-plug the transmitters and use it for the mirroring on your laptop. If error-message “Configuration fail” is shown, please check the connection of USB/type C to keep stable after plug-in, and try again.
Page 31
Connecting the USB stick to base unit and click the DOWNLOAD icon on the homepage to download “MTC-4000-windows.exe” for windows PC/Lap-top, “MTC-4000-macOS.app” for MacBook, “user manual” and “MTC-4500.apk”. Plug the USB stick to the USB port of your PC or lap-top to copy the relative “Launcher” as above to PC or lap-top. Continue with step 4.
Page 32
2. “MTC-4000-pro.exe” doesn’t run automatically after the plug-in of the dongle, but require user to manually click and execute the “MTC-4000-pro.exe” every time. MTC-4000U (Software Dongle): 1. Plug MTC-4000U into USB/Type C port to pair with base unit. The “MTC-4000.exe” for windows PC/Lap-top, “MTC-4000-macOS.exe”...
Page 33
3. It will show “Ready to share”, click to share the desktop to screen. Note: for second time user, MTC-4000U will automatically run to share screen, no need to click “Launcher”. 33 33 33 33 / 105...
Page 34
Non-Driver based transmitter MTC-4000H (HDMI dongle): 1. Plug USB port of MTC-4000H to base unit to pair. 2. Plug USB port and HDMI port of MTC-4000H to PC/Laptop/MacBook. (USB port for power) 3. Till the transmitter LED turn static green and touch to share the screen or click the visual button on bottom right corner of PC.
2. Connect your mobile device to one of the displayed WiFi networks. Guest: MTC-4500 Staff: Staff SSID 3. Open the “MTC-4500” application in your mobile device, and you will see the Home Page of “MTC-4500” as shown below. and click the device list refresh button for Android, which is highlighted...
Page 36
4. Select the base unit you want to connect, enter password and mirror by clicking “Share Screen”. 5. After completing the pairing, it shows OSD “Welcome ***” on the home page. For example, if we connect it by a HUAWEI-PLA-AL00, it shows a “Welcome HUAWEI-PLA-AL00” on screen, as shown below. 6.
Page 37
Click “Fullscreen” to be full screen in the main screen when more than one signal is connected and shared. Click the upper right corner icon, check the “MTC-4500” application version information. 37 37 37 37 / 105...
(1) of all connected transmitters and android devices via “MTC-4500” APK at the right edge of the screen. Just scroll UP or DOWN (3) to see further preview pictures. 38 38 38 38 / 105...
1 1 1 1 2 2 2 2 3 3 3 3 As soon as presenter is clicking with mouse of Base-unit, or clicking with finger at touch-screen, the appropriate participants of the meeting is activated, another click at the arrow shows his picture at the main screen in full format.
1 1 1 1 2 2 2 2 The toolbar for Whiteboard or Annotation appears in the bottom of your screen. If another user is mirroring, the Whiteboard & Annotation function is closed. 5.5.1 Whiteboard Click on the icon to enter the white Whiteboard page. You can create free drawings with your finger at touch screen, mouse (multi-touch capability).
Page 41
Tool bar 1 Add an empty page Delete the actual page Display previous or next page Undo: one step backward in changes Redo: one step forward in changes Erase part of drawings or annotation, change diameter by a longer tap Tool bar 2 Clear the entire drawing/writing on the screen Pen allows writing/drawing in different colors...
Tool bar 4 Save the current screenshot on local storage (PNG+WMN) File options Close Whiteboard to go back to Home screen, actual project can be saved on local storage (WMN) File options: Open WMN-file from local storage and continue/edit an older project ...
Page 43
Use the toolbar to select one of the following functions. Icons Function Undo: one step backward in changes Redo: one step forward in changes Erase part of drawings or annotation, change diameter by a longer tap Tool bar 1 Clear the entire drawing/writing on the screen Pen allows writing/drawing in different colors Draw basic geometric shapes Close Whiteboard to go back to Home screen,...
Connect base unit ID & Password or LAN IP to laptop, to enter WiFi IP browser page to configure settings of base unit. The “MTC-4000.exe” and “MTC-4000-Pro.exe” for windows PC/Lap-top, “MTC-4000-macOS.app” for Mac OS X, “user manual” and “MTC-4500” for Android can be downloaded here. 44 44 44 44 / 105...
Page 45
Click “Console” on the top right corner to enter into menu to configure. A password is required to enter the configuration menu. The default password after Reset is ”admin”. You can change the password in menu “Security setting”. Note: If user has forgotten his password, you need to make a Factory Reset to restore“admin” as password. 45 45 45 45 / 105...
6.1.1 Wireless network To take the full benefits of the MTC-4500 possibilities, MTC-4500B should be properly integrated in the organization’s network (company/university/school). This wizard allows user to create a custom configuration for integration of MTC-4500 into the existing wireless infrastructure in larger organizations.
Page 48
6.1.1.1 Wireless network configuration wizard Enter a device name for the Base-unit. We recommend to take a descriptive name, if you have more than one MTC-4500 installed. The default name is “MTC-XXXXX”. Only "a-z","A-Z","0-9","-_" and space are legal character. Click “Next step”. The following three connection methods are available:...
Page 49
WiFi access point of Base-unit to present with all their units. No Internet access is required. The LAN-Port of Base-unit is not connected. The PC-users can present with or without dongle by MTC-4500 PC driver (Windows or MacOS). Android users (BYOD) can share their content by installing the free APP on their device and IOS users can use AirPlay (Apple only).
Page 50
You can start using MTC-4500 in this mode without any other wireless network configuration. Click “Next step” to configure the network which dongle needs to be paired to. Set up WiFi access point Set-up WiFi access point includes, Frequency, Channel, Password.
Page 51
After it please re-pairing dongle with the base unit. 6.1.1.3 Wireless Infrastructure mode MTC-4500 can connect to a wired and a wireless network simultaneously. The basic unit is firmly "connected to the company network with LAN. Guest users connect to WiFi "Guest" access. The employees (“Staff”) connect to their usual access point of the corporate network, without having to change the WiFi.
Page 52
The dongle is connected to the WiFi access Point of Guest network, which in turn is connected to the internal WiFi access Point of MTC-4500. (The dongle can also be configured to connect to the enterprise’s access point.) Mobile users stay connected to their current network, have access to their normal corporate environment, as well as Internet access.
Page 53
Click “Next step” to edit or change Guest network SSID and Staff network SSID. WiFi name of guest and staff will be shown on home screen after “Submit settings”. After submitting successfully, please re-pair dongle with base unit. “Dongle connects to base unit via LAN.” Choose a LAN network which is used for the company staff users.
Page 54
Note: usually in this mode, dongle paired for internal staff usage. Select SSID: Choose a wireless network to connect to base unit for guest. Password: enter password to connect the base unit to the guest network. Select dongle SSID: choose the same LAN network which base unit connects, to pair the dongle. Password: enter password of the LAN network.
Page 55
The dongle and/or the mobile devices can connect to the secured wireless access point of the company network. The Base-unit of MTC-4500 is hard-wired connected via LAN to the Ethernet of the Company network. The Staff-users connect to their usual access point of Company network, without the need to change the WiFi.
Page 56
Click “Next step” to choose a LAN network which is used for the company staff users and pair the dongle into this network. Click “Next step” to edit or change Guest network SSID and Staff network SSID. 56 56 56 56 / 105...
WiFi name of guest and staff will be shown on home screen after “Submit settings” After submitting successfully, please re-pair dongle with base unit. 6.1.2 Ethernet Configure the Ethernet settings. MTC-4500B has 2 LAN ports, if the base unit is connected with 2 LAN cable, you can configure from below tab.
6.1.3 Auto change password The password remains unchanged for all participants of the meeting, while at least one dongle or a WiFi network of a mobile device are connected with Base-unit. After the user is disconnected, a configurable time runs. ...
Click to set the configuration, including Never: never change WiFi password. (Even after POWER-OFF condition) 5 minutes: change WiFi password every 5 minutes. 30 minutes: change WiFi password every 30 minutes. 1 hour: change WiFi password every 1 hour. ...
Page 60
1920x1080 @50Hz 1920x1080 @30Hz Note: if the display is only support FULL HD, the 4K resolution will not be shown on the list of the below resolution. 60 60 60 60 / 105...
HDMI CEC Base unit support CEC function if the connected display support CEC function. Device auto power off: ON (Default): Display will automatically turn off when base unit is powered off. OFF: Display will not automatically turn off when base unit is powered off. ...
Page 62
Volume User can select volume of display from 0 to 100. 62 62 62 62 / 105...
6.2.3 AirPlay screen quality Click to select the image quality when transmit apple device by “AirPlay” mode. 6.2.4 Screen display ID Show device name and password when mirroring: Name (ID) and WiFi-password can be shown or hided at top status-line of main screen. 63 63 63 63 / 105...
Show user name. 6.2.5 Home Screen background image When powering MTC-4500 the start screen will be displayed. User can change background image of Home screen. Select the image (jpg, bmp, png, gif with resolution 1920x1080 p.) from suitable directory and activate box for selection.
6.3 Moderator control Add a sub-window bar to enable previewing the connected devices. Tick the icon, it will show the sub window as below once devices are connected to base unit. 1 1 1 1 2 2 2 2 65 65 65 65 / 105...
Page 66
If do not tick the icon, the preview window bar will be minimized as below. Real time preview If tick the icon, the preview window will show real time preview, if not tick, the preview window will only show a static picture as below.
6.4 System settings 6.4.1 Buttons: Show Device name, MAC Address, Serial Number, Device Version, Device Status, Last Action, Item Operate. Paired Show properties of connected dongles and can be managed from this page. 6.4.2 Date & Time Includes Automatic date & time, Set date, Set time, Select time zone. ...
6.4.3 Auto standby If the Auto Standby mode is activated, MTC-4500 will automatically switch to power saving mode, a selectable time after the last dongle was plugged out, or WiFi of a mobile unit was disconnected, or there is no operation at the system.
6.4.5 Reset Doing factory reset to restore unit. 6.4.6 Configuration File Configuration File is a packaged file which contains all the configuration parameter of MTC-4500B, which could be downloaded and copied to multiple device which needs to use the same configuration. 71 71 71 71 / 105...
6.5.1 Security level Based on user requirements, three different security levels can be set in the menu of MTC-4500, to satisfy different security requirements, according to different security sensitive environments or security policies. A security level is a predefined set of settings. Click on the corresponding entry in the menu if you want to adjust the respective security features.
6.5.2 Login Password Change admin password for entering setting menu on webserver. Default password, or after a RESET, is “admin”. You can change the password as you like. You can also deactivate the password entry, set the appropriate checkmark and “Confirm settings”. 6.5.3 Connection password Two type of password format can be chosen to show on home screen.
6.6 Firmware upgrade 6.6.1 Firmware Update To upload local updating files to upgrade base unit. 6.6.2 Automatic Upgrading Tick to choose upgrading from OTA via Internet or from local files. 75 75 75 75 / 105...
6.7 Other settings 6.7.1 Auto create launcher Determines, when using a USB memory at one USB-port of Base-unit, the Launcher program “MTC-4000” will be copied automatically on USB memory. Enable or disable the corresponding box. 6.7.2 Clear history after meeting Pictures, videos, music of mobile units will be stored in memory of Base-unit.
Check the firmware version of base unit and web server version. 7. Updating MTC-4500 An update of the firmware can be useful to take the advantage of new features of MTC-4500 or to fix known issues and bugs. MTC-4500 includes two methods of updating. Updating by USB stick and webserver.
There are up to three different areas for updating: Firmware Base-unit, Firmware and Launcher for PC/Laptop or MAC “MTC-4500.exe“. All software is stored in Base-unit, to be transferred manually to different devices. 7.1 Check current firmware information Base-unit: webserver “console” menu / About device.
Page 79
MAC OSX: Dongle/Launcher: firmware version can be visual in the ““MTC-4500”.app” program icon in MAC OSX status bar, by clicking the ““MTC-4500”” icon and select “About”, as shown below. Click “About” to check dongle and launcher program. 7 7 7 7 9 9 9 9 / 105...
When dongle firmware or “Launcher” firmware are older version, or in other words dongle firmware or “Launcher” firmware doesn’t match with the base unit version, it shows up ““MTC-4500” ATTENTION” alert message box in the window OS or MAC OSX, as below.
Page 81
Note: The USB port can only support maximum 500ma. Please use a small power U-disk as upgrading USB drive. MTC-4500 recognizes the “update.img”-file at a plugged-in USB stick automatically and starts the “Full Update” procedure. You can plug out the USB stick within 10 seconds to stop the update.
therefore note all settings within the Sub-menus before doing Factory Reset. The update of Base-unit is finished. Second method to upgrade base unit as below: Base unit can be upgrade via webserver console menu as below: Select a “update.img” file to upgrade to target version. 7.3 Upgrading and Pairing of Dongle: 1.
Connect the USB drive to either USB port of base unit Click the “Download” icon in “Home Page”, pls see as below: The Launcher “MTC-4500” is written to the USB-stick, an OSD-windows shows the progress. When ready, unplug the USB-stick. 83 83 83 83 / 105...
Page 84
Method 2: Via WIFI 1. Connect PC to MTC-4500B’s SSID and enter password in homepage, see pictures as below: 2. Open Browser and enter WiFi IP: 192.168.43.1:8000. 3. Click to enter “Launcher” download webpage. Shown as below: 4. Choose and click Windows or MAC launcher to download. 5.
For both two methods, user don’t need repeat the above steps since the second time plug-in. The Launcher program "MTC-4500 for Windows" and "MTC-4500 Pro for Windows" includes by default an additional virtual driver "ExtendedDesktop" to optionally install the Windows 10 Extended Desktop functionality, if they are needed.
Page 86
Right-Click on the “*.service” or “*.serviceC3”, for example right-click on “MTC-4000AutoServiceC3.exe”as shown below, and click to End Process Tree. Check again the task manager, to be sure there is no more any “MTC-4000” programs still running in the task manager. And check again to be sure there is no more any “MTC-4000” in the C:\Users\***(userame)\AppData\Local\”MTC-4000”.
Mirroring PC desktop You can operate MTC-4500 for Windows optionally with or without Dongle. If there are several participants in a meeting, mixed operation is also possible. 8.1.1 Extended Desktop for Windows 10 The Launcher program "MTC-4000 for Windows" and "MTC-4000 Pro for Windows" includes by default an additional virtual driver "ExtendedDesktop"...
LAN on the network using a network cable. 3. Double-click the "MTC-4000-windows.exe" Launcher program , a list of all available “MTC-4500” in the same network will be displayed, select which device you want to connect to. The connections are password protected (lock icon...
Page 89
(LAN connection: several receivers possible) (WiFi: only 1 receiver) 4. Enter base unit password and click “connect”, the system is ready to share. You can also manually connect by entering the name (SSID) or IP address. (click icon Enter the corresponding base unit password, press ' K', the system is “Ready to share”. 5.
6. Click the visual button again, to stop mirroring, window color shows green again. You can minimize the APP-window, in Windows taskbar you can see if screen is mirroring or not Right click the MTC-4500 status icon in Windows taskbar to open up the context- menu. ...
Page 91
“Options”: Extended Screen: Transfers extended desktop of active source. (depending on your operating system, may require the installation of the virtual driver “ExtendedDisplay“ for function with Windows 10). The primary screen (1) is displayed on the laptop and the virtually extended screen (2) is displayed on the main screen.
Page 92
If you select the “Extended Screen” feature, Windows automatically switches to “Extended Mode”. If you stop the transfer with MTC-4500 (Pause), Windows remains in " Extended Mode" until you press "Windows key + P" on the laptop to select the "PC screen only" mode.
Keep Aspect Ratio: Keep the original aspect ratio to display on the main screen. Stream Mode: Fluency Priority: Default Quality Priority: Better quality on video and audio. Low Latency Mouse: The setting is applied individually for this laptop only. The shape of mouse-pointer is equal the shape in application.
3. Double-click the "MTC-4000 for Mac" Launcher program , a list of all available “MTC-4500” in the same network will be displayed, select which device you want to connect to. The connections are password...
Page 95
(LAN connection: several receivers possible) (WiFi: only 1 receiver) 4. Enter base unit password and click “connect”, the system is “Ready to share”. You can also manually connect by entering the name (SSID) or IP address. (click icon Enter the corresponding base unit password, press 'OK', the system is “Ready to share”. 5.
“Exit”: End APP. Exiting the App completely. If you click the “close” in the menu bar of the app, the app in the top menu-bar is only minimized and can be recalled again from the top menu-bar at any time. 8.1.7 Options for Apple MacOS, MacBook –...
Please open the control center on the desktop with the appropriate gesture. Click the airplay icon on your Apply device and select the receiver device MTC-4500 to connect. Now you could mirror your screen content wireless through the base unit to the main screen. 8.3 Transmit Android device wireless 8.3.1...
Page 98
Guest: MTC-4500 Staff: Staff SSID 3. The main interface of “MTC-4500” is shown as below. Click the device list refresh button which is highlighted in red circles as shown below: 4. Select the base unit you want to connect, enter password and mirror.
Page 99
5. When sharing to main screen, it shows OSD “Welcome ***” on the home page. For example, if we connect it by a HUAWEI-PLA-AL00, it shows a “Welcome HUAWEI-PLA-AL00” on screen, as shown below. 6. Now you can mirror your desktop of your mobile. 7.
9. WIFI Recommendation Setting 9.1 Check the WIFI config on base unit Please use a WIFI analysis software to place it at the same place as the base unit, to check the WIFI environment, in order to select the clean or unused WIFI frequency between 2.4GHz and 5Hz, and the WIFI channel as below. 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 5GHz: 36, 40,44, 48,149, 153, 157, 161 9.2 Check the WIFI RSSI on dongle or Mobiles...
Page 101
“MTC-4500”. Find out the problem you’ve encountered in the table below and apply the solution. Problem Cause Solution Use “MTC-4500 for Android” WIFI password of base unit Reconnect the mobile by entering application in Android device or changed when android or iOS password showed on home screen.
Page 102
WiFi of Base-unit. When the windows. Exe” or “MTC- Launcher program is preinstalled 4000 macOS. app” for first one time, “MTC-4500” is ready to on your Laptop /PC. Run this use later immediately. Starter-program. You can run the Starter App without Admin-rights.
Page 103
“Power-LED” is flashing at Base insert a dongle into laptop. unit. Power-supply is missed. When using window 7 the MTC-4500 uses resource from the It’s safe to ignore this following message about the GPU. In combination with other message and choose “Keep...
Page 104
To use AirPlay, you must MacBook/iPhone/iPad. Mac OS 10.9 connect the iOS device to the IOS 8.0 and later (MTC-4500 app) WiFi of MTC-4500B base unit and enable the AirPlay feature in the Control Center. Update the iOS device to a ...
=> picture is jerky Can’t work with Android device? Operation System Requirement Update to the later OS Android 2.3 and later (MTC-4500 app) 11. Contacting MTC Technologies For any inquires, issues or comments concerning our products, please send an email to the address below.
