Commercial Electric 5623-WH Installation Manual

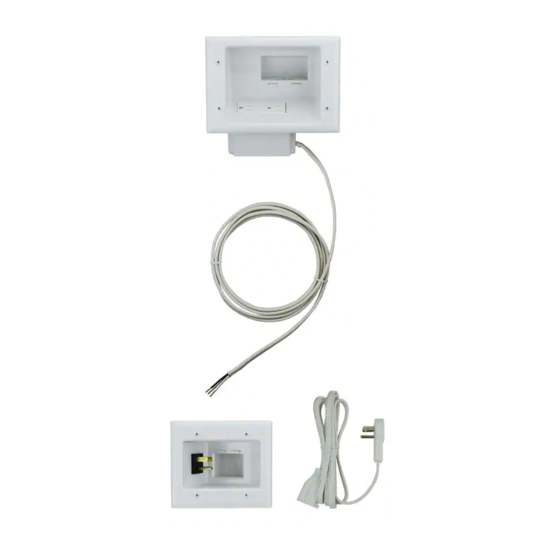

PACKAGE CONTENTS

A - Pre-Assembled Top Plate w/ 15 A/125 V Duplex Receptacle,
8 ft 14/2 With Ground Pre-Stripped Electrical Building Wire
and Attached Mounting Wings
B - Bottom Plate With Easy Push-in Connectors and Attached
Mounting Wings
C - 6 ft. Extension Cord w/ 360˚ Rotating Flat Head
D - Electrical Box
For video information visit homedepot.com and search SKU 1001863164 or model number 5623-WH

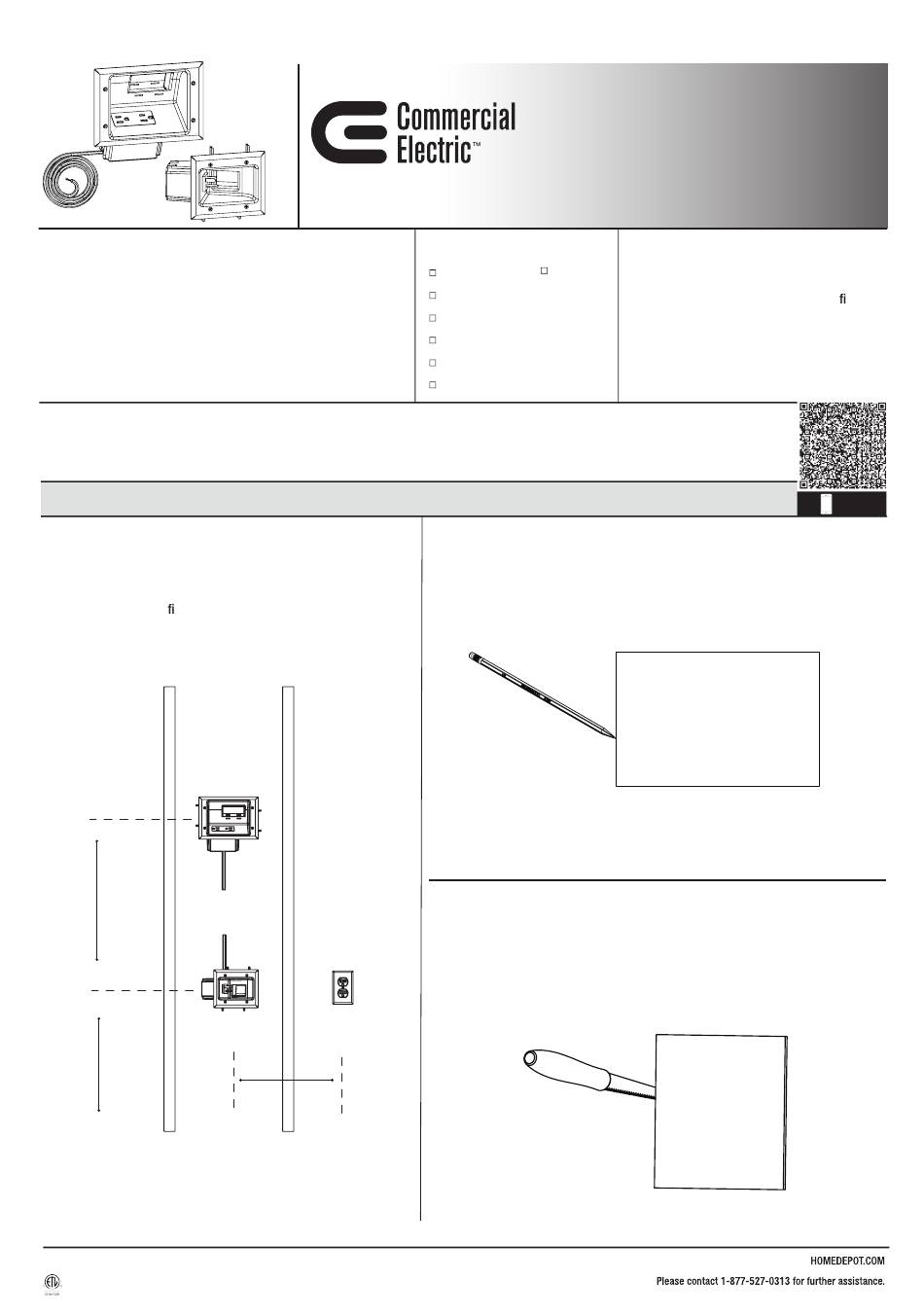

Installation
1

PREPARING THE WALL FOR INSTALLATION

□
Determine the top and bottom plate location*.
□
Use the stud nder to center between the wall framing
studs.
□
Be sure to frame your plate both vertically and
horizontally.
Up to 7'
Outlet
Height or
18"
*This kit is designed for standard 2x4 framed walls.
Both top and bottom plates are installed between the same two
studs.
ETL LISTED
CONFORMS TO
UL STD. 498
CERTIFIED TO
3026001 CAN/CSA STD. C22.2#42.1:200-1

TOOLS NEEDED

Up to 6'
RoHS Compliant
This product is patent protected by
U.S. Patent number: 7390964B2, 7399920B2,
D553475S, D554475S and D568719S
Installation Guide
Flat Panel TV Cable Organizer Kit
Tape
Drywall Saw
Tape Measure
Phillips Head Screwdriver
Pencil
Level
Stud Finder
2
PREPARING THE WALL FOR INSTALLATION
□
Using the template supplied, trace the opening for both the top and
bottom plate on the wall. Remember, the plates are designed to be
mounted centered between the studs.
TIP: Loop a piece of tape with the sticky side outward to form a circle and
apply it to the back of the template to secure it to the wall.
3

CUT DRYWALL FOR TOP AND BOTTOM PLATES

□
With your template secured to the wall with the tape, using a drywall saw,
cut a hole in the drywall the size of each template
Item #1001863164
Model #5623-WH
CAUTION
Intended for use on 15 amp branch circuits
Not intended for use in drywall with re
walls
On outside exterior walls with insulation
push away insulation to allow proper
mounting
TEMPLATE
Rev. 12/23/2019
Scan Me
