TDC USA 21637 Assembly Instructions Manual

4 piece sofa set, steel frame with powder coating
Hide thumbs

Advertisement

Quick Links

Download this manual

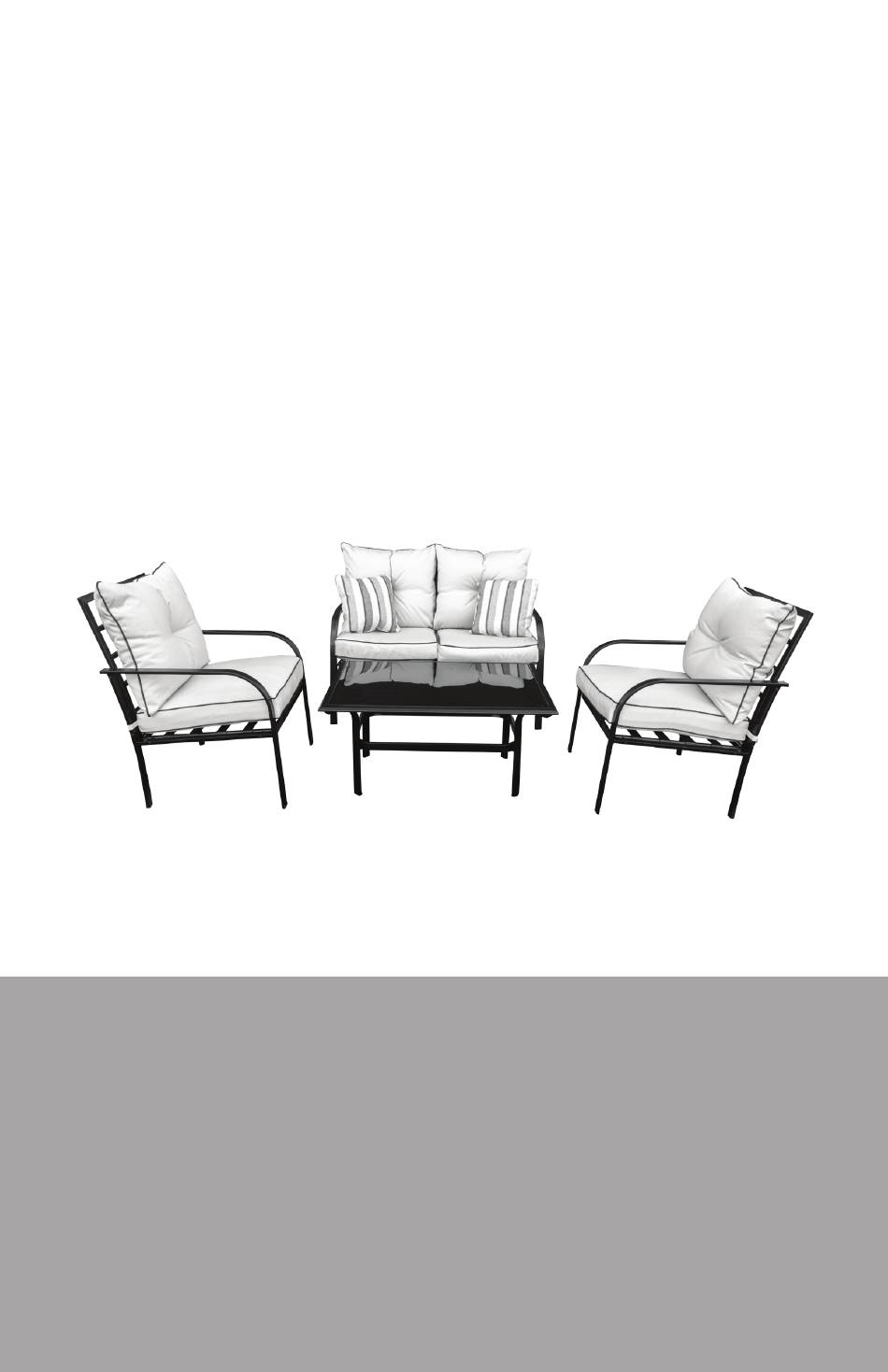

4 Piece Sofa Set
Steel Frame with Powder Coating
Assembly Instructions
Made in China
The owner's manual contains important safety information as well as assembly, use and
maintenance instructions. Keep the packaging and bags away from children and dispose
of all packaging properly before use.
Keep this manual for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 21637 and is the answer not in the manual?

Questions and answers

Related Manuals for TDC USA 21637

Summary of Contents for TDC USA 21637

  • Page 1 4 Piece Sofa Set Steel Frame with Powder Coating Assembly Instructions Made in China The owner’s manual contains important safety information as well as assembly, use and maintenance instructions. Keep the packaging and bags away from children and dispose of all packaging properly before use. Keep this manual for future reference.
  • Page 2 Please contact us at our Toll Free customer service number 1-800-599-8898 for any assistance and replacement parts. Thank You. Dist. by TDC USA, Inc. Fairfield, NJ 07004 ©2020 All Rights Reserved. Made in China Item 21637 www.tdcusainc.com...
  • Page 3 Warnings WARNING! • Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area of the product construction. • Some parts may contain sharp edges. When assembling and using this product, basic safety precautions should always be.
  • Page 4 Parts (x6) (x 2) (x 2) Arm Rest Chair Back Chair Seat (x4) (x 4) (x 2) Seat Cushion Back Cushion Throw Pillow (x36) (x 4) (x 24) Screw Cover M6x35 Screw M6x40 Screw (x36) (x 1) (x 1) Washer Sofa Seat Sofa Back (x1)
  • Page 5 Sofa Seat Instructions Step 1: Set Sofa Seat (L) down with the straps facing up. Place the bottom of Sofa Back (M) against the back end of Sofa Seat (L) to form an “L” shape. Insert two Screws M6x35 (I) through Washer (K) and then through the screw holes of Sofa Seat (L) and into Sofa Back (M).
  • Page 6 Sofa Seat Instructions Step 2: Turn the sofa seat/back just assembled upside down and place one Arm Rest (A) against it. The legs of Arm Rest (A) should be pointing away from the bottom of Sofa Seat (L). Insert two Screws M6x40 (J) through Washers (K) and then through the screw holes of Arm Rest (A) and into Sofa Back (M).
  • Page 7 Sofa Seat Instructions Step 3: Place second Arm Rest (A) on opposite side of sofa seat/back and follow the same instructions provided in Step 2. Once Arm Rest (A) is in place, tighten all loose screws completely. Place Screw Covers (H) over all screw heads. Step 4: Place Seat Cushions (E) and Back Cushions (F) in their...
  • Page 8 Table Instructions Step 1: Remove Glass (Q) from Table Rim (N). Lay Table Rim (N) upside down. Using four Screws M6x15 (S) and Washers (K), screw the Legs (O) to the Table Rim (N). Screw the Table Ring (P) onto the Legs (O) using Screws M6x25 (R) and Washers (K). Once Table Ring (P) is in place, tighten all loose screws completely.

  • Page 9: Seat Instructions

    Seat Instructions Step 1: Set Chair Seat (D) down with the straps facing up. Place the bottom of Chair Back (C) against the back end of Chair Seat (D) to form an “L” shape. Insert one Screws M6x35 (I) through Washers (K) and then through the screw hole of Chair Seat (D) and into Chair Back (C).
  • Page 10 Instructions Step 2: Turn the chair seat/back just assembled upside down and place one Arm Rest (A) against it. The legs of Arm Rest (A) should be pointing away from the bottom of Chair Seat (D). Insert two Screws M6x40 (J) through Washers (K) and then through the screw holes of Arm Rest (A) and into Chair Back (C).
  • Page 11 Instructions Step 3: Place second Arm Rest (A) on opposite side of chair seat/back and follow the same instructions provided in Step 2. Once Arm Rest (A) is in place, tighten all loose screws completely. Place Screw Covers (H) over all screw heads to hide their appearance. Step 4: Place Seat Cushions (E) and Back Cushions (F) in their designated places.
  • Page 12 4 Piece Sofa Set Steel Frame with Powder Coating Dist. by TDC USA, Inc. Fairfield, NJ 07004 ©2020 All Rights Reserved. Made in China. Item #21637 Questions and Comments 1-800-599-8898 (9 am - 5 pm EST) www.tdcusainc.com...
