Summary of Contents for LBS Dragon Power 2

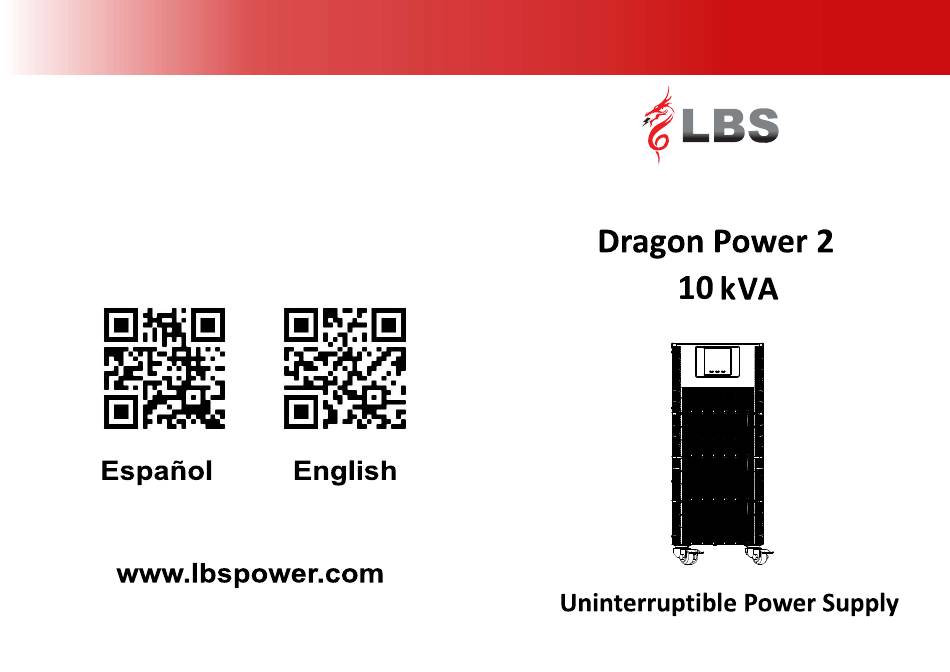

- Page 1 USER MANUAL...
- Page 2 Safety precautions Operation 1. Before using this product, please read "safety precautions" carefully to ensure correct and safe use, and please keep the manual properly. 2. During operation, please pay attention to all warning signs and operate as required. 3. Do not use the device in direct sunlight, rain or the humid environment. 4.
-
Page 3: Table Of Contents
Content 1. Introduction ............................. 1 1.1 Symbol ..........................1 1.2 Rear view ..........................2 1.3 Specification .........................3 1.4 Electromagnetic compatibility ....................4 2. Installation ............................5 2.1 Unpacking inspection ......................5 2.2 Wiring schedule ........................5 2.3 UPS connection ........................5 2.4 External battery connection of long back up type UPS ............ 6 2.5 Connection to the computer .................... -
Page 4: Introduction
1. Introduction This series of UPS is an online sine wave uninterruptible power supply system with bypass maintenance switch, which can provide reliable and high-quality AC power for your precision equipment. It can be used in a wide range, from computer equipment, communication system to industrial automatic control equipment. -
Page 5: Rear View
1.2 Rear view 6KL/10KL (ISO) 6KS/10KS (ISO) ① Computer interface ② Smart slot (optional) ③ External battery connection ④ USB port ⑤ Input breaker ⑥ Maintenance bypass breaker ⑦ Terminal block ⑧ Parallel kit (optional) ⑨ EPO ⑩ Output breaker ⑪... -
Page 6: Specification
1.3 Specification Model 10KS 10KL Capacity 6kVA/6kW 10kVA/10kW Input Nominal Voltage 208/220/230/240VAC, L1+L2+PE Voltage Range 100-300VAC Frequency 40-70Hz ＞0.99 Power Factor ≤5% (linear load); ≤8% (non-linear load) THDi Output Nominal Voltage 208/220/230/240VAC or 110/115/120VAC, L1+N1+L2+N2+PE Voltage Regulation ±1% Frequency 50/60Hz±0.1% Crest Ratio ≤... -
Page 7: Electromagnetic Compatibility
Load at high altitude=Rated power *Derating factor (corresponding to altitude) Altitude(m) 1000 1500 2000 2500 3000 3500 4000 4500 5000 Derating factor 100% Notice: If the machine is used at above 1000m, diminishing ratings output must be used, please refer to above table for derating factor. 1.4 Electromagnetic compatibility Safety IEC/EN 62040-1-1... -
Page 8: Installation
2. Installation Warning: To ensure safety, please pay attention to cut off the AC breaker before installation. The battery breaker also need to be cut off, if its a long backup time model. Caution: 1. Installation and wiring must be performed by professional personnel in accordance with local regulations. -
Page 9: External Battery Connection Of Long Back Up Type Ups
Warning: When you are connecting the wire, please make sure that the input, output wire and the input, output terminals are connected tightly. Terminals block: 6. Reinstall the cover and lock the cover with a screwdriver①. 7. After connecting the wire and AC, then put the UPS input breaker to "ON", the UPS will be powered. -
Page 10: Connection To The Computer
Warning: Please do not connect to the terminals of UPS first, otherwise you may encounter the hazardous of electric shock. 3. Connect the other end of the battery cable to the UPS, and then connect to the battery pack. The UPS does not connect any load first, and then turns the battery pack switch to "ON", then turn on AC, the UPS begins to charge. -
Page 11: Control Panel
3. Control Panel 3.1 Panel display Display Function Error message FAULT Failure occurred Warnings Fault code Mute Mute function Input and output voltage, DC voltage, UPS internal temperature VAC: input and output voltage; VDC: DC voltage ℃: UPS internal temperature; Hz: Frequency Load information The load volume(0-25%, 26%-50%, 51%-75%, 76%-100%) is shown here,... -
Page 12: Function Of Button
3.2 Function of button Button Functional Description Combo key for turning on the UPS AC Mode: press the two buttons at the same time for 1 second above to start UPS. Battery Mode: please press confirmation button first, after turning on the screen, please press the two buttons at the same time for 1 second above to start UPS. -
Page 13: Ups Working Status Table Of Lcd Display
3.4 UPS working status table of LCD display AC Mode LCD display content Instruction UPS can provide stable AC output when AC input in the permissible range. In AC Mode, batteries will also be charged by the UPS. Battery Mode LCD display content Instruction When the AC input is out of limited range or shut off, the UPS will... -
Page 14: Parameter Query
3.5 Parameter query Normally the LCD display can show 8 pages totally. Pressing the query button 0.1-2 sec can enter into the different pages which show all information, such as input, battery, output, load, software version, temperature, and etc. If alarms occur, the display will add one more page to show the alarm information. -
Page 15: Function Setting
3.6 Function setting 01: Output voltage LCD Display Setting 1. Press the function setting button over 2 sec, then go to the setting page. Press the page turning buttons till the setting page of output voltage, and the word "OPU" flashing. 2. - Page 16 02-2 Battery low voltage shutdown point/End of discharge voltage (EOD) LCD Display Setting The options of EOD setting are dEF, 9.8V, 9.9V, 10V, 10.2V, 10.5V. By default, the EOD is dEF (The EOD will be changed according to loading condition. 10.5V@load ＜25%，10.2V@25%＜load＜50%，10V@load＞...
- Page 17 02-5: Battery quantity (PCS) LCD Display Setting When EP is set to ON, the PCS option appears on the function setting page, will enter the password page, enter the password (the general password is 135), you can set the number of batteries.
-
Page 18: Warning Code/Fault Code And Solution
4. Warning code/fault code and solution 4.1 Warning code and solution " When the " symbol on the UPS LCD flashes, the UPS is in alarm state. Press the page turning key to the error state page (refer to 3.5), observe the alarm code and make appropriate processing according to the table below. -
Page 19: Fault Code And Solution
4.2 Fault code and solution " When the "FAULT" is long bright, and " symbol on the UPS LCD flashes, the UPS is in fault state. UPS automatically switches to the error status page (refer to 3.5) to observe the fault code and make appropriate processing according to the following table. - Page 20 Negative power 1. Bypass reverses to the Check the loads and if no abnormal, protection(output inverter. please contact the supplier. with AC input fail) 2. load abnormal Inv relay or SCR Relay RL8 is damaged. Please contact the supplier. open circuit Inv relay or SCR short circuit Bypass relay or...
-
Page 21: Common Faults And Trouble Shooting
4.3 Common faults and trouble shooting Number Problem or errors description Reason Solution Connect to city electricity, No input power Check if the input wiring and no display on LCD display harness of UPS is in well panel connection. Input voltage under Use voltage meter to check the voltage or overload input voltage if in normal or... -
Page 22: Control And Communication
5. Control and communication UPS includes several communication ports: RS232,EPO,SNMP card, USB, and dry contact card. NOTICE: Only one of SNMP card, and dry contact card can be used at the same time. Only one of RS232 and USB is available at the same time. 5.1 SNMP Card SNMP card is used to monitor the UPS via TCP/IP protocol, users can check the UPS status and data online. -
Page 23: Epo
5.3 EPO The remote EPO is located on the rear panel of UPS. Its normal closed, if its open, it will active EPO function, the UPS will shutdown output. -
Page 24: Battery Maintenance & Repair
6. Battery Maintenance & Repair (1) This series of UPS only needs very little maintenance. The batteries of the standard machine are seal type and no need to maintain frequently. But also keep charging to get the expected battery life. UPS keeps charging when it is connecting to AC, no matter on/off. And if also have function of over charging and overload protection.
