Smith 190445 Quick Start Manual

Setting up your deck sprayer
Hide thumbs Also See for 190445:
1
2

Advertisement

Table of Contents

1. Assemble Hose To Tank

IMPORTANT: Do not attempt to heat or alter
hose, hose nut, or barb prior to assembly.
. Align hose barb tabs, push hose barb into tank
1
until it stops (See Figure A).
2. Slide hose nut into place and turn clockwise to
tighten. (See Figure B).
NOTE: Do not use tools to tighten hose nut.
2. Assemble Wand & Nozzle
Place nozzle onto the end of the
wand assembly and tighten securely.
(See Figure C)

3. Assemble Shut-off to Wand

Screw on Wand Assembly to end of Shut-off
and tighten securely. (See Figure D)

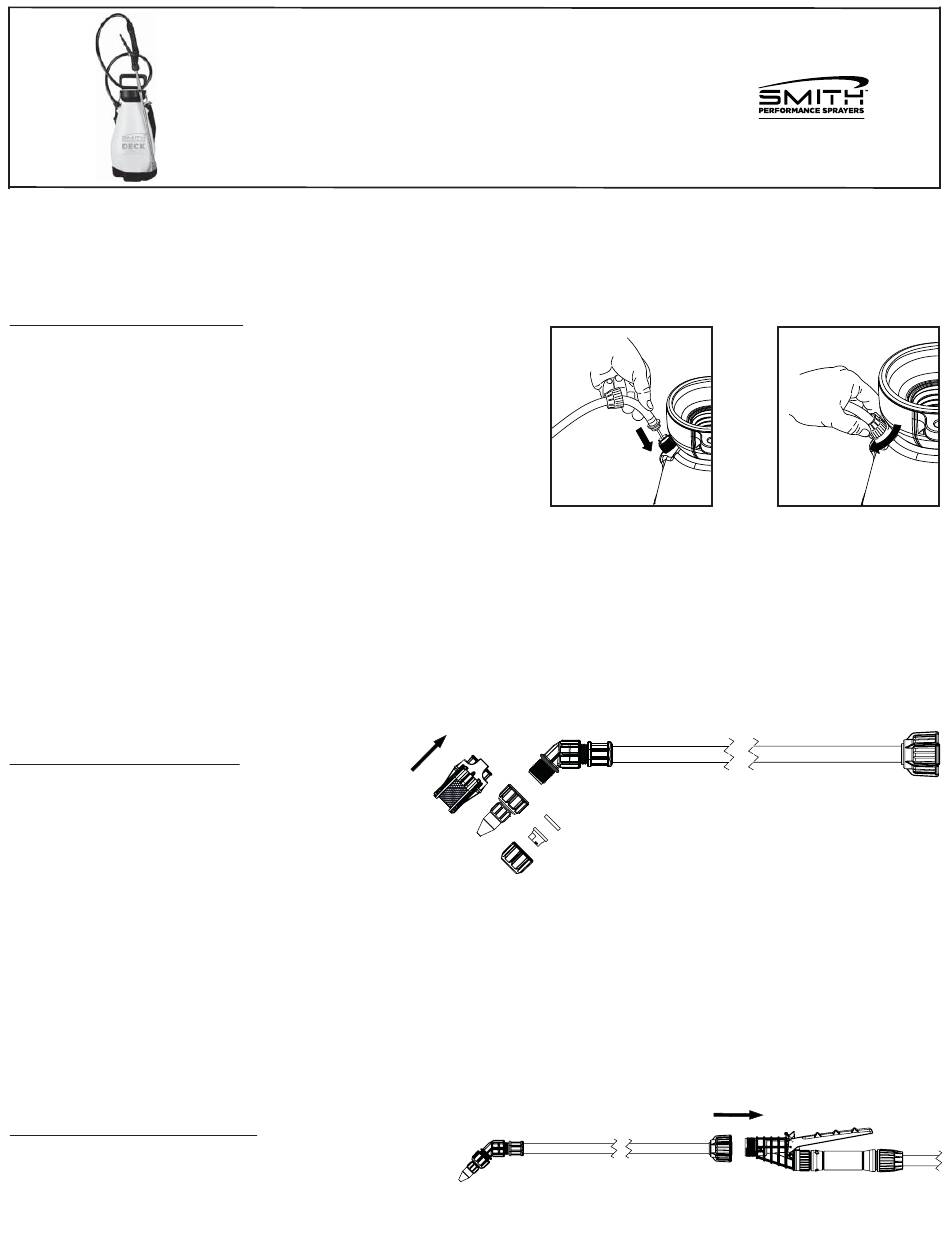

QUICK START GUIDE
SETTING UP YOUR DECK SPRAYER
190445
Figure A
Confi guration for
nozzle tip sprayers
Figure B
Figure C
Figure D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 190445 and is the answer not in the manual?

Questions and answers

Related Manuals for Smith 190445

Summary of Contents for Smith 190445

  • Page 1 QUICK START GUIDE SETTING UP YOUR DECK SPRAYER 190445 1. Assemble Hose To Tank IMPORTANT: Do not attempt to heat or alter hose, hose nut, or barb prior to assembly. . Align hose barb tabs, push hose barb into tank until it stops (See Figure A).
  • Page 2 PARTS INCLUDED WITH YOUR DECK SPRAYER 190445 181818 SHUT-OFF ASSEMBLY 182112 21” SS WAND ASSEMBLY 180097 182142 180168 181822 NOZZLE TIP NOZZLE TIP NOZZLE TIP 182187 ADJUSTABLE HIGH VOLUME MAX VOLUME LOW VOLUME HIGH FOAM NOZZLE POLY (RED) (BROWN) (YELLOW)
