Summary of Contents for Sovereign A011022

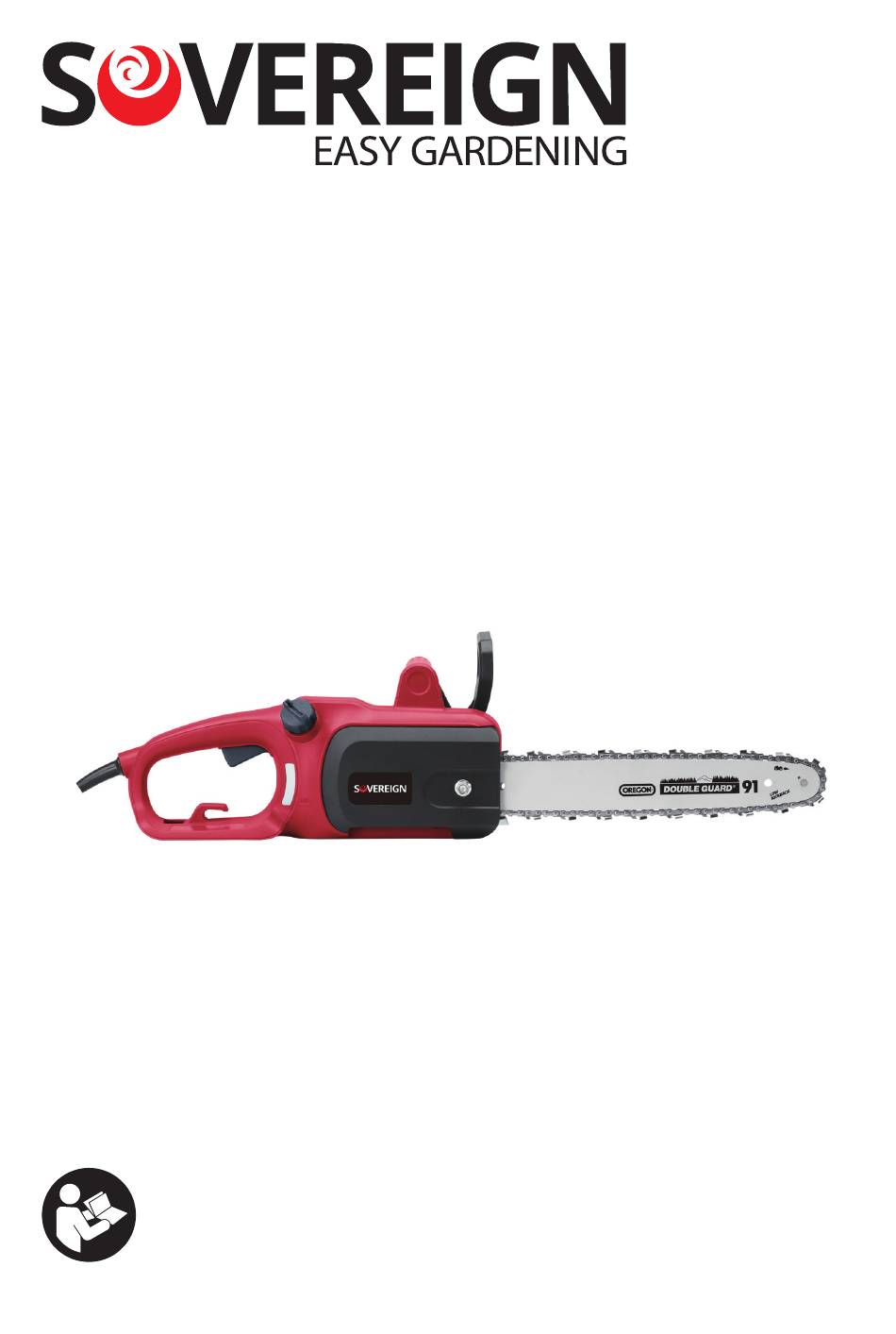

- Page 1 1800W CHAINSAW Item No. 577187 Model No. A011022 ORIGINAL INSTRUCTION MANUAL Please read these instructions fully before starting assembly. HHGL Limited, MK9 1BA. HHGL (ROI) Limited, D02 X576 Sept. 20...
-
Page 2: Table Of Contents
CONTENTS General power tool safety warnings Special safety instructions for chainsaw Symbols Parts list Intended use Assembly Operation Cleaning and maintenance Plug replacement Technical data Troubleshooting Warranty Recycling and disposal... -
Page 3: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term ‘power tool’ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 4 b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions.
- Page 5 b) Use personal protective equipment (PPE). Always wear eye protection. Protective equipment, such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the 'OFF' position before connecting to a power source and/or battery pack, picking up or carrying the tool.
- Page 6 Power Tool Use and Care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off.
-
Page 7: Special Safety Instructions For Chainsaw
g) Use the power tool, accessories and tool bits, etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. Service Have your power tool serviced by a qualified repair person using only identical replacement... - Page 8 chain is not contacting anything. A moment of inattention while operating chainsaws may cause entanglement of your clothing or body with the saw chain. · Always hold the chainsaw with your right hand on the rear handle and your left hand on the front handle.
- Page 9 chain and be whipped towards you or pull you off balance. · Carry the chainsaw by the front handle with the chainsaw switched off and away from your body. When transporting or storing the chainsaw, please always fit the guide bar cover.
- Page 10 Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator. Either of these reactions may cause you to lose control of the saw, which could result in serious personal injury. Do not rely exclusively upon the safety devices built into your saw.
- Page 11 tip contact and enables better control of the chainsaw in unexpected situations. · Only use replacement bars and chains specified by the manufacturer. Incorrect replacement bars and chains may cause chain breakage and/or kickback. · Follow the manufacturer’s sharpening and maintenance instructions for the saw chain.
- Page 12 · Check the oil level before each work session, refill if less than full. If the lubrication system does not work properly, check if the oil filter and all oil- ways are clean and free from obstructions. If it is still not working, contact an authorised service centre.
- Page 13 machine is a not intended use. Furthermore, professional use for tree services is strictly forbidden. During the use of the chainsaw, the user has to arrange for personal protective equipment according to the manual and also to the named pictograms on the chainsaw.
- Page 14 - Unforeseen, abrupt movement of the guide bar (cutting hazards) - Flung out of parts from the saw chain (Cutting/ injection hazards) - Flung out of parts of the work piece - Inhalation of work piece particles - Skin contact with the oil - Loss of hearing, if no required ear protection is used during work.
-
Page 15: Symbols
SYMBOLS IMPORTANT: Some of the following symbols may be used on your tool. Be sure to study them and learn their meaning. Proper interpretation of these symbols will allow you to use the machine more effectively and reduce the risk of an accident. - Page 16 Protect the machine from the damp and never expose it to rain. SWITCH OFF: Remove the plug from the mains before cleaning or maintenance. SWITCH OFF: Remove the plug from the mains immediately if the cable is damaged or cut. Make sure the ‘chain brake’...
- Page 17 This product is a class II tool. Recycle unwanted materials instead of disposing of them as household waste. All tools, hoses and packaging should be sorted, taken to the local recycling centre and disposed of in an environmentally safe way. Guaranteed sound power level (tested according to Directive 2000/14/EC, as amended by 2005/88/EC).
-
Page 18: Parts List
PARTS LIST 1 Front handle 12 On/off switch 2 Front guard/chain brake 13 Lock-off button 3 Saw chain 14 Rear handle 4 Guide bar 15 Power cord with plug 5 Retaining nut 16 Cable strain relief 6 End cover 17 Air vents 7 Spike bumper 18 Oil level window 8 Tensioning screw for chain... -
Page 19: Intended Use
INTENDED USE This chainsaw is designated with a rated output of 1800 Watts. The product is intended for cutting logs with a thickness of 32.6cm max. It must not be used for cutting other materials, such as plastics, stone, metal or wood that contain foreign objects. -
Page 20: Assembly
ASSEMBLY Chain Tensioning Check WARNING! Unplug the product from the power source before adjusting the saw chain tension! The cutting edges of the saw chain are sharp. Always wear protective gloves when handling the chain. NOTE: The chain and bar have already been assembled on the machine when you get it out of box. - Page 21 If a loose chain is found before use, please follow the instructions below. (If a tight chain is found before use, please do the opposite to the instructions.) First, slightly tighten the retaining nut clockwise (Fig. 3) Picture below. Do not tighten the retaining nut completely; saw chain tensioning is required first.
- Page 22 are just touching the bottom edge of the guide bar (4). Fig. 4 Turn the retaining nut clockwise to tighten the cover (6) completely (Fig. 5). Fig. 5 Lubrication WARNING! The product is not filled with oil. It is essential to fill the product with oil before using it. Never operate the product without chain oil or with an empty oil tank, as this will result in extensive damage to the product.
- Page 23 Your product is equipped with an automatic oiling system. The oiling system automatically delivers the proper amount of oil to the bar and chain. Set the product on any suitable surface with the tank cap (19) facing upwards. Unscrew and remove the tank cap (19), then add the lubricant into the tank.
-
Page 24: Operation
be suitable for outdoor use with sockets protected against water splashing. Ensure the extension cable is of the proper size and type for your product (>/= 1.5mm The extension cable must always be used with the cable strain relief. Do not use the product without an extension cable connected. - Page 25 · Working with this product is demanding, therefore, ensure you are physically and mentally fit to complete the job safely. · Ensure that you have all the accessories and tools needed for assembly and operation. · Make sure that you wear suitable personal protective equipment (PPE).
- Page 26 Chain Brake The chain brake is a safety mechanism activated by the front guard (2). When kickback occurs, the chain stops immediately. Fig. 10 Fig. 11 The chain brake (2) in the disengaged position, the product can be operated (Fig. 10). The chain brake (2) in the engaged position, the saw chain is stopped as soon as the chain brake is activated (Fig.
- Page 27 While the motor is running, activate the chain brake (2) by moving your left hand forward against the chain brake (2). The saw chain (3) and motor should stop immediately. Fig. 13 Fig. 12 NOTE: The motor will not start if the chain brake is in the engaged position.
- Page 28 Do not use the product if it is damaged or shows wear. Double check that accessories and the guide bar/saw chain are properly fixed. Always hold the product by its handle. Keep the handle dry to ensure safe support. Ensure that the air vents are always unobstructed and clear. Clean them if necessary with a soft brush.
- Page 29 use it as a leverage point while cutting (Fig. 15). Fig. 14 Fig. 15 Reset the spike bumper at a low point when cutting thicker logs by pulling the product slightly backwards until the gripping teeth release, and then reposition at a lower level to continue sawing.
- Page 30 Optimum sawing is achieved if the chain speed remains constant during cutting. Be careful when reaching the end of the cut. The weight of the product may change unexpectedly as it cuts free from the wood. This can cause accidents to the legs and feet. Always remove the product from a wood cut while the product is running.
- Page 31 Pinching of the saw chain (3) along the top of the guide bar (4) may push the guide bar rapidly back toward the operator (Fig. 21). Fig. 20 Fig. 21 Any of these reactions may cause a loss of control over the product, which could result in serious personal injury or even death.
- Page 32 Ensure the chain is sharpened correctly. Never saw above shoulder height. Never work with the tip of the guide bar. Always hold the product firmly with both hands. Always use a low kickback chain. Apply the metal gripping teeth for leverage. Ensure correct chain tension.
- Page 33 Fig. 22 Notching Undercut Make the notch (Fig. 23 B) 1/3 the diameter of the tree, perpendicular to the direction of falls (Fig. 23). Make the lower horizontal notching cut first. This will help to avoid pinching either the saw chain or the guide bar when the second notch is being made.
- Page 34 Fig. 23 When the tree begins to fall, remove the product from the cut, stop the motor, put the product down, then use the retreat path planned. Be alert for overhead limbs falling and watch your footing. Limbing is removing the branches from a fallen tree. When limbing, leave larger lower limbs to support the log off the ground.
- Page 35 important not to make the flush cut next to main limb or trunk until you have cut off the limb further out to reduce the weight. This prevents stripping the bark from the main member. WARNING! If the limbs to be pruned are above chest height, hire a professional to perform the pruning! Cutting Spring Poles...
- Page 36 Fig. 25 Fig. 26 When the log is supported on both ends (Fig. 27), cut 1/3 the diameter from the top (overbuck). Then make the finished cut by underbucking the lower 2/3 to meet the first out. Fig. 27 Fig. 28 When bucking on a slope, always stand on the uphill side of the log (Fig.
- Page 37 If the diameter is large enough for you to insert a soft bucking wedge without touching the chain, you should use the wedge to hold the cut open to prevent pinching (Fig. 30). Fig. 29 Fig. 30 After Use Switch the product off, disconnect it from the power supply and let it cool down.
-
Page 38: Cleaning And Maintenance
CLEANING AND MAINTENANCE The Golden Rules for Care WARNING! Always switch the product off, disconnect it from power supply and let the product cool down before performing inspection, maintenance and cleaning work! Keep the product clean. Remove debris from it after each use and before storage. - Page 39 NOTE: It is not necessary to remove the saw chain (3) to lubricate the sprocket nose (top of the guide bar). Lubrication can be done on the job. Using a disposable lube gun, insert the nose of the needle into the lubrication hole (Fig. 31 A) and inject grease until it appears on the outside edge of the sprocket (Fig.
- Page 40 Disassemble the guide bar and saw chain in reverse order from assembly. Check the oiling port (10) for clogging and clean if necessary to ensure proper lubrication of the guide bar and saw chain during operation. Use a soft wire small enough to insert into the oil discharge hole.
- Page 41 Fig. 32 Fig. 33 Saw Chain Sharpening NOTE: Never saw with a blunt chain. The saw chain is blunt if you have to push the product into the tree and the chips are very small. Have your chain (3) sharpened professionally at an authorised service centre or sharpen the chain yourself using a proper sharpening kit.
- Page 42 Fig. 34 Right-hand Left-hand cutter cutter Bumper tie strap Bumper drive link Tie strap Saw chain direction To sharpen the chain, proceed as follows: ·Use protective gloves. ·Ensure the chain is correctly tensioned. ·Engage the chain brake to lock the chain on the bar. Use a round file, with a diameter of 1.1 times the cutting tooth depth.
- Page 43 Keep all cutter lengths equal. Check the safety depth gauge height every 5 sharpenings. If the depth gauges are also trimmed, it is essential that the original profile is restored. Use a depth gauge measuring instrument to check the height of the depth gauge.
- Page 44 Fig. 37 Fig. 38 WARNING! Always use a saw chain designed as ‘low-kickback’ or a saw chain which meets the low- kickback requirements! A standard saw chain (a chain which does not have the kickback reducing guard links) should only be used by an experienced professional operator! Nevertheless, a low-kickback saw chain does not completely eliminate kickback! A low-kickback or ‘safety’...
- Page 45 clockwise (Fig. 3). Do not tighten the retaining nut (5) completely, saw chain tensioning is required first. Fig. 3 NOTE: The saw chain (3) has not yet been tensioned. Tension the chain as described under ‘Saw chain tensioning’. After operating the product for approximately 1 hour, adjust the chain tension again.
- Page 46 The chain life mainly depends upon sufficient lubrication and correct tensioning. Power Cord If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a safety hazard. Repair This product does not contain any part that can be repaired by the consumer.
-
Page 47: Plug Replacement
PLUG REPLACEMENT If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are coloured in accordance with the following code: Blue = Neutral / Brown = Live As the colours of the wires in the electrical cord of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows. -
Page 48: Technical Data
TECHNICAL DATA Model A011022 Rated voltage 220-240V~ 50Hz Power output 1800W Rated no load speed 7500min Guide bar length 350mm Guide bar type OREGON 140SDEA041 Saw chain type OREGON 91PJ052X Volume of oil tank 120ml Front handle ah 2.56m/s , K=1.5m/s Rear handle ah 3.90m/s... -
Page 49: Troubleshooting
TROUBLESHOOTING Suspected malfunctions are often due to causes that the users can fix themselves. Therefore, check the product using this section. In most cases, the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist if you cannot solve the problem yourself! -
Page 50: Warranty
WARRANTY This product is covered by a 1 year warranty. The warranty covers any manufacturing defect in materials, workmanship and finish. Any claim under this warranty must be made by going to your nearest Homebase store, taking your proof of purchase with you, and claims must be made within 1 year of the date of purchase.
