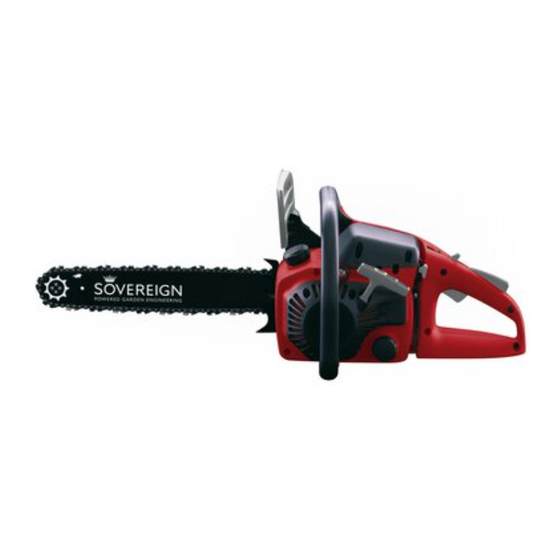

Sovereign SCS 38 Operating Instructions Manual

Petrol chain saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version
Anleitung SCS 38_SPK7:_
Operating Instructions
Petrol Chain Saw
Art-No.: 729187
20.11.2006
15:43 Uhr
Seite 1
45.014.35
I.-No.: 01016
38
SCS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCS 38 and is the answer not in the manual?

Questions and answers

Related Manuals for Sovereign SCS 38

Summary of Contents for Sovereign SCS 38

  • Page 1 Anleitung SCS 38_SPK7:_ 20.11.2006 15:43 Uhr Seite 1 Operating Instructions Petrol Chain Saw 45.014.35 Art-No.: 729187 I.-No.: 01016...
  • Page 2 Anleitung SCS 38_SPK7:_ 20.11.2006 15:43 Uhr Seite 2 Please read these instructions carefully before installing and operating the petrol motor scythe! Petrol Engine Quick Start Guide Ensure correct fuel/oil mixture 40:1 STARTING 1. add fuel and chain oil. 2. switch ignition to “I” (on) 3.
  • Page 3 Anleitung SCS 38_SPK7:_ 20.11.2006 15:43 Uhr Seite 3 General Safety Rules Read the user manual before using the Wear safety shoes to protect your feet. machine On all jobs performed with the saw you Protect yourself from saw kickback. Hold the must always wear safety goggles to chain saw securely with both hands during guard your eyes from flying...

  • Page 4: Kickback Safety Precautions

    Anleitung SCS 38_SPK7:_ 20.11.2006 15:43 Uhr Seite 4 cottagers, and campers, and for such general HOW TO READ SYMBOLS AND COLORS (FIG. 1) applications as clearing, pruning, cutting firewood, WARNING: RED Used to warn that an unsafe etc. They are not intended for prolonged use. If the procedure should not be performed.

  • Page 5: Technical Data

    Anleitung SCS 38_SPK7:_ 20.11.2006 15:43 Uhr Seite 5 BEWARE OF: TECHNICAL DATA ROTATIONAL KICKBACK THE PUSH (Fig. 2A) (PINCH KICKBACK) Engine displacement 38 cm AND PULL Maximum drive power 1,4 kW REACTIONS Cutting length 37 cm (Fig. 2B) Cutter rail length 16”...
  • Page 6 Anleitung SCS 38_SPK7:_ 20.11.2006 15:43 Uhr Seite 6 GENERAL INFORMATION (FIG. 2C) 20 CHAIN CATCHER reduces the danger of injury 1. Chain bar in the event saw chain breaks or derails during 2. Saw chain operation. The chain catcher is designed to 3.

  • Page 7: Saw Chain Tension Adjustment

    Anleitung SCS 38_SPK7:_ 20.11.2006 15:43 Uhr Seite 7 TO ADJUST SAW CHAIN: 1. Hold nose of guide bar up and turn adjustment screw (D) CLOCKWISE to increase chain tension. Turning screw COUNTERCLOCKWISE will decrease amount of tension on chain. Ensure the chain fits snugly all the way around the guide Fig.
  • Page 8 Anleitung SCS 38_SPK7:_ 20.11.2006 15:43 Uhr Seite 8 CHAIN BRAKE MECHANICAL TEST MIXING FUEL Your chain saw is equipped with a Chain brake that Mix the fuel with the enclosed mixing bottle. reduces possibility of injury due to kickback. The Pour the correct quantities of petrol and 2-stroke oil brake is activated if pressure is applied against brake into the mixing bottle (see scale printed on the...
  • Page 9 Anleitung SCS 38_SPK7:_ 20.11.2006 15:43 Uhr Seite 9 TO START ENGINE RE-STARTING A WARM ENGINE The choke has 3 positions: RUN (A), HALF (B) and 1. Make sure the switch is in the ON position. CHOKE (C) (Fig. 9A). 2. Move the choke lever to (HALF).
  • Page 10 Anleitung SCS 38_SPK7:_ 20.11.2006 15:43 Uhr Seite 10 SAW CHAIN / BAR LUBRICATION Adequate lubrication of the saw chain is essential at all times to minimize friction with the guide bar. Never starve the bar and chain of oil. Running the saw with too little oil will decrease cutting efficiency, shorten saw chain life, cause rapid dulling of chain, and cause excessive wear of bar from overheating.

  • Page 11: Felling Cut

    Anleitung SCS 38_SPK7:_ 20.11.2006 15:43 Uhr Seite 11 causes rapid dulling of the chain. WARNING: Before making the final cut, always When bucking on a slope, always stand on the uphill recheck the area for bystanders, animals or side. obstacles. 1.
  • Page 12 Anleitung SCS 38_SPK7:_ 20.11.2006 15:43 Uhr Seite 12 MAINTENANCE INSTRUCTIONS All chain saw service, other than items listed here in your user manual maintenance instructions, should be performed professional. PREVENTIVE MAINTENANCE A good preventive maintenance program of regular inspection and care will increase life and improve performance of your Talon chain saw.
  • Page 13 Anleitung SCS 38_SPK7:_ 20.11.2006 15:43 Uhr Seite 13 4. Discard the used spark arrester screen and plug. replace it with a new one (F) (Fig. 20B). 5. Pour 1 teaspoon of clean 2-cycle oil into the 5. Reassemble the silencer components and install combustion chamber.

  • Page 14: Guide Bar Maintenance

    Anleitung SCS 38_SPK7:_ 20.11.2006 15:43 Uhr Seite 14 switched off. WARNING: Wear heavy duty work gloves when handling the bar and chain. 1. Move the STOP switch down. 2. Clean the guide bar sprocket tip. Fig. 24 3. Using a Lube Gun, insert needle nose into the WARNING: A sharp chain produces well-defined lubrication hole and inject grease until it appears chips.

  • Page 15: Chain Tension

    Anleitung SCS 38_SPK7:_ 20.11.2006 15:43 Uhr Seite 15 CHAIN TENSION: Check the chain tension frequently and adjust as often as necessary to keep the chain snug on the bar, but loose enough to be pulled around by hand. BREAKING IN A NEW SAW CHAIN: A new chain and bar will need chain readjustment after as few as 5 cuts.

  • Page 16: Troubleshooting The Engine

    Anleitung SCS 38_SPK7:_ 20.11.2006 15:43 Uhr Seite 16 TROUBLESHOOTING THE ENGINE Problem Probable Cause Corrective Action Unit wonʼt start or starts but will Incorrect starting procedures. Follow instructions in the User not run. Manual. Incorrect carburetor mixture Have carburetor adjusted by an adjustment setting.
  • Page 17 Anleitung SCS 38_SPK7:_ 20.11.2006 15:43 Uhr Seite 17...
  • Page 18 ‰ËÏÒÓÂÈ ÙËÓ ·ÎfiÏÔ˘ıË Û˘Ìʈӛ· Û‡Ìʈӷ Ì Samræmisyfirl‡sing sta›festir eftirfarandi samræmi ÙËÓ √‰ËÁ›· ∂∂ Î·È Ù· ÚfiÙ˘Ô ÁÈ· ÙÔ ÚÔ˚fiÓ samkvæmt reglum Evfrópubandalagsins og stö›lum fyrir vörur Petrol chain saw SCS 38 87/404/EWG 98/37/EG R&TTED 1999/5/EG 73/23/EWG_93/68/EEC L WM = 111 dB; L WA = 113 dB...

  • Page 19: Guarantee Certificate

    Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address. Sovereign Customer Helpline: 0044 (0)151 649 1500 Technical specifications subject to change...
  • Page 20 Anleitung SCS 38_SPK7:_ 20.11.2006 15:43 Uhr Seite 20 The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of ISC GmbH. EH 11/2006...
