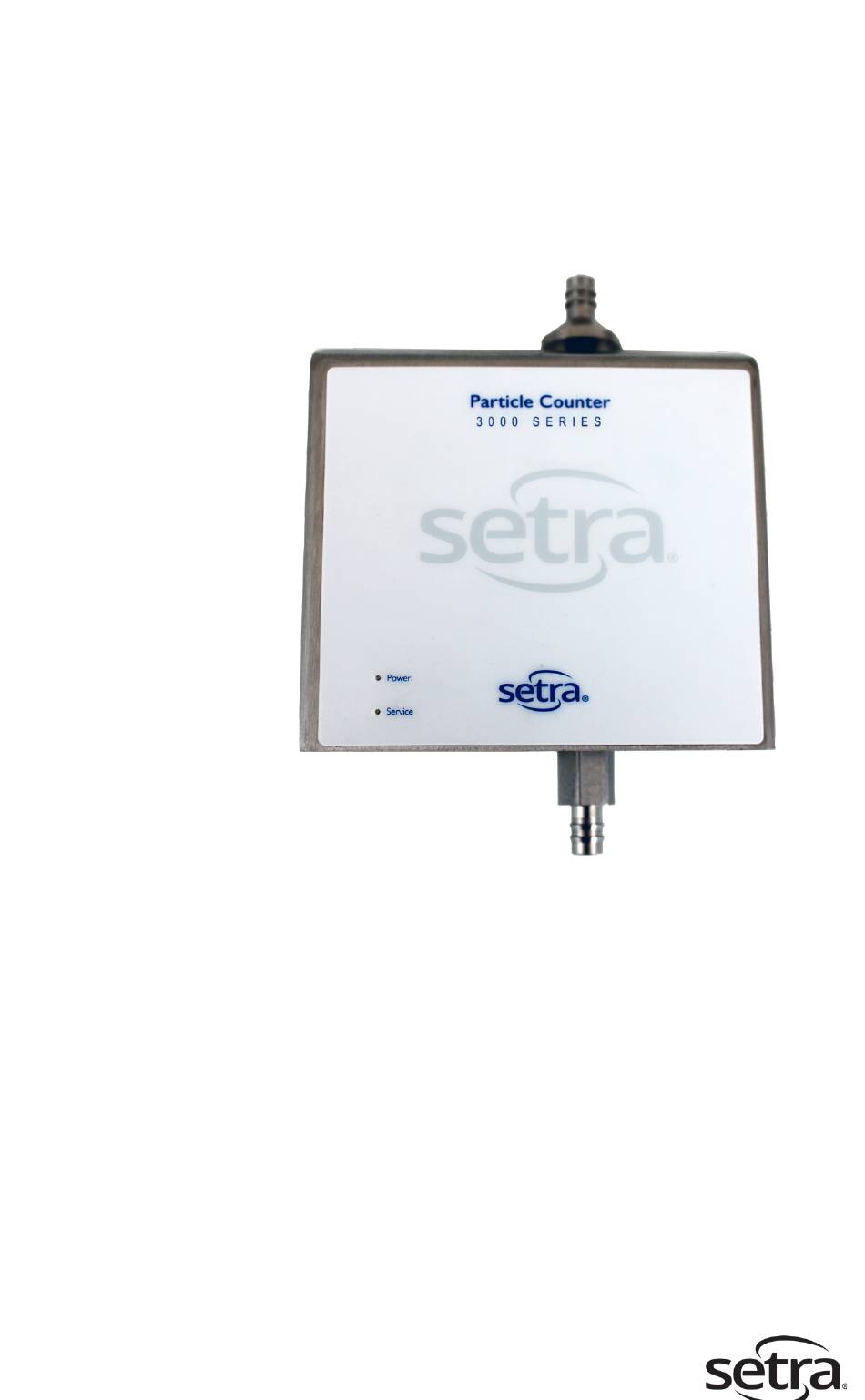

- Page 1 3000 Series User Manual Software Version 2.0.0 Setra Systems, Inc. 159 Swanson Road, Boxborough, MA 01719 800.257.3872 • www.setra.com...
-
Page 2: Table Of Contents
The material in this document is for information purposes only and is subject to change without notice. Setra Systems assumes no responsibility for any errors or for consequential damages that may result from the use or misrepresentation of any of the material in this publication. -
Page 3: Overview

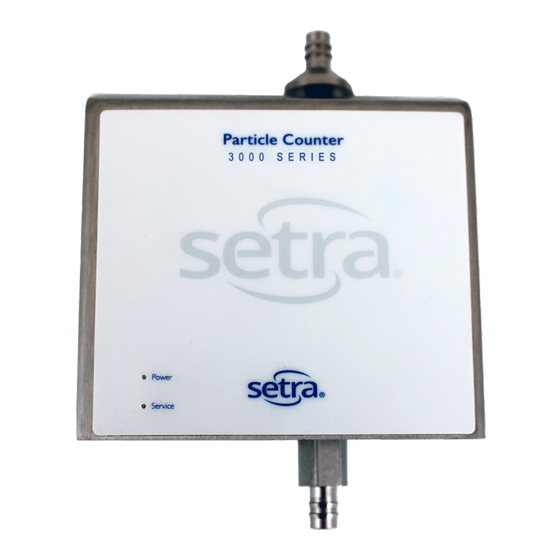

1.0 Overview Thank you for purchasing a Setra particle counter, the world’s smallest, remote particle counter sensor available for measuring and monitoring particle counts in clean room and controlled environments for the Aerospace, Life Science, Data Storage, IAQ and Industrial Hygiene Markets. -
Page 4: Included Accessories
32º to 122ºF (0º to 50ºC) / Up to 98% non-condensing Warranty 2 year limited warranty. Extended warranties available Please note that specifications are subject to change without notice. 1.2 Included Accessories Description Part Number Image Wire Connector SPC3X-AS-99086 3000 Series User Manual SPC3X-MN-24028 (USB Key – One per order) -
Page 5: Optional Accessories
1.3 Optional Accessories Description Part Number Image Isoprobe 0.1 CFM (2.83 LPM) Stainless Steel SPC3X-PS-12041 Isoprobe 1.0 CFM (28.3 LPM) Stainless Steel SPC3X-AT-2101 Purge Filter Assembly 0.1 CFM (2.83 LPM) SPC3X-AS-99002A Purge Filter Assembly 1.0 CFM (28.3 LPM) SPC3X-AS-99041A 1.4 Product Views... -
Page 6: Unpacking And Inspecting The Instrument
To store the instrument, place it in a box, under cover, in an environment as stated in our specifications. 2.4 Power considerations and connecting to AC power The Setra 3000 Series Instrument is powered from a customer provided external DC power source between 9 – 24 VDC. -
Page 7: Laser Safety Information
2.6 Laser safety information The Remote Particle Sensor is a Class 1 laser-based instrument. • During normal operation, you will not be exposed to laser radiation. • Precaution should be taken to avoid exposure to hazardous radiation in the form of intense, focused, invisible light. -
Page 8: Interpreting Indicators
3.0 Interpreting indicators LED Ring Indicator (red/green) Power Indicator (Green) Service Indicator (Red) Figure 3.0 Front panel LEDs User-settable LED Ring Green: Solid or blinking based on Modbus register value Red: Solid or blinking based on Modbus register value LED indicators Power LED Green: Solid = Power, Blinking = Counting Service LED... -
Page 9: Connections
3.1 Connections Figure 3.1 Connections on top of instrument (inlet) Figure 3.2 Connections on bottom right of instrument (vacuum connection) -
Page 10: Installation
Add a negative pressure gauge to the other end of the tube. If the pressure is more than -15 in.Hg (-50kPa) vacuum. The flow rate of a 3000 series is controlled to maintain proper flow (There is a critical orifice inside of the unit, which controls the flow rate when the negative pressure is equal to our greater than -15 in. -
Page 11: Data Port
3.3 Data port The connector on the bottom of the instrument is used to communicate with your facility monitoring system, Cleanroom Monitoring System, SCADA, or PLC. Figure 3.3 Connector Pin-outs Connector Signals VIN (9-24vdc) Isolated GND 485B 485A 3.4 Single sensor installation Figure 3.4 Illustrates how to wire the connector for a whole system Figure 3.5 Application for a signle sensor... -
Page 12: Multiple Sensor Installation
4.0 Communication protocol The remote particle sensor can be communicated with using the Modbus-RTU or Modbus- ASCII protocol. Facility/Cleanroom Monitoring software can be used as the monitoring system. If you would like to use your own monitoring system, please contact Setra Systems. -
Page 13: Maintenance/Calibration
Systems for consultation. • ISO 21501-4 states that the recommended calibration interval of an LSAPC (light scattering airborne particle counter) is one year or less. For calibration, please contact Setra Systems or an authorized distributor. • Please check the negative pressure at the tube (where it connects to the outlet of the unit) to ensure that the vacuum pump is providing enough negative pressure to the unit.
