SETRA 8000:
Operating Instructions
Warning
The Setra 8000 is a sensitive laboratory analytical instrument.
Do not connect to any compressed air or gas source that has not received an approved baseline test
from Trace Analytics. Failure to follow this procedure may damage the instrument, invalidate any tests, and
incur penalties, up to and including replacement of the instrument.
If you have questions, STOP and call Trace Analytics at 800-247-1024 ext 3.
This SETRA 8000 LPC and accessories are the Property of Trace Analytics, LLC
15768 Hamilton Pool Rd. Austin, TX 78738 • (p) 512-263-0000 • (f) 512-263-0002 • www.AirCheckLab.com
©2019 Trace Analytics, LLC. All rights reserved.
the AirCheck Lab
the AirCheck Lab
LLC
™
Version 1 - 05/08/2019
•
Page 1 of 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Setra Systems 8000

Summary of Contents for Setra Systems 8000

  • Page 1 If you have questions, STOP and call Trace Analytics at 800-247-1024 ext 3. This SETRA 8000 LPC and accessories are the Property of Trace Analytics, LLC 15768 Hamilton Pool Rd. Austin, TX 78738 • (p) 512-263-0000 • (f) 512-263-0002 • www.AirCheckLab.com ©2019 Trace Analytics, LLC.

  • Page 2: Inventory List

    Please carefully check the inventory list below. If any items are missing, STOP and call Trace Analytics at 800-247-1024 before proceeding. If any items are missing, If any items are missing, SETRA 8000 Laser Particle Counter Clear Particle Free Tubing High Pressure Diffuser Pressure Gauge...

  • Page 3: Quick Notes

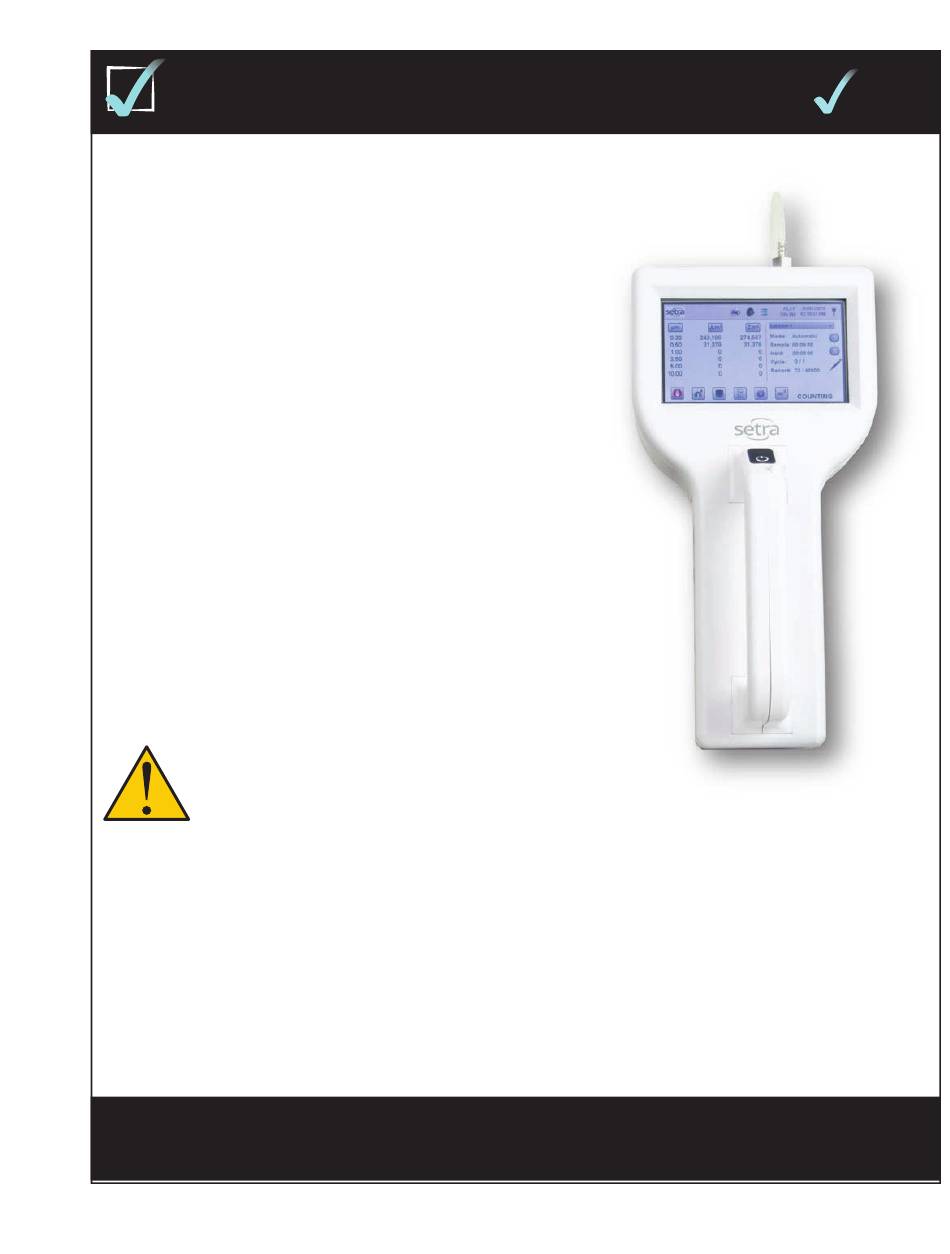

    1. Connect the SETRA 8000 to power adaptor and appropriate power source 2. Plug in the USB Thumb Drive to the SETRA 8000 3. Turn on the SETRA 8000 by pressing the black power button for 2 seconds Start/Stop Icons...
  • Page 4 14. Depressurize the line. Remove silver tubing background filter from point-of-use, replace black and silver cap and return to case. Silver Background Filter High Pressure Diffuser SETRA 8000 LPC ©2019 Trace Analytics, LLC. All rights reserved. Page 4 of 9...

  • Page 5: Data Reporting

    Location Sampling 1. Once tubing background filter is removed, attach black Bev-a-line tubing to the sampling point. 2. Enter sample information (date, time stamp, location) on Log Sheet. 3. Open sampling point valve to begin air flow (DO NOT EXCEED 100PSI). 4.
  • Page 6 Disassembly 1. To turn off LPC, press and hold black power button for 5 seconds until machine turns off. Pressing and immediately releasing the button will begin a new sample. This could harm the machine if done after silver isokenetic probe is reattached. silver isokenetic probe onto top of LPC .

  • Page 7: Error Conditions

    Error Conditions The Setra 8000 will indicate if it detects an operating condition that may prevent it from giving an accurate analysis. If at any time during sampling, or testing this red warning sign appears. Stop testing immediately and contact Trace Analytics for assistance before proceding.
  • Page 8 Detecting and Correcting Sampling Equipment Contamination Avoiding contamination from the environment 1. Keep the fittings (tubing plugs and device caps) in place when not sampling. 2. Keep the plugs and caps in a closed zip bag during sampling. Do not allow ambient particulate to accumu- late on the fittings.
  • Page 9 2. With a length of clean ¼” Bev-a-line black tubing to the Matheson filter on the gas source, purge at up to 100 psig for as long as 10 minutes. Setra 8000 Laser Particle Counter (LPC) NEVER ATTEMPT TO CLEAN THE LPC! Introduction of any liquid into the LPC will cause it to be inoperable and may cause irreparable damage to the sensing cell.
