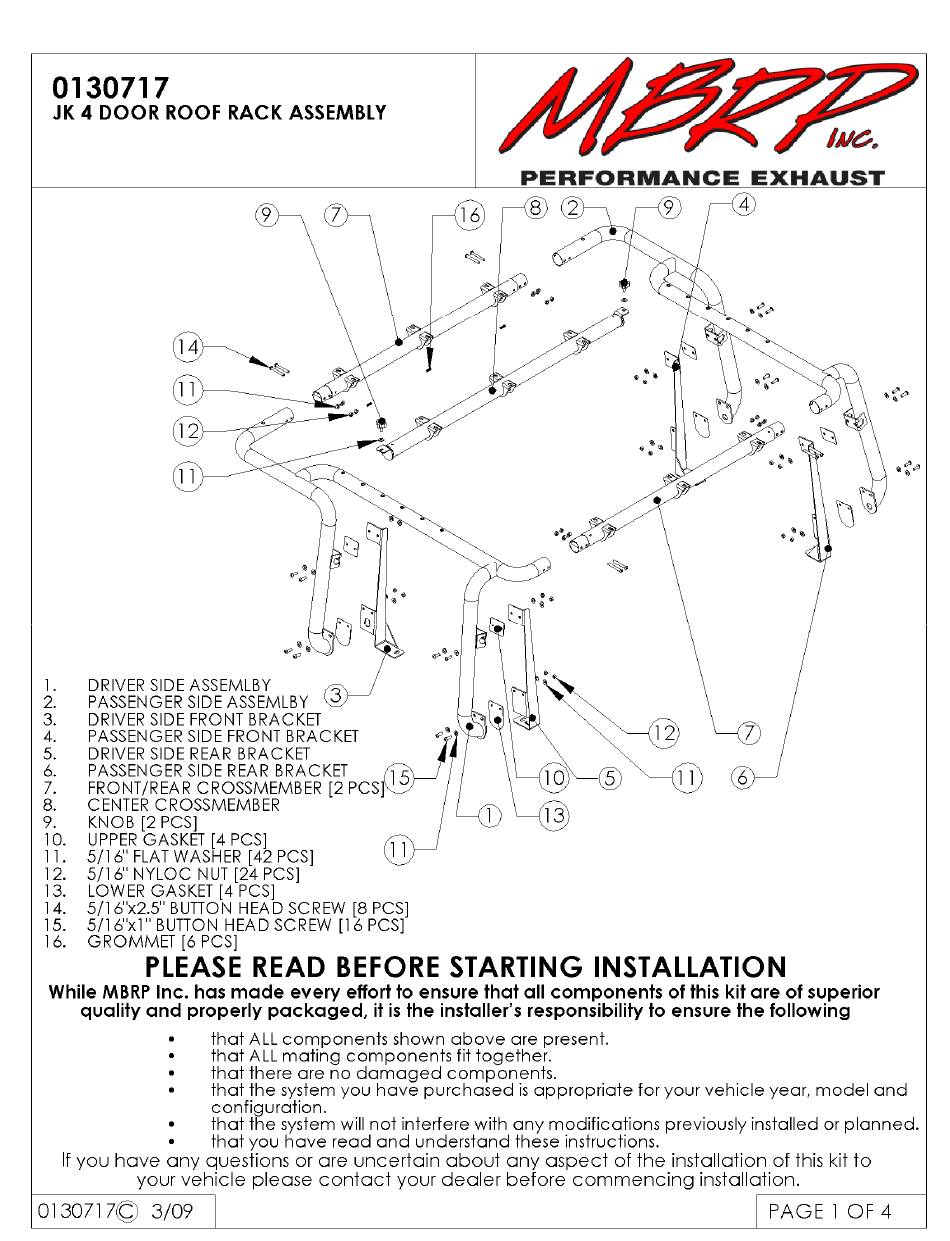

MBRP 0130717 Assembly

Table of Contents

Need help?

Do you have a question about the 0130717 and is the answer not in the manual?

Page 2 BEFORE YOU DRILL ANY HOLES The inner brackets are flexible and have provisions for adjustment within reason. If your brackets will not line up with the template, please contact MBRP Inc. before continuing. 4. Once you have verified that the mounting holes will line up correctly, remove the inner brackets and use a 3/8”...
Page 3 7. Lift the Driver Side Assembly into position on the side of the hardtop. Line up the holes and slide the 5/16”x1” Button Head Screws through the hard top, through the holes in the Inner Brackets, and secure using the supplied 5/16”...
Page 4 0130717 03/09 Page 3 of 4...
Page 5 11. Tighten all fasteners. Be careful to not over tighten, damage to the finish may result. Figure 9 MBRP Inc MBRP Inc. MBRP Inc MBRP Inc Congratulations! You are finished. Thank you for purchasing an Product. 0130717 03/09 Page 4 of 4...
