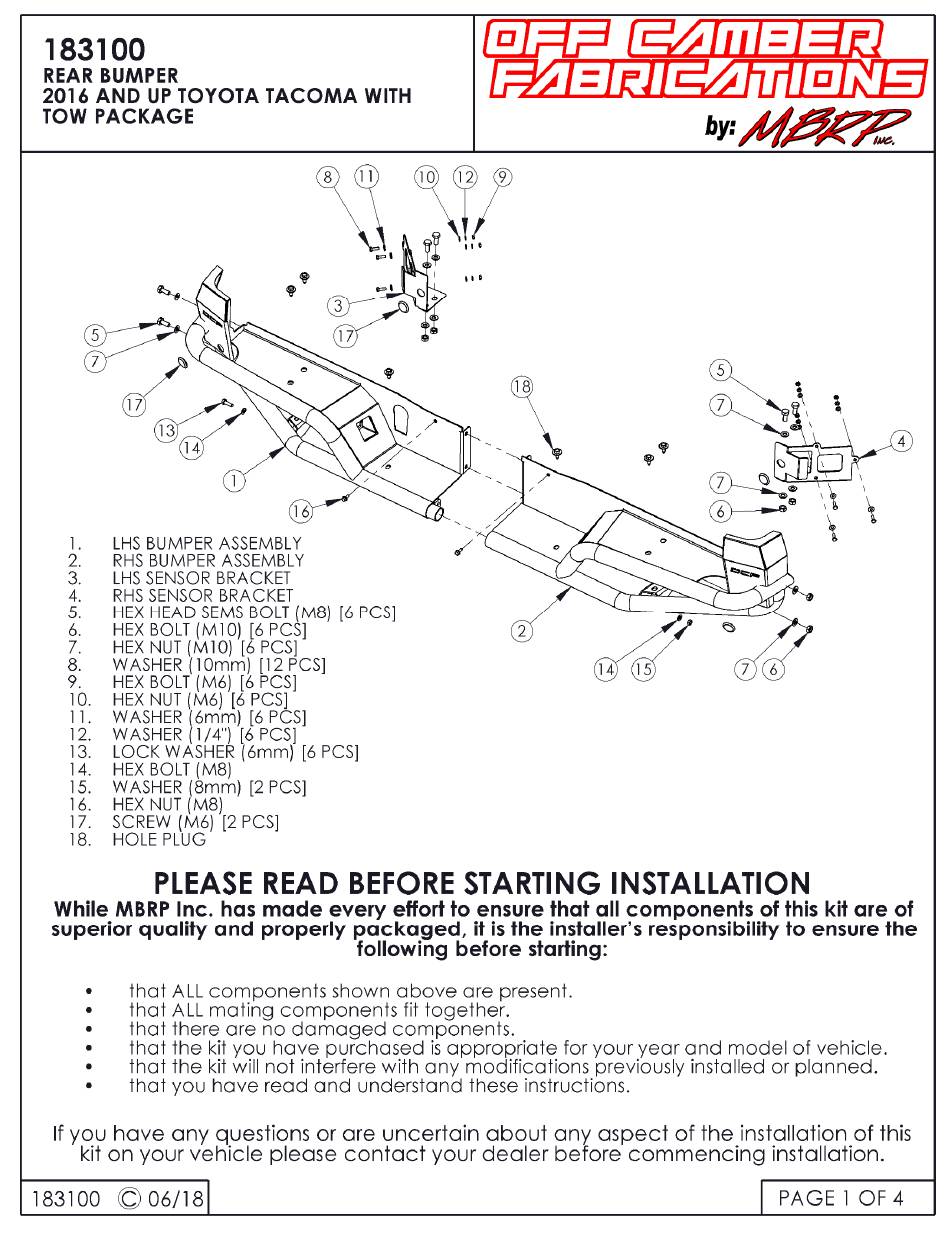

MBRP Off Camber Fabrications 183100 Instructions

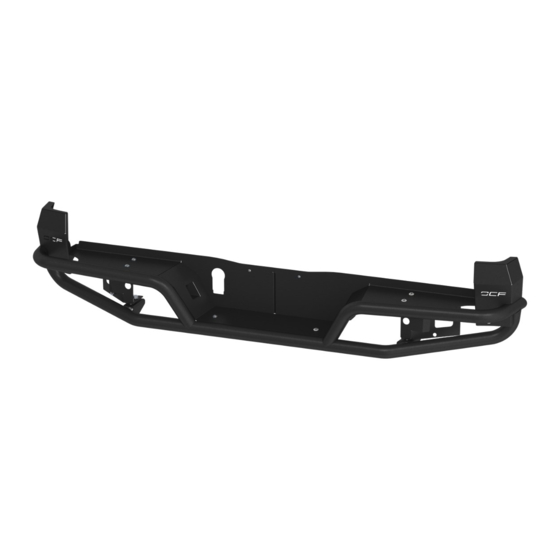

Rear bumper 2016 and up toyota tacoma with tow package
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Off Camber Fabrications 183100 and is the answer not in the manual?

Questions and answers

Related Manuals for MBRP Off Camber Fabrications 183100

Summary of Contents for MBRP Off Camber Fabrications 183100

  • Page 2 REMOVAL OF STOCK REAR BUMPER the hitch structure to the vehicle frame rails. Refer to Figure 1. Disconnect the main harness and the trailer wiring connection Figure 1 from the rear bumper. Remove the rear bumper from the vehicle by working the locating pins on the structure mounting brackets out through the positioning slots of the frame rails.
  • Page 3 3. Place the assembled bumper onto the hitch structure and align the holes in the top plate to the threaded holes of the structure, then thread the Hex Head SEMS Bolts into each hole. Refer to Figure 7. Figure 6 4.
  • Page 4 13. Finally, use the M6 Screws to mount your license plate. Figure 11 14. Install two (2) M10 Hex Bolts with 10mm Washers (4) and M10 Hex Nuts (2) through the holes of the lower flange on the hitch structure and the LHS Bumper Assembly bracket. Repeat this step for the RHS Bumper Assembly, and tighten the fasteners.
